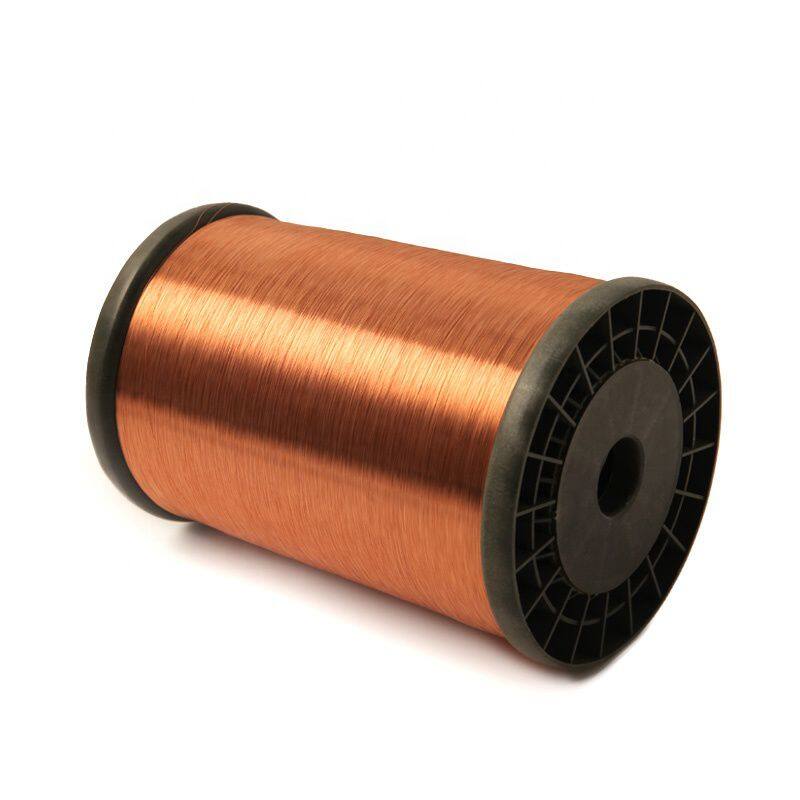

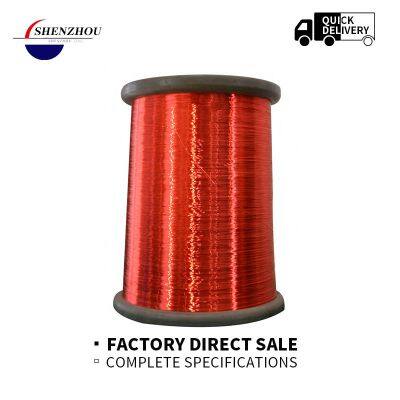

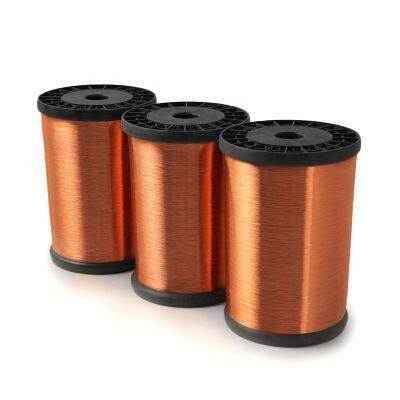

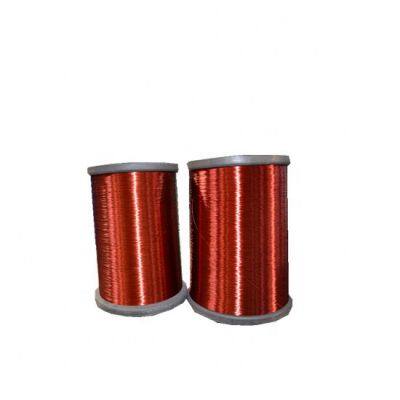

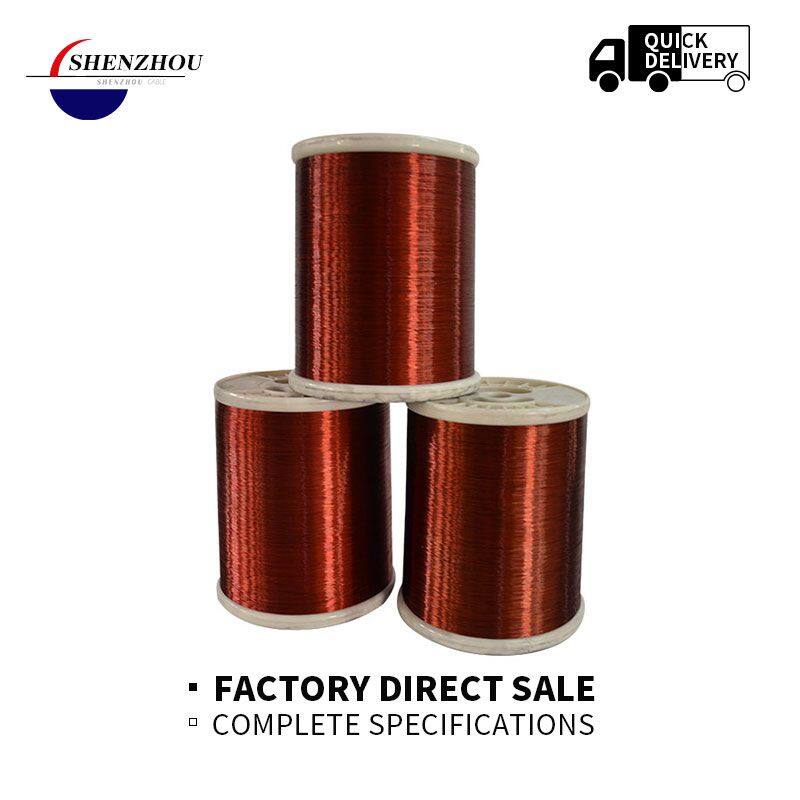

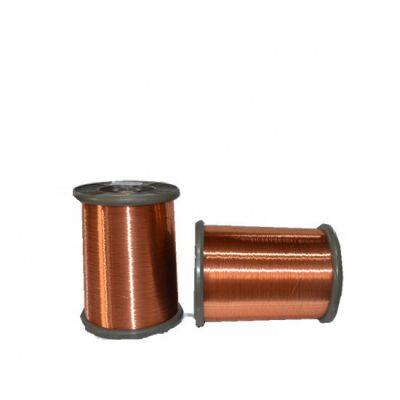

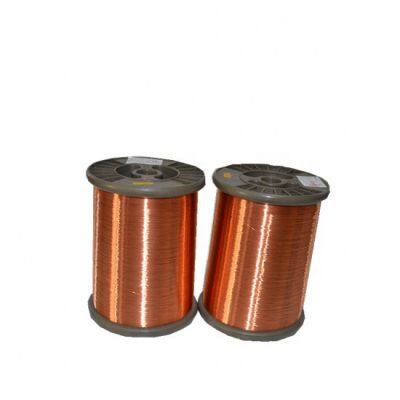

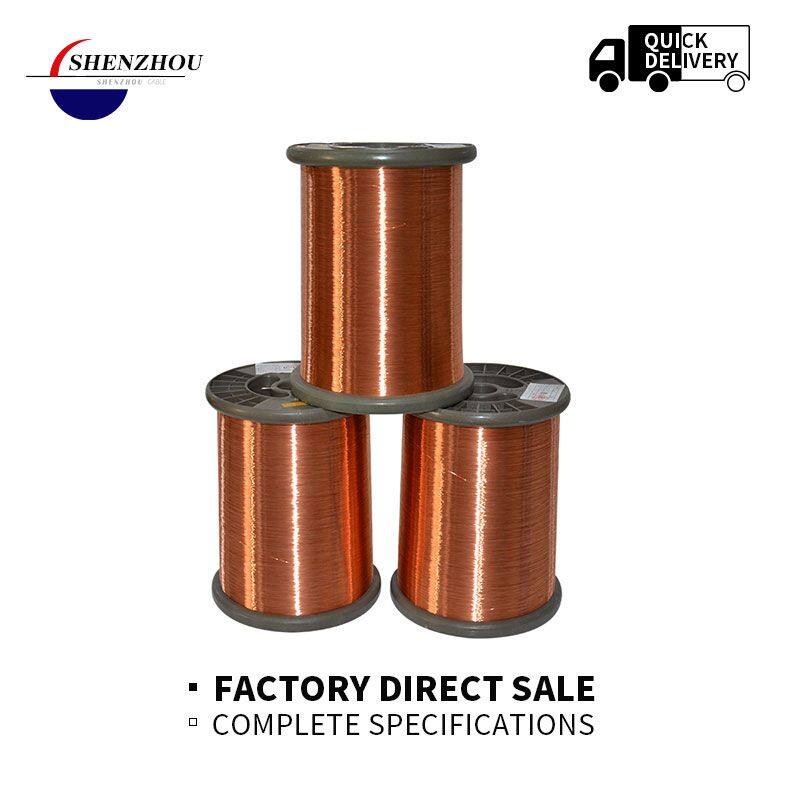

Enameled Copper Wire UEW(polyurethane) 1.20-3.00mm CLASS F (155)

Enameled copper wire
Use pure copper wire as conductor , and covered with insulating material(such as UE, PE,EI,AI) in high temperature oven. Enameled copper wire has the characteristic of high break down voltage and high strength.

Advantage of enamel copper wire
a) Conductors have good ductility when winding
b) Good electrical conductivity
C) High strength with tensile strength of 250MP-280MP

SIZE: 0.10-5.00mm(Diameter)
Conductor: Copper(>99.97% pure)
Thermal Class: 130/155/180/200/220 centigrade
Enamel thickness: GRADE1,2,3
Coating:UE, PE,EI,AI,SELFBONDING, QA,QZ,QZY,QXY,N

Packing:
Plastic Spool: PT-4,PT-10,PT-15,PT- 25,PT- 35,PT-45,PT-60,PT-90,PT-200,PT-250,PT-270
WOOD SPOOLD: D400

Enamel coating process:
The enamels are based on polyurethane wire enamel,having a high cut through temp, very good solderability, and excellent Pin hole performance, can be used as a single coat or coated with aliphatic nylon enamel.

Characteristic :
1-Soldering:
Polyurethane enamel wire can be directly soldered. The most outstanding characteristic of this wire is the possibilty to have the efficient and safe contact of the wire ends by fast and easy solderability with a solder pot with temperature from 360-450 °C without prior mechanical removal of the insulation film. This type of enamelled wire fulfills the requirements of modern high speed winding technology with large quantity and high speed output product.

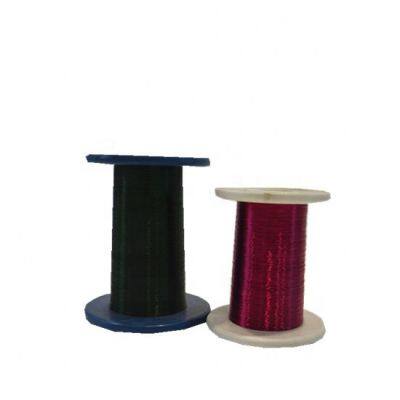

2-Polyurethane enamel wire Can apply to different colors
Color application: RED, BLACK, BLUE, GREEN, GOLDEN, YELLOW,SILVER

3-Low dielectric loss at high frequency;
For this Characteristic, the Polyurethane enamel wire are widely used in high frequency electrical appliances, such as high frequency inductor, high frequency transformer.

Working temperature:
Normal 130-180 degree
Special application: 200 degree

Soldering temperature: 360-450 Centigrade

Suzhou Wujiang Shenzhou Bimetallic Cable Co., Ltd. parent company is located in Qidu Town,which is well known as the cable capital in China. Our company was set up in 2005, and now is the largest enameled copper clad aluminum wire production enterprise. The main products are enameled copper clad aluminum wire, enameled aluminum wire and copper clad aluminum wire. Enameled wire specifications include polyurethane (QA/UEW), (130,155,180) polyester QZ/PEW, class 180 polyester imide QZY/EIW, 200 grade polyamide-imide compound polyester imide QZY/XY/EI/AIW. At present, we are supplying size from 0.100 mm – 4.60 mm. Products are widely used in various types of electronics, (air conditioners, refrigerators, washing machines, electric tools) motor, large, medium and small transformer, electromagnetic induction coil, the motor of the car, charger, ballast, relays, etc. products. Strict quality control and long-term stable supply of products is the cornerstone of SHENZHOU's long-term stable development.
