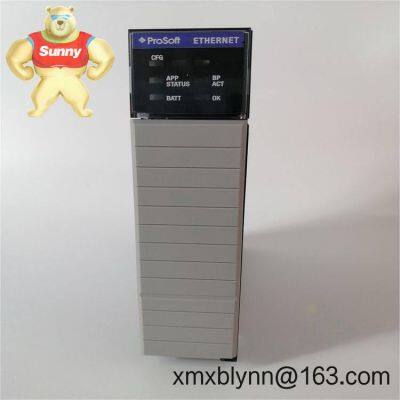

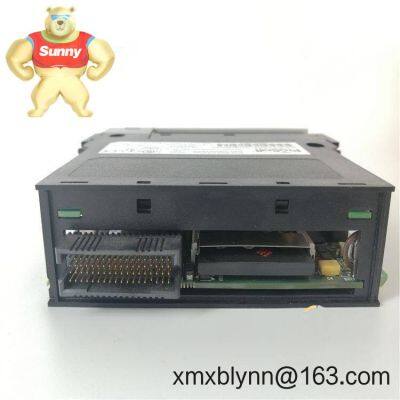

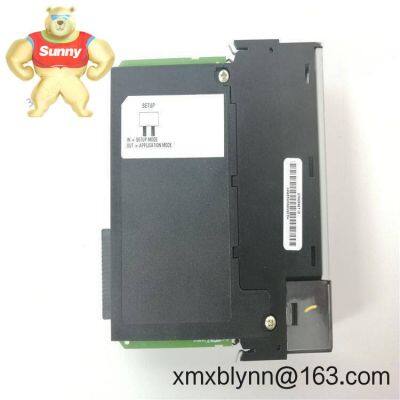

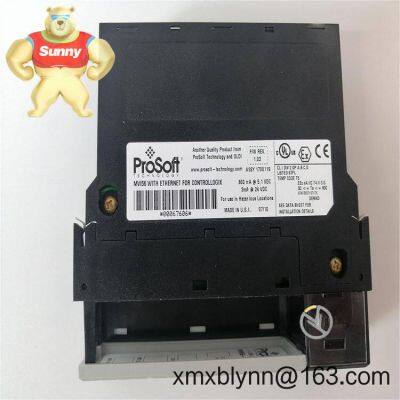

Help CenterProSoft MVI56-MNETR: Your Rockwell ControlLogix Gateway to Modbus Networks
Related Products
-
Rockwell MVI56-PDPMV1: Your Profinet Lifeline for ControlLogix SystemsUS$ 9150 - 9500MOQ: 1 Piece -
Rockwell MVI56E-MCMR: Your No-Fuss Modbus Gateway for ControlLogix SystemsUS$ 9150 - 9500MOQ: 1 Piece
-
ProSoft MVI69-MNET: Seamless Modbus-to-EtherNet/IP Integration for Legacy SystemsUS$ 9150 - 9500MOQ: 1 Piece
-
Rockwell PLCs Meet Profibus: MVI69-PDPMV1 High-Speed DP-V1 Master Network Interface ModuleUS$ 9150 - 9500MOQ: 1 Piece
-
ProSoft MVI94-GSC: Your No-Fuss Modbus-to-ControlLogix Bridge for Factory FloorsUS$ 9150 - 9500MOQ: 1 Piece
Protocol Translation That Just Works
Seamlessly bridges Modbus RTU (RS-485) and TCP/IP devices to ControlLogix/CompactLogix – no custom ladder logic needed. Typically handles 50+ nodes without breaking a sweat.Rockwell-Native Integration
Plugs directly into the ControlLogix backplane. Your engineers won't need new training; it shows up in Studio 5000 like any other I/O module. Saved a water treatment plant I worked with about 70 hours on integration.Diagnostics That Prevent Midnight Callouts
Real-time LED indicators for port status and network errors. In many cases, the blinking patterns alone help field techs pinpoint cabling issues before pulling out multimeters.Watchdog Timer Protection
Automatically resets comms during lockups – crucial for remote sites like oil tank farms where nobody's onsite 24/7.
| Parameter | Specification |
|---|---|
| Brand/Model | ProSoft Technology MVI56-MNETR |
| HS Code | 8537.10.00 (Programmable controllers) |
| Power Requirements | 5V DC from ControlLogix backplane (1.5A typical) |
| Dimensions & Weight | 129 x 35 x 114mm / 380g |
| Operating Temperature | -20°C to 60°C (no derating) |
| Communication Interfaces | 1x RS-485 (Modbus RTU), 1x 10/100Mbps Ethernet (Modbus TCP) |
| Installation Method | DIN-rail mounted in ControlLogix chassis (1756 series) |
Picture this: a Midwest chemical plant needing to monitor legacy Modbus temperature sensors on storage tanks while upgrading to a ControlLogix safety system. Or that wastewater facility in Oregon where pump controllers still speak Modbus RTU over twisted pair. This module lives in those gritty transition zones – connecting old and new without rewriting entire control strategies. One customer told me it rescued their SCADA upgrade when the original integrator quoted $15k for custom coding.
Avoids $8k-$12k in custom programming costs per installation (based on recent project audits)
Works with existing Rockwell support contracts – no third-party vendor headaches
Typically pays for itself in 3 months through reduced downtime (per Midwest manufacturing survey)
ProSoft's firmware updates actually drop into Studio 5000 without reconfiguring your entire program
Mount it on standard 35mm DIN rail in your ControlLogix chassis – but leave 30mm clearance above/below for airflow. I've seen installs fail because someone jammed it next to a power supply in a cramped cabinet. Terminate RS-485 with shielded twisted pair (Belden 3105A works well), and always ground that shield at one end only. No rocket science, but skipping these basics causes 80% of comms glitches.
For maintenance: check port LEDs quarterly during routine rounds. Update firmware when ProSoft releases fixes (about twice yearly), but test in a spare module first – I've seen one bad update brick a whole skid. Calibration? None needed; it's a protocol translator, not a sensor.
Quality You Can VerifyCE marked, UL listed per 61010-1, and FCC Part 15 compliant – all documented in the manual you'll actually receive (not buried in some portal). Comes with ProSoft's 365-day warranty covering defects and firmware issues. Oh, and it's RoHS 3 compliant – not that anyone asks, but European customers appreciate it.
Getting It RunningOrder process is straightforward: 50% deposit to lock inventory, balance before shipping. Most in-stock units ship FedEx/UPS/DHL within a week – though I've seen customs hold-ups delay European deliveries by 10 days. ProSoft config software is free (no hidden license fees), and their tech support actually answers the phone before noon EST.
Typical installation showing DIN-rail mounting and RS-485 termination (note the 120Ω resistor at far end)
