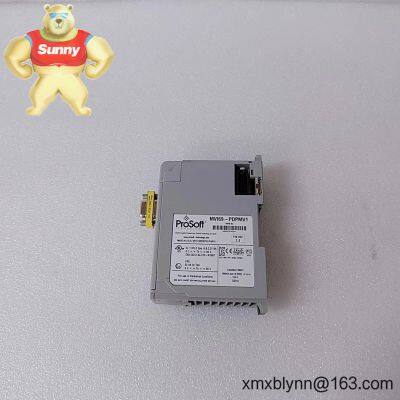

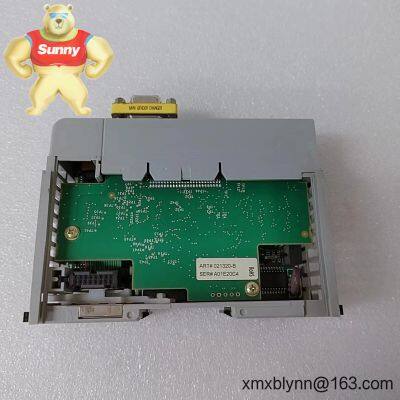

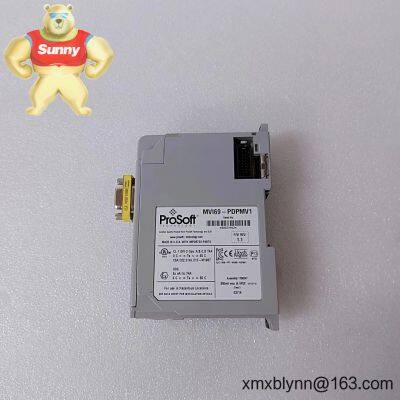

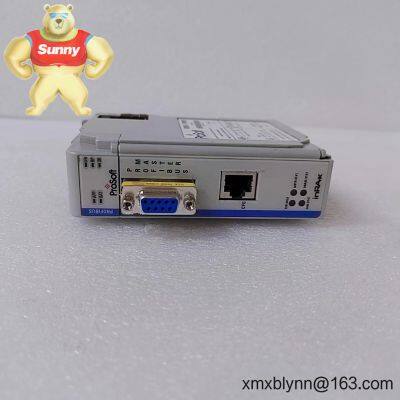

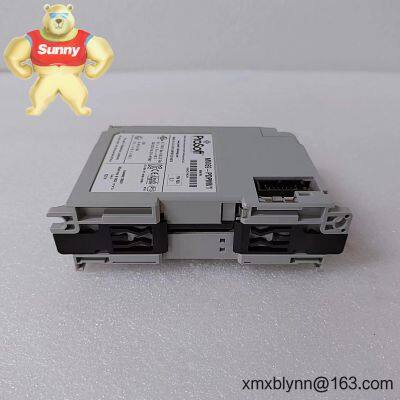

Rockwell PLCs Meet Profibus: MVI69-PDPMV1 High-Speed DP-V1 Master Network Interface Module

• Seamless Rockwell Integration – Plugs straight into ControlLogix/CompactLogix chassis (1756 or 1769 series), appearing as a native I/O module in Studio 5000. No separate programming software needed.

• True DP-V1 Master Capabilities – Handles acyclic messaging and diagnostics for Profibus slaves like VFDs or valve controllers. In many cases, this eliminates those frustrating "unknown device" errors during maintenance.

• Hot-Swap Ready – Replace failed modules without shutting down your entire rack. A Midwest auto plant recently told us this cut their changeover downtime by nearly 40%.

• Real-Time Diagnostics – LED indicators show network status at a glance (green = healthy, amber = diagnostics active). You might notice the error logs help pinpoint cable faults faster than sniffing traffic.

Food processing facilities often use this to connect legacy temperature controllers on filling lines – the DP-V1 diagnostics help them catch failing sensors before batch contamination occurs. I've seen water treatment plants deploy it for pump VFD integration where Modbus just wasn't cutting it for real-time torque monitoring. While not ideal for ultra-high-speed motion control, it handles most process automation scenarios where you've got a mix of Siemens drives and Rockwell PLCs.

It's rarely the cheapest Profibus solution upfront, but the long-term value usually wins out. Compatibility with existing Rockwell tools means your maintenance crew isn't waiting for specialty programmers. The 365-day warranty gives breathing room for commissioning hiccups, and ProSoft's firmware updates (delivered free for 5+ years) keep it relevant as networks evolve. One plant manager told me the real savings came from avoiding custom gateway programming – he recouped the cost in under three months of reduced downtime.

Mount it in a standard 1756-A4 or 1769-BA chassis with proper ventilation – I've seen failures when engineers cram it next to 480V drives without spacing. Terminate that Profibus cable with 120Ω resistors at both ends; skip this and you'll chase intermittent comms issues. For maintenance, clean the backplane contacts annually and check firmware via ProSoft Configuration Suite (free download). While calibration isn't needed, verify network statistics quarterly – look for rising "retransmit" counts as early cable degradation signs.

CE marked per EN 61131-2, UL 61131-2 certified for industrial control equipment, and RoHS compliant – all documented in the manual. The 365-day warranty covers defects in materials/workmanship, though it won't fix damage from improper termination (seen that too many times). Most clients appreciate that ProSoft provides direct engineering support – no call center runaround when you're troubleshooting at 2 AM.

In-stock units ship within 1 week via FedEx/UPS/DHL (your choice). We require 50% advance payment to lock pricing – full payment clears before dispatch. For custom-configured units, expect up to 4 weeks, though 90% ship in 20 days. No hidden fees; what you quote is what you pay.
