Low Power Consumption Submersible Level Sensor With 433Mhz LORA Communication Open API Secondary Development Support

The product overview：

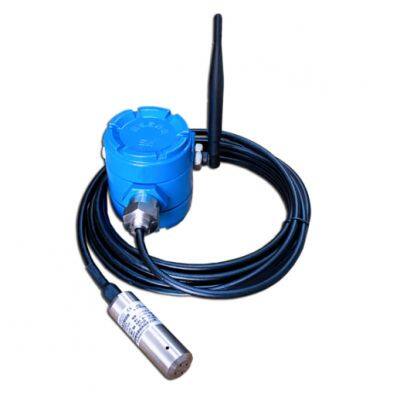

DAQ-LP-TLLLORA is a mid-range submersible liquid level wireless transmitter that uses high-precision piezoresistive oil-filled pressure measurement elements. Through intelligent digital compensation and correction technology, it converts pressure values to liquid depth and transmits wirelessly via 433MhzLORA spread spectrum communication, providing users with multiple receiver options. Build a variety of wireless data acquisition models to quickly realize wire-free sensor network solutions.

Core Features：
Compared to WIFI , LORA wireless has lower power consumption and better wall transmission performance
Compared to 2G/4G/NB, LORA wireless is less power-consuming and does not require a data card
Group number, serial number, channel, upload cycle and other parameters can be set flexibly
It comes with a variety of receivers, an open API interface, and supports secondary development

20S and 60S are measured data (8500mAh battery maximum transmission power, airspeed 10kbps, at room temperature),and the rest are theoretical estimates. The sampling rate is directly related to battery life. lt is recommended to set it reasonably, and users can also choose the 19000mah battery version, which can increase the battery life by more than double.

Application field:
Fluids that do not corrode 316L stainless steel and fluororubber
Industrial water for water tanks, water towers, etc.
Hydrological probing of the ocean, river channels, groundwater levels, etc.
