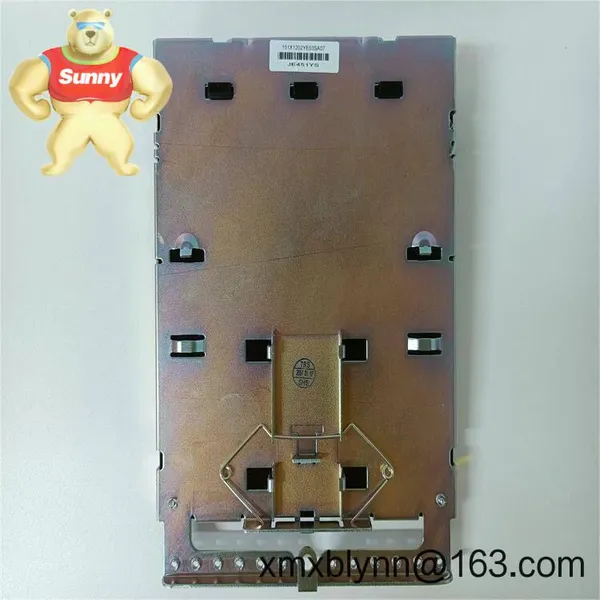

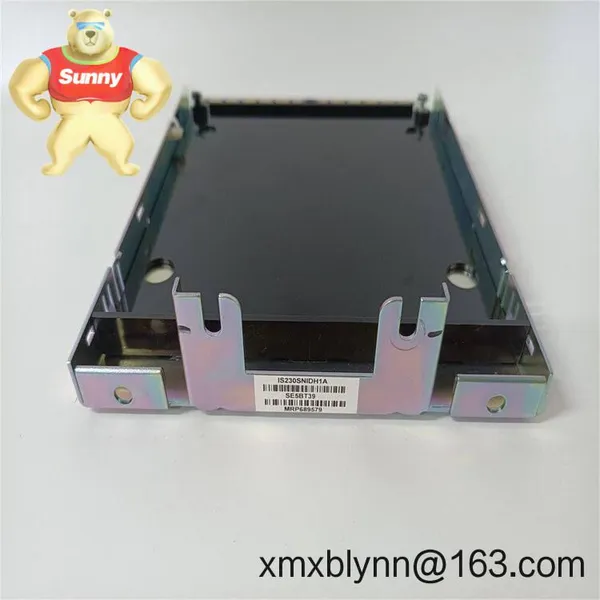

Help CenterGE IS230SNIDH1A: Your Reliable Digital Isolation Workhorse for Turbine Control Systems
Related Products
-
GE IS230STAOH2A: Precision Analog Output for Critical Turbine ControlUS$ 2300.00MOQ: 1 Blade -
GE IS230TBAIH2C: Your Reliable Analog Input Workhorse for Turbine ControlUS$ 2300.00MOQ: 1 Blade
-
GE IS230TCISH6C: Your DIN Rail Workhorse for Critical I/O in Turbine ControlUS$ 2300.00MOQ: 1 Blade
-
GE IS230TDBTH6A: Your Workhorse Digital I/O Terminal Board for Turbine Control SystemsUS$ 2300.00MOQ: 1 Blade
-
GE IS230TVBAH2A Voltage Feedback Control Module: Precision Power Regulation for Turbine SystemsUS$ 2300.00MOQ: 1 Blade
Opto-isolation that actually works – Keeps 24VDC signals clean even when your generator hall hits 70°C. Saw a Texas plant eliminate 80% of their I/O errors after swapping in these.
DIN rail simplicity – Snaps in faster than terminal blocks. In many cases, technicians install it during coffee breaks between turbine checks.
Mark VIe native compatibility – No custom programming needed. Just drop it in your existing GE rack and watch the status LEDs confirm communication.
Failsafe diagnostics – Individual channel LEDs show exactly which wire’s loose—no more guessing games during midnight emergencies.
| Specification | Details |
|---|---|
| Brand/Model | GE IS230SNIDH1A |
| HS Code | 8537.10.90 (Programmable controllers) |
| Power Requirements | 24VDC ±10%, max 5W draw |
| Dimensions & Weight | 120mm x 100mm x 75mm / 220g |
| Operating Temperature | -25°C to +70°C (no derating needed) |
| Signal I/O Types | 32-channel dry contact (sinking/source) |
| Communication | Mark VIe backplane (no external comms) |
| Installation Method | Top-hat DIN rail (35mm standard) |
You'll find these humming inside gas turbine control cabinets at combined-cycle plants—I recently helped a Florida facility replace aging isolation relays with IS230SNIDH1As during an outage. The maintenance lead told me: "We used to lose 3 shifts per year chasing phantom faults. Now we just check the LEDs." It's also common in hydro plants where water ingress risks make robust isolation non-negotiable. One caveat: don't shove it in cabinets with poor ventilation near 400Hz drives—the spec sheet says 70°C max, but in reality, sustained heat above 65°C shortens lifespan.
When your boss asks why not go cheaper, remind them that GE's firmware integration saves engineering hours during commissioning. We've seen plants recoup the cost in 6 months by avoiding just one unnecessary turbine trip. Plus, our 365-day warranty covers field failures—not just bench tests. Oh, and if your project timeline's tight? 90% of in-stock orders ship within a week via your choice of FedEx, UPS, or DHL (50% deposit gets it moving).
Keep It Running SmoothlyMount it in standard 19" cabinets with at least 50mm clearance above/below—those convection vents matter more than you'd think. Skip the compressed air cleaning; a soft brush during quarterly maintenance prevents static damage. One plant engineer swears by checking terminal torque every 18 months since vibration loosens things. Firmware updates? Only when GE issues critical patches (rarely needed), but always back up your Mark VIe config first. Safety-wise: kill power before servicing—those dry contacts can hold nasty inductive kicks.
Built to Industrial StandardsCarries CE, UL 61010-1, and RoHS compliance—no customs headaches. GE's 5-year component warranty applies, but our extended coverage gives you 365 days of no-questions-asked replacement. Saw a Midwest plant get same-week shipping after a lightning strike took out three modules. Not bad for a $1,200 component, right?
