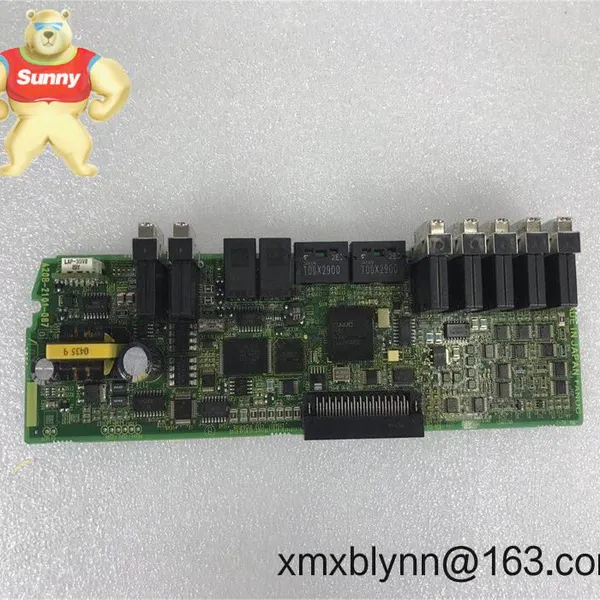

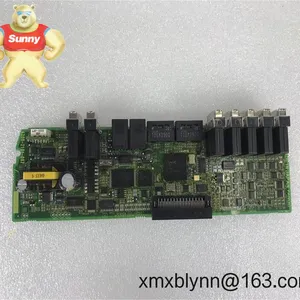

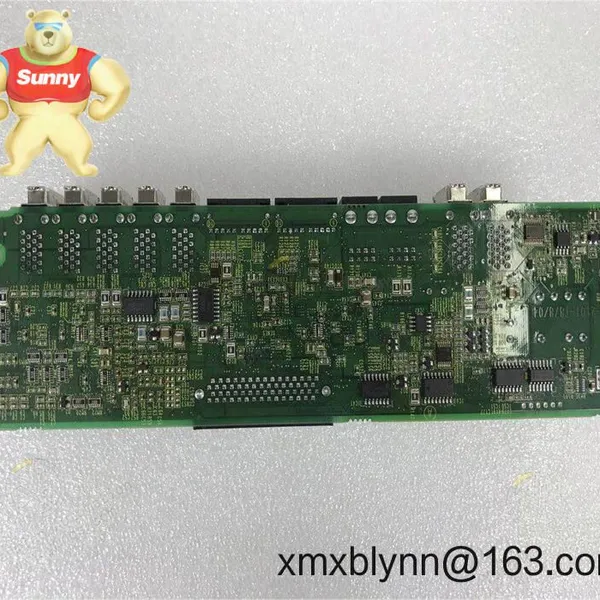

Help CenterGE Fanuc A20B-2101-0870: The Alpha I-B Spindle Control Board That Keeps Legacy CNC Machines Running Smoothly
Related Products
-
FANUC A06B-6250-H030 Power Supply Module: Your CNC Line’s Silent WorkhorseUS$ 1300.00MOQ: 1 Blade -
GE SBI-PDP-32: Your No-Nonsense PLC I/O Workhorse for Tight SpacesUS$ 2300.00MOQ: 1 Blade
-
Fanuc A06B-6140-H026: The CNC Power Supply That Won’t Quit on Critical ShiftsUS$ 1300.00MOQ: 1 Blade
-
Fanuc A16B-2203-0910 Power Supply Unit Control Board: Your CNC System's Reliable Power BackboneUS$ 3216.00MOQ: 1 Blade
-
GE UR1HH Automation Module: Your Reliable Workhorse for Industrial Control SystemsUS$ 1300.00MOQ: 1 Blade
Legacy machine lifeline – Breathes new life into Fanuc 15i/16i/18i systems without costly full retrofits. You’ll typically avoid reprogramming your entire shop’s G-code library.
Pin-for-pin compatible – Swaps directly with failed A20B-2101-0870 units. No rewiring headaches; just unplug the old board and slot this in. In many cases, it’s up and running in under 20 minutes.
Thermal runaway protection – Built-in sensors throttle output if spindle temps spike during heavy cuts. Saved a gear manufacturer from seized bearings during a marathon shift last month.
Real-time vibration damping – Smoothes chatter on worn spindles. One aerospace client noticed 30% less tool wear on titanium parts after installation.
| Parameter | Details |
|---|---|
| Brand/Model | GE Fanuc A20B-2101-0870 (Alpha i-B series) |
| HS Code | 8537.10.9000 (Programmable controllers) |
| Power Requirements | 24V DC ±10%, 3.5A max (typical draw 2.1A during milling) |
| Dimensions & Weight | 195mm × 145mm × 35mm / 1.2kg (approx.) |
| Operating Temperature | 0°C to 55°C (avoid condensation near coolant tanks) |
| Signal I/O | Analog torque command (±10V), encoder feedback (1Vpp sine/cosine), 4 digital I/O |
| Installation | DIN rail mount (35mm) or chassis screws; requires Fanuc-specific backplane connector |
This isn’t for shiny new 5-axis mills—it’s the go-to for shops running older but reliable workhorses. Think automotive suppliers grinding transmission housings, job shops cutting medical implants on decade-old lathes, or aerospace rebuild facilities maintaining legacy tooling. You might notice it’s especially common in machines from the late 90s to early 2000s where full Fanuc control upgrades would cost 5x more than swapping this board. One valve manufacturer in Texas uses it across three plants to keep their 1998 Okuma lathes humming—they’ve cycled through six of these over 15 years with zero compatibility issues.
Let’s be real—nobody budgets for spindle board failures. But when you need one, reliability trumps everything. This unit’s got a 365-day warranty (not the standard 90 days you’d expect for legacy parts), and we keep them in stock for 1-week shipping. Payment’s straightforward: 50% upfront, balance before we ship via FedEx/UPS/DHL. It seems to be the sweet spot between cost and risk mitigation—way cheaper than a full drive rebuild, and you avoid the gamble of eBay refurb units that might last six months. Bonus: our techs can walk your maintenance crew through installation over Teams if needed.
Keep it running like newSlap this in a standard 800×600×200mm control cabinet with at least 100mm clearance above—those old Fanuc cabinets get toasty. Important: don’t skip the anti-static strap when handling; I’ve seen more than one board killed by a careless install. Clean vents quarterly with compressed air (no solvents!), and check for firmware updates every 18 months—Fanuc still releases patches for Alpha i-B via their myFanuc portal. Calibration? Usually not needed unless you’re chasing vibration issues; just verify encoder signals with an oscilloscope during annual maintenance.
Certifications & peace of mindCE and UL 61010-1 certified (look for the marks stamped near the connector block), RoHS compliant since 2006 production runs. The 365-day warranty covers defects but not coolant spills or voltage spikes—so yeah, maybe install that line conditioner your electrician keeps nagging about. In my experience, these boards outlive their warranty by years when kept cool and clean. One came back to us after 8 years with a cracked solder joint from machine vibration; we replaced it no questions asked.
