12 Gauge Aluminum Wire With Enamelling Elantas Paint China
US$ 4.00
500 - 4999 Kilograms
US$ 3.80
5000 - 17999 Kilograms
US$ 3.70
≥18000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
EI/AIW
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
28 Gauge Aluminum Wire Use for Transformer Electromagnetic CoilUS$ 3.70 - 4.00MOQ: 500 Kilograms -
Polyurethane 20 Awg Gauge Aluminum Enameled Wire MotorUS$ 3.75 - 3.90MOQ: 500 Kilograms
-
Awg 27 180 Degree 200 Class Winding Wire MotorUS$ 3.70 - 4.00MOQ: 500 Kilograms
-
High Temperature Resistant 23 Awg Magnet Wire Aluminum Enameled Conductor MotorUS$ 3.70 - 4.00MOQ: 500 Kilograms
-
SWG AWG 28 29 Gauge Aluminum Enameled Wire HuiLongUS$ 3.52 - 3.80MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Shape:
Round
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.50mm-6.0mm
Certification:
UL ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200
Standard
IEC-60317
Product Description
Round Wire Diameter: 1.30mm
Scope: 5awg-32awg/7swg-35swg

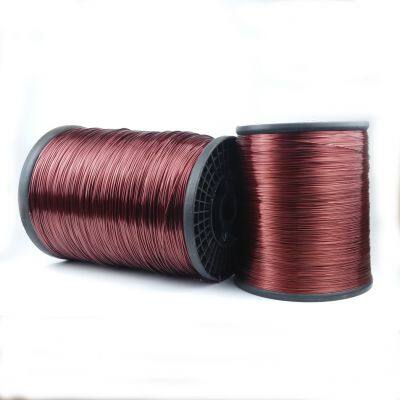

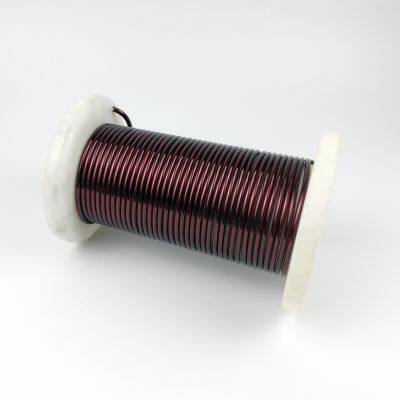

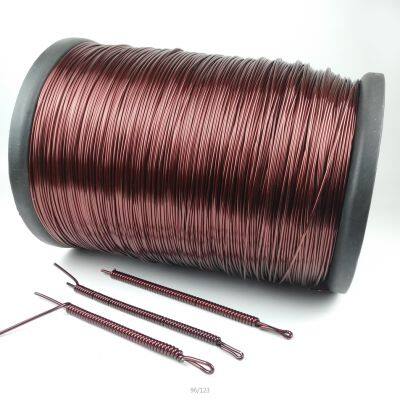

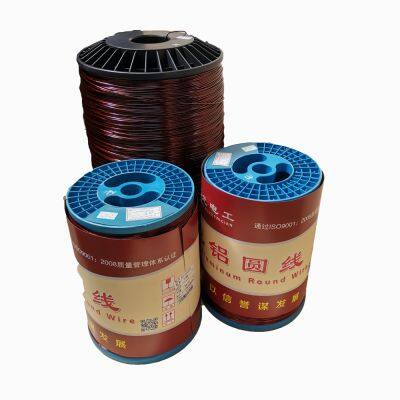

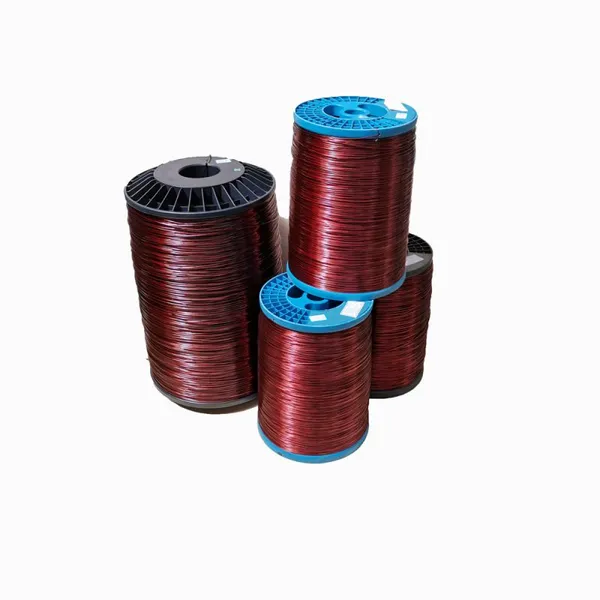

Product Name: 12 gauge aluminum wire with enamelling
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | QY-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.2-4.5 | 0.2-4.5 | 0.2-4.5 | 0.2-4.5 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
Product Details
Advantage
Techinical Data
Why do enamelled aluminium wires fail to bond properly?
During the use of enameled aluminum wire, cracking, patent leather or cracking may occur, it collectively referred to as adhesion problems for the following reasons:
1. The first coat of paint is too thin
2. The thickness of the paint is not uniform, one side is thick, the other side is thin.
3. Paint film thickness uneven at different courses.
4. The speed of the machine is not suitable, resulting in insufficient curing or over curing
5. The material problem of the insulating paint itself.
6.The diameter of enameled aluminum wire is not round.
That is all the reasons we often meet with the unqualified adhesion of enameled aluminum wire.
