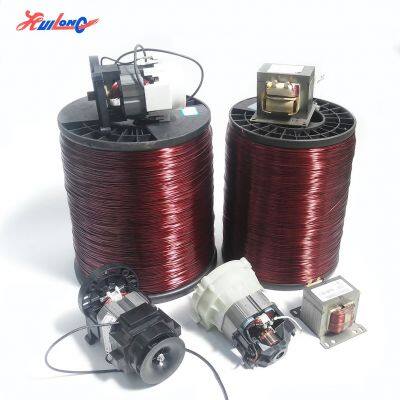

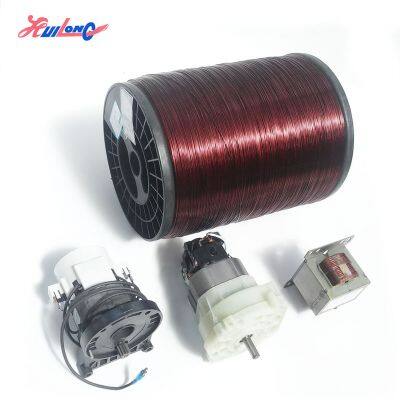

Top Grade Electrical Wires EI/AIW-2/200 Enameled Aluminum Wire for Electric Motor Winding Magnet Winding AWG 4-32
US$ 3.99
500 - 4999 Kilograms
US$ 3.51
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-Temperature Resistance Motor Wire Electromagnetic Aluminum Conductor Exported AWGSWG High-Temperature Resistance Motor WireUS$ 3.37 - 3.55MOQ: 200 Kilograms -
Transformer Use Enameled Enameled Aluminum Wire Magnet Wire Polyamideimide Composite Polyester Insulated UL ISO9001 CertificationUS$ 3.48 - 3.98MOQ: 500 Kilograms
-
Magnet Wire 0.5-6.00 mm Enameled Round Wire for Motors Insulated Winding Class 130 155 180 200 Insulated Enameled Aluminum WireUS$ 3.52 - 3.92MOQ: 500 Kilograms
-
High Class Magnet Wire Electrical Wires Aluminum Coil Insulated Aluminum Coil Winding UL Certified AWG EI/AIW 200/220US$ 3.58 - 3.98MOQ: 500 Kilograms
-
6.0mm Enameled Enameled Aluminum Wires Insulated Coated Winding for Ceiling Fan AWG4-SWG32 IEC60317 Standard UL CertificationUS$ 3.50 - 3.97MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg
Product Name: 200 class enameled aluminum wire for transformer cleaning machine
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Details
Product Paramenters
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
PT200 spool | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG |
