Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Wire Aluminium EI/AIW-200 220 AWG/SWG IEC-60317 Enameled Round Wire for Motor and Transformer Winding America

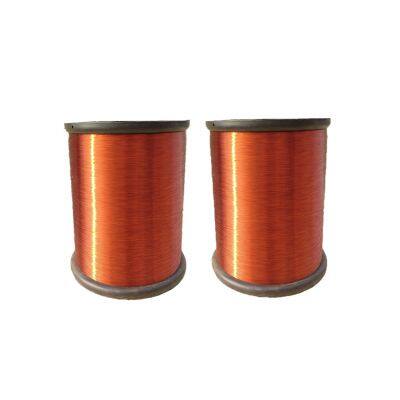

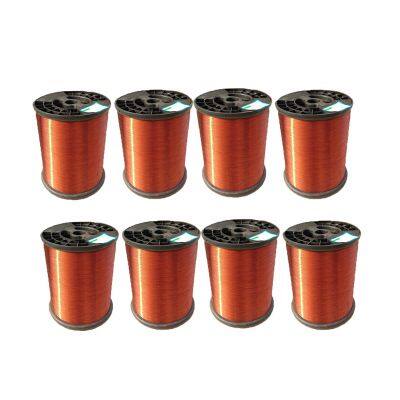

Wire Aluminium EI/AIW-200 220 AWG/SWG IEC-60317 Enameled Round Wire for Motor and Transformer Winding America
US$ 3.91
500 - 4999 Kilograms
US$ 3.53
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wire Aluminum Enameled Magnet Wire Winding SWG AWG Class 130 180 200 220 IEC-60317US$ 3.50 - 3.90MOQ: 500 Kilograms -
High Grade Wire Aluminum Enameled Aluminium Winding Wire Motors SWG/AWG REACH RoHS Certification AmericaUS$ 3.55 - 3.90MOQ: 500 Kilograms
-
Aluminum Round Electric Wire With Insulation Coating IEC-60317 Enameled Magnet Electric Wire for Fan Motor WindingUS$ 3.56 - 3.93MOQ: 500 Kilograms
-
Aluminum Winding Electric Wire Professional Manufacturing Factory Prices AWG Enameled Electrical Electric Wires ISO9001 CertificationUS$ 3.52 - 3.94MOQ: 500 Kilograms
-
HuiLong High Quality 200/220 Grade Polyester-Imide Aluminium Solid Conductor Round/Flat Enameled Wire Electrical WiresUS$ 6 - 10MOQ: 1 Kilogram
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
0.63 MM
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ROHS REACH ISO9001
Bobbin:
PT25 PT30 PT60 PT200 PT270
Color
Brown
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg)
Product Name: 22 awg enameled aluminium wire
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | QY-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
