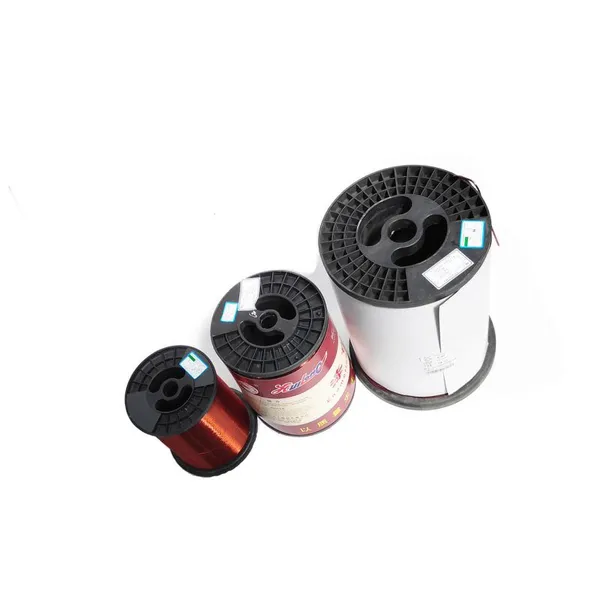

Aluminum Winding Wire With Enamel Insulation Electrical Wires Manufacturing Price AWG 6-32 NM1000
US$ 4.39
500 - 4999 Kilograms
US$ 3.95
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide,polyamide-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Manufacturing Factory Prices Aluminum Winding Wire AWG Enameled Electrical Wires ISO9001 Certification NM1000US$ 3.89 - 4.49MOQ: 500 Kilograms -
Aluminum Winding Wire UL Certified Enameled Electrical Wires AWG EI/AIW 200/220 for Magnetic Coil UL WireUS$ 3.99 - 4.35MOQ: 500 Kilograms
-
Aluminum Wire Prices AWG/SWG Enameled Electrical Wires for Transformer and Motor IEC-60317 Standard UL WireUS$ 3.97 - 4.39MOQ: 500 Kilograms
-
Polyamideimide 240 Class Enameled Aluminum Wire 0.85-1.20 mm Insulated With Insulated Coating UL WireUS$ 15.50 - 16.50MOQ: 50 Kilograms
-
IEC-60317 Standard Insulated Coating Electrical Wires Enameled Aluminum Wire for Transformers NM1000US$ 3.75 - 3.98MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW-180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
H class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ROHS REACH ISO9001
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.6mm-5.00mm (4awg-32awg) Magnetic wire swg
Product Name: 2020 PT200 spool EI/AIW 200 class enameled aluminum wire for transformer
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Details
Advantage
Techinical Data
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 | 0.60-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
