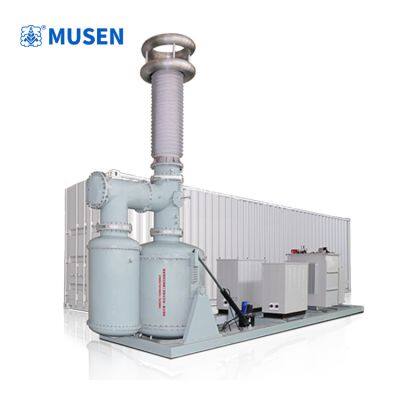

Help CenterMS-CZWJ, Vehicle-mounted Series Resonant System
Related Products
-
MSXB-F-75kVA 75kV, Resonant Test SystemNegotiableMOQ: 1 Combo -
MSXB-F-135kVA 108kV, Frequency Resonant Test SystemNegotiableMOQ: 1 Combo
-
MSXB-F-270kVA 270kV, AC Resonant Test SystemNegotiableMOQ: 1 Combo
-
MSXB-F-540kVA 270kV, Resonant AC Withstand Voltage Test DeviceNegotiableMOQ: 1 Combo
-
MSXB-F-1000kVA 500kV, Variable Frequency Resonant SystemNegotiableMOQ: 1 Combo
1. LCD display for clear and intuitive readings of voltage, current, time, status information, and prompts;
2. Simple and intuitive interface suitable for various applications;
3. Touchscreen operation; all functions can be preset, improving product safety and reliability;
4. Status reminder function; guided operation;
5. Alarm function: alarm upon failure, 5-second buzzer alarm; buzzer alarm for abnormal voltage signal acquisition;
6. Emergency stop function: in automatic control, this function allows for emergency stop of voltage increase
or decrease at any point;
7. Automatic timing function: in automatic control, when the voltage automatically rises to the set value, the
device automatically starts timing; when the timing time is up, the device automatically decreases the voltage
and returns to zero;
8. Manual control mode: similar to traditional electric voltage increase/decrease mode, the increase/decrease is
controll by touch keys, the device automatically judges the upper/lower limits, and provides high voltage overvoltage,
low voltage overcurrent protection;
1. Voltage Rating: 100kV, 200kV, 250kV, 300kV, 500kV, 800kV, 1000kV
2. Capacity: 50-2000kVA
3. Input Voltage: 0.35-10kV (primary voltage)
4. Partial Discharge: 1-3pc at rated voltage (normal environment)
5. Temperature Rise: Temperature rise not exceeding 65kJ (50Hz) after 60 minutes of operation at rated current
6. High Voltage Generation Method: High-voltage transformer step-up and series resonance (power frequency,
frequency conversion); all step-up methods are single-stage step-up without cascade step-up.
Vehicle-mounted series resonance, vehicle-mounted partial discharge-free resonant system,
mobile partial discharge-free resonant system, vehicle-mounted partial discharge-free resonant withstand
voltage system, mobile partial discharge-free series resonance.
