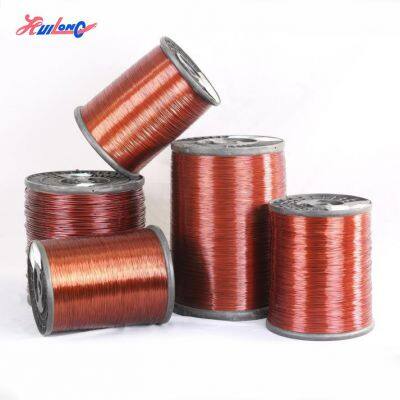

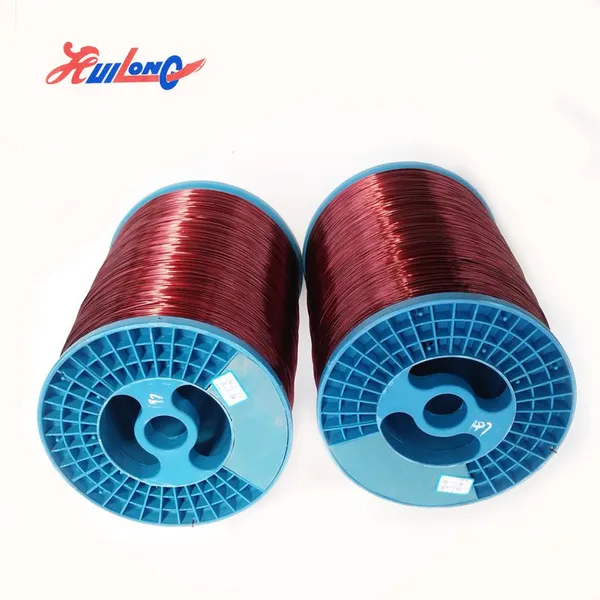

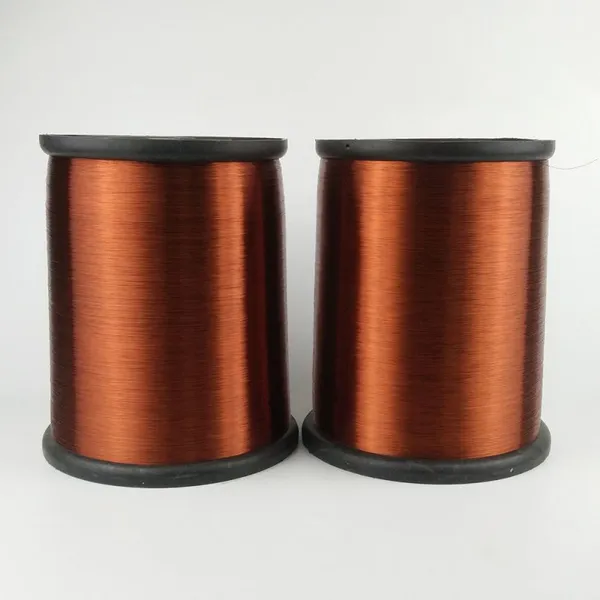

200 Class Enameled Aluminum Wire Winding for Motor and Transformer With RoHS UL REACH Certifications UPS Inverters
US$ 4.50
500 - 4999 Kilograms
US$ 4.10
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Wholesale Enameled Aluminum Wire Winding for Fan Motor Coil With UL Certifications UPS InvertersUS$ 4.00 - 4.30MOQ: 500 Kilograms -
Factory Direct Supply 180 Degree Round Aluminum Enameled Winding Wire PakistanUS$ 4.05 - 4.30MOQ: 500 Kilograms
-
Factory Direct Supply 200 Degree Round Aluminum Enameled Winding Wire UPS InvertersUS$ 4.10 - 4.50MOQ: 500 Kilograms
-
Manufacturer Enameled Aluminium Winding Wire for Ceiling Fan Motor PakistanUS$ 4.10 - 4.50MOQ: 500 Kilograms
-
200 220 AI EIW Winding Wire Ceiling Fan Winding Wire QatarUS$ 3 - 5MOQ: 1 Kilogram
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Color
Brown
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg
Product Name: 200 class enameled aluminum wire for transformer cleaning machine
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
Q(ZY/XY)-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class N |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
PT200 spool |
410*410*660 mm 65-75KG |
410*410*660 mm 65-75KG |
410*410*660 mm 65-75KG |
410*410*660 mm 65-75KG |
