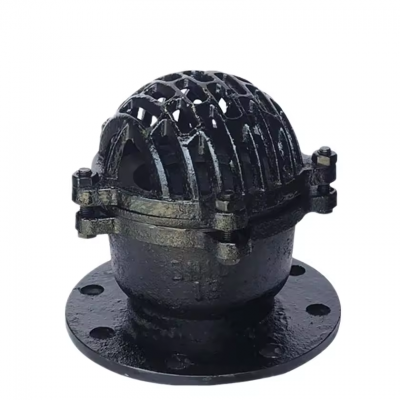

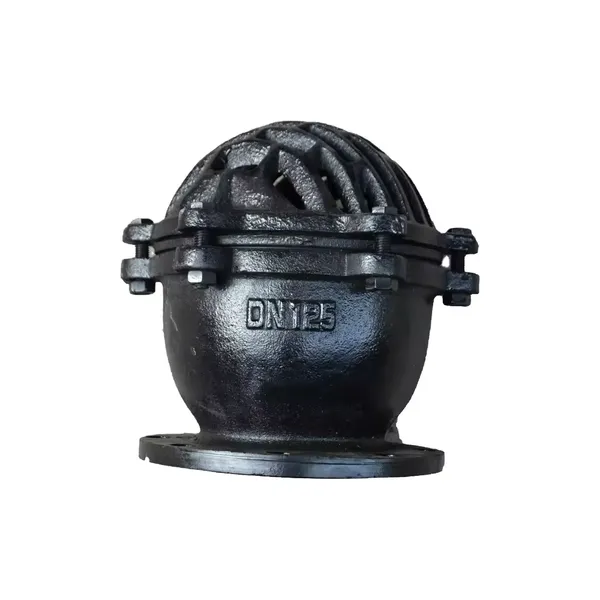

BS4504 Foot Valve Manufacturer Direct Sales of Stainless Steel Carbon Steel Flange Bottom Valve
- China
- T/T L/C PayPal Other
- 15 days
You May Like
-
BS Standard Cast Iron Grey Iron Threaded Foot Valve PN10/PN16 Pressure Rating for Water Pump
-
Industrial Foot Valve for Water Supply Systems, BS4504 Flange Standard Check Valves
-
Cast Iron Check Valve BS Foot Valve With NBR Seal, Carbon Steel Disc, Corrosion Resistant Design
-
General Purpose Grooved Gate Valve Cast Iron Fire Fighting Groove Gate Valve With Handwheel
-
ANSI AWWA C509 Grooved End Gate Valve, 2-1/2"-8" Size Range, 125/150 LB Pressure Rating
-
ANSI Awwa Grooved Ductile Iron Gate Valve With RPTFE Seat, High Performance for Chemical Service
Product Details
| Material | Cast Iron | Type | Other, BS Foot Valve | |
| Application | Industrial Usage, Water Industrial Usage, Household Usage, Other | Usage | Safety, Drain, Temperature Control, Flow Control | |
| Standard | DIN | Actuator | Electric | |
| Seal Surface | Wedge Gate Valve | Thread Position of Valve Rod | Inside Gate Valve | |
| Media | Water | Temperature | Ordinary Temperature | |
| Pressure | Ordinary Pressure | Connection Form | Flange | |
| Production Size | 2”-12” DN50-DN300mm | Pressure range | PN10,PN16 | |
| Design Standard | BS | Flange Standard | BS4504 | |
| Flange Standard | EN 1092-2,BS4504 | Testing Standard | ISO 5208 | |
| Disc | Cast Iron/Carbon Steel | Seat | NBR,EPDM | |
| Origin | He Bei |
Product Description

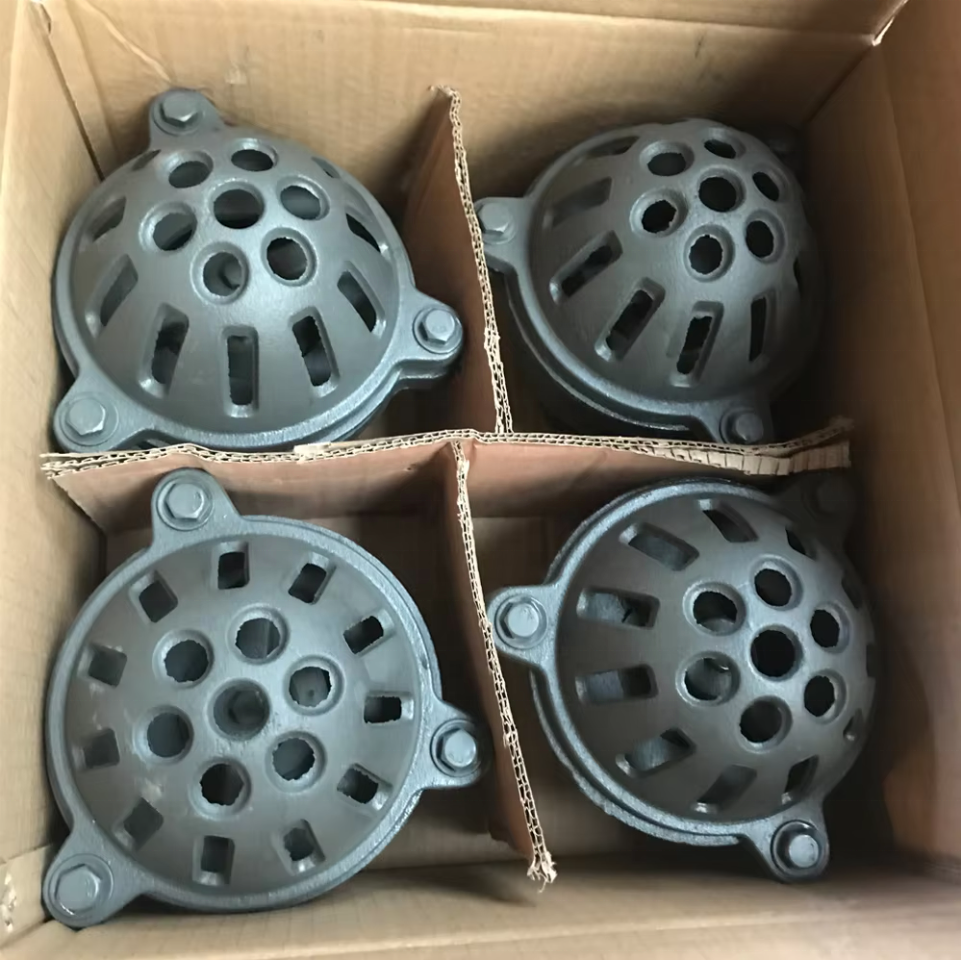

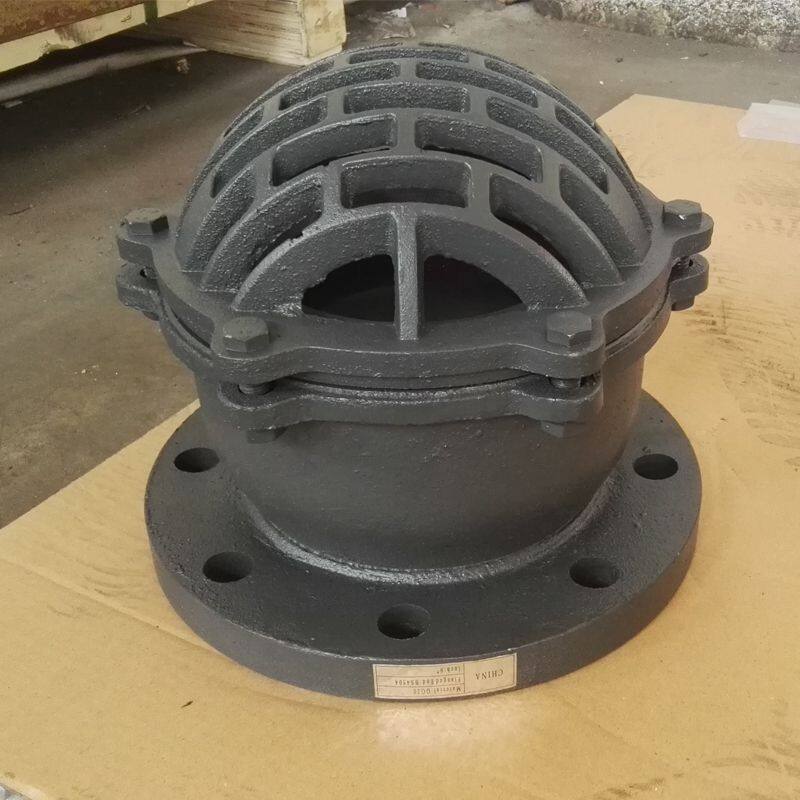

BS/EN/DIN/JIS Foot Valve
BS Foot Valve Standard:
Production Size:2”-12” DN50-DN300mm
Pressure range:PN10,PN16
Design Standard:BS4504
Flange Standard:EN 1092-2,BS4504
Testing Standard:ISO 5208
BS Foot Valve main material of parts:
Body:Cast Iron
Bonnet:Cast Iron
Disc:Cast Iron/Carbon Steel
Seat:NBR,EPDM
BS/EN/DIN/JIS Foot Valve is designed to regulate and control water flow into industrial pumps. With a sturdy ductile iron construction and a corrosion-resistant stainless steel screen, this foot valve provides superior durability and reliability for industrial suction applications. The valve is engineered to ensure smooth and continuous operation while protecting your pumps from debris and damage.
Key Features:
Durable Ductile Iron Construction: The body of the valve is made of high-quality ductile iron, offering strength and corrosion resistance in demanding industrial environments.

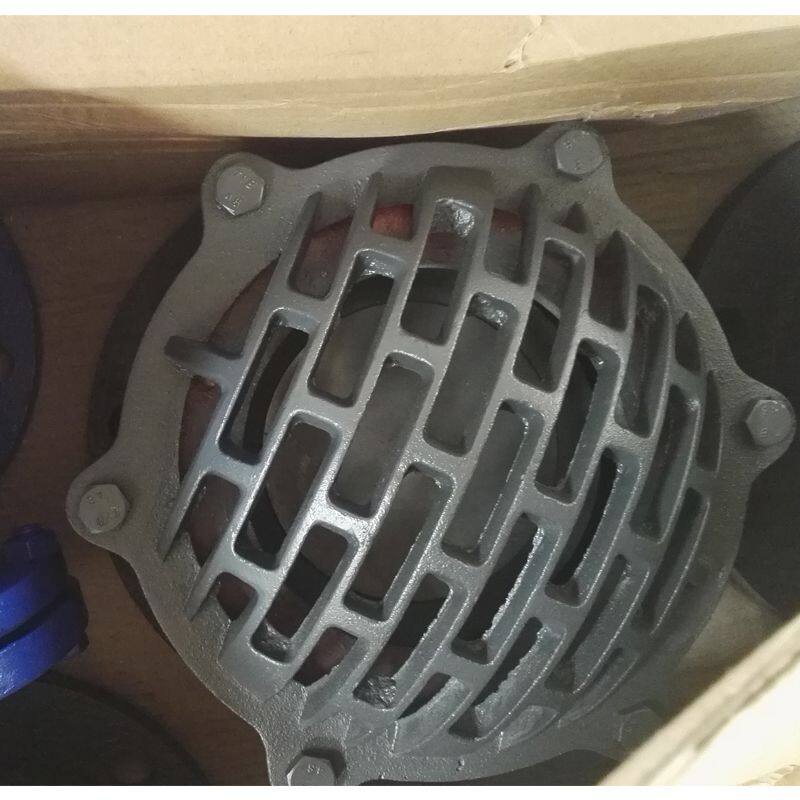

Stainless Steel Screen: The stainless steel screen protects the pump from large particles, preventing damage and ensuring smooth operation.
ANSI Flange Connection: The valve is equipped with ANSI flanged connections, providing an easy and secure fit for a wide variety of industrial applications.
High Pressure and Temperature Resistance: The valve can withstand pressures up to ANSI class 150/300 and operate in temperatures up to 200°C, making it suitable for demanding industrial systems.
Reliable Suction Control: The foot valve is designed to control suction, preventing backflow and ensuring a consistent and steady supply to your pump.
Applications:
Water treatment plants
Pumping stations
Industrial pump systems
Cooling systems
Construction and mining operations
Why Choose the Industrial Pump Suction Foot Valve?
This foot valve is built for industrial applications where reliability, durability, and performance are essential. The ductile iron body and stainless steel screen ensure long-lasting performance even in challenging conditions. With its ANSI flange connection, it offers easy installation and secure integration into your pump system. This valve effectively protects your pumps from debris while ensuring reliable suction, making it an essential part of your industrial pumping system.
Order Now: Enhance the performance of your industrial pump systems with the Industrial Pump Suction Foot Valve. Contact us today for more information or to place an order!
FAQ:
What is the material of this foot valve?
The body of the valve is made from durable ductile iron, and the screen is made from corrosion-resistant stainless steel.
What is the pressure rating for this valve?
This valve is rated for ANSI class 150/300, suitable for high-pressure applications in industrial systems.
How does the stainless steel screen work?
The stainless steel screen filters out debris and particles, preventing them from entering the pump and causing damage.
What type of connection does this valve have?
The valve comes with ANSI flanged connections, making it compatible with standard industrial piping systems.
What is the maximum temperature the valve can handle?
The valve can operate at temperatures up to 200°C, making it suitable for high-temperature industrial applications.
Can I use this valve in water treatment plants?
Yes, this valve is ideal for water treatment plants, pumping stations, and other industrial pump systems.
Is this valve easy to install?
Yes, the ANSI flange connection allows for easy installation and secure integration into your existing system.
What industries can use this foot valve?
This valve is ideal for use in water treatment, industrial pump systems, construction, mining, and other heavy-duty applications.
