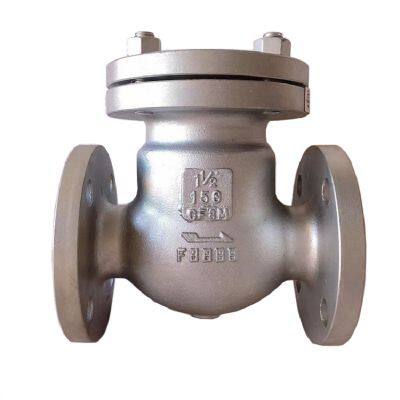

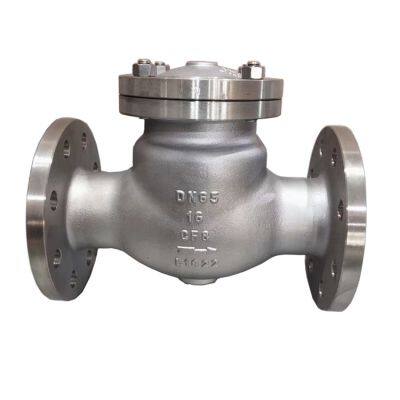

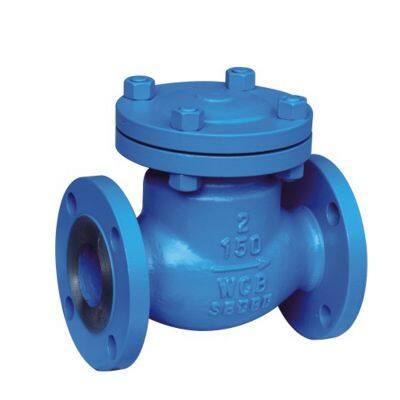

Help CenterDurable ANSI Cast Steel Check Valve With Corrosion Resistant Coating for Harsh Environments
Related Products
-
ANSI Cast Steel Check Valve for Water Treatment Plants Preventing Backflow and ContaminationNegotiableMOQ: 1 Fluid Ounce -
High-Performance ANSI Cast Steel Check Valve Preventing Reverse Flow in Chemical ProcessingNegotiableMOQ: 1 Fluid Ounce
-
ANSI Cast Steel Check Valve Compatible With Standard Flanges for Seamless Pipeline IntegrationNegotiableMOQ: 1 Fluid Ounce
-
Large Diameter ANSI Cast Steel Check Valve for Heavy-Duty Industrial Water Supply NetworksNegotiableMOQ: 1 Fluid Ounce
-
ANSI Cast Steel Check Valve Used in HVAC Systems to Maintain Proper Airflow DirectionNegotiableMOQ: 1 Fluid Ounce
Engineered for reliability in demanding industrial settings, the ANSI Cast Steel Check Valve with specialized corrosion resistant coating delivers exceptional flow control performance where standard valves fail. This heavy-duty solution prevents backflow while withstanding aggressive chemicals, high temperatures, and abrasive media encountered in petrochemical, mining, and power generation applications. Its robust construction ensures minimal maintenance requirements even after prolonged exposure to corrosive elements, translating to reduced operational downtime and lower lifecycle costs for your facility.
Chengxin Valve leverages nearly three decades of manufacturing expertise to produce valves that meet rigorous international standards while offering customizable configurations for specific operational needs. With ISO-certified quality control processes and a global export footprint spanning four continents, we provide dependable fluid handling solutions trusted by industrial operators worldwide.
- Body Material: ASTM A216 WCB cast steel
- Seat Design: Metal-to-metal or resilient seats available
- Temperature Range: -20°F to 1000°F (-29°C to 538°C)
- End Connections: RF, RTJ, or BW flanges per ASME B16.5
- Coating Options: Epoxy, Xylan, or PTFE-based coatings
- Testing Protocol: 100% hydrostatic testing per API 598
| Size (inches) | Pressure Class | Flow Coefficient (Cv) |
|---|---|---|
| 1/2" - 2" | 150 - 900 | 5 - 120 |
| 3" - 8" | 150 - 600 | 150 - 1800 |
| 10" - 24" | 150 - 300 | 2200 - 8500 |
- Enhanced durability through specialized surface treatment that inhibits pitting and erosion
- Reduced turbulence and pressure drop with streamlined flow path design
- External leakage prevention via bolted bonnet construction with spiral-wound gaskets
- Swift response time with spring-assisted closure mechanism
- Field-serviceable components without pipeline removal
The valve's corrosion-resistant barrier significantly extends service life in environments containing H₂S, CO₂, chlorides, or other corrosive agents. Our proprietary coating application process ensures uniform coverage on all wetted surfaces, including complex geometries in the body cavity and disc assembly. This comprehensive protection maintains sealing integrity and prevents particulate buildup that compromises performance in slurry or wastewater applications.
Q: What media compatibility does the corrosion resistant coating provide?
A: The specialized coatings resist degradation from crude oil, saltwater, acidic compounds (pH 2-12), and abrasive slurries containing up to 30% solids concentration.
Q: Are custom pressure ratings available beyond standard classes?
A: Yes, we engineer valves for non-standard pressure requirements up to 2500 psi, with design validation through finite element analysis.
Q: What maintenance intervals are recommended?
A: Under normal operating conditions, we recommend inspection every 24 months with lubrication of external components every 6 months.
Q: Can you supply valves with emergency shut-off features?
A: Optional failsafe configurations with pneumatic or hydraulic actuators are available upon request for critical applications.
Q: What documentation accompanies shipments?
A: All valves include material test reports, coating certification, hydro-test records, and installation manuals compliant with EN 10204 3.1.
With direct manufacturing oversight across our 75,000m² facility and comprehensive quality management systems, Chengxin Valve maintains consistent performance across production batches. Our global logistics network ensures timely delivery through major Chinese ports to industrial hubs in South America, Africa, and the Middle East.
Contact our engineering team to discuss project-specific requirements and receive a detailed proposal including dimensional drawings, material specifications, and performance guarantees. Leverage our technical expertise to optimize your fluid system reliability while reducing total cost of ownership.
