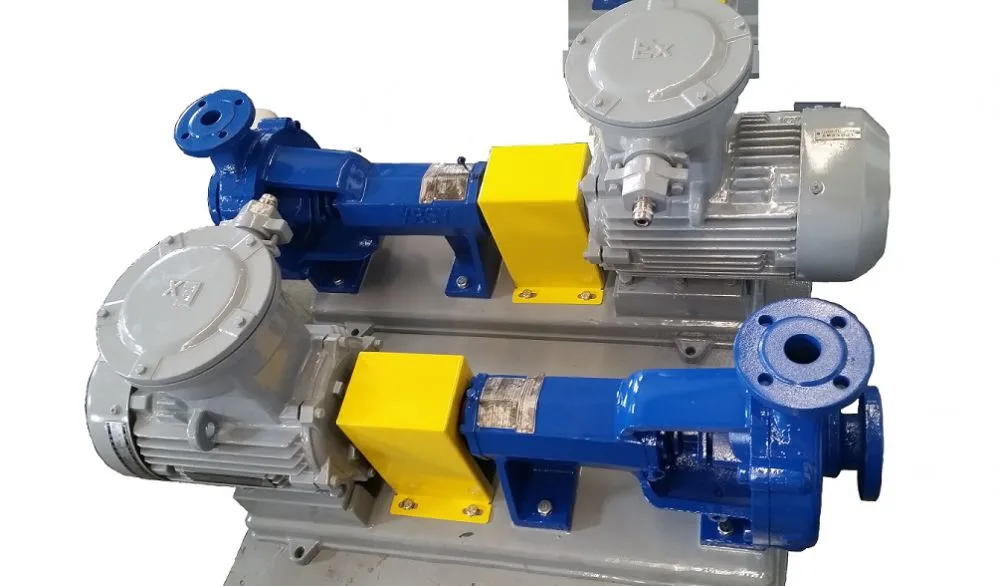

Mud Pump Accessories Electric Spray Pump for Oil & Gas Drilling Rig Equipment Petroleum Well
Spray pump is mainly used for oil drilling mud pump supporting equipment, its role is to wash and cool the cylinder liner, piston and other occasions for conveying mud during the operation of the pump. Spray pump is mainly composed of pump body, seal pump cover, seal, impeller, pump seat and so on. The main advantages of its structure are: the main seal adopts mechanical seal to ensure no leakage operation. In addition, the pump has two ways of direct motor drive and pulley drive.
| Model number |
Flow rate (m3/h) |
lifts | Efficiency | Rotational Speed | Power(kW) | |
| (m) | (%) | (r/min) | Shaft Power | Matching Power | ||
| 32SB180J-2.2kW | 7.5 | 10 | 48 | 1420/1750 | 0.55 | 2.2 |
| 32SB180J-4kW | 9 | 14 | 48 | 1750 | 0.93 | 4 |
| 40SB180J-3kW | 15 | 10 | 53 | 1420/1750 | 0.78 | 3 |
| 32PL | 7.5 | 10 | 48 | 1420 | 0.55 | / |
| 32PL(B) | 7.5 | 10 | 48 | 1420 | 0.55 | / |
We supply all accessories for the following types of mud pumps, or machined according to your drawings.
Gemstone EMSCO:
F-500 F-800 F-1000 F1300 F1600 FB-1300 FB-1600 D-375 D-700
LANSHI:
3NB-1300C 3NB-1000 3NB-1000C 3NB-800
QINGZHOU
SL3NB-1300A QZ--1000 QZ-500 QZ-350 QZ800 SL3NB-1600
GARDNER DENVER:
PZ-7 PZ-8 PZ-9 PZ-10 PZ-11
IDECO:
T–500 T–800 T–1000 T–1300 T–1600
NATIONAl:
7-P-50 8-P-80 9-P-100 10-P-130 12-P-160 14-p-200 14-P-220 K-700 K-700A K-500 K-500A
OILWELL:
A–350PT A–560PT A–600PT A–850PT A–1100P A–1400PT A–1700PT
RUSSIAN:
8T-650 UNBT-600 UNBT-950 UNBT-1180L UNBT-950A UBT-400 BT-600 UB-590 UNB-600 8T310 8T650-01
Our mud pump accessories mainly including mud pump cylinder liner, mud pump ceramic cylinder liner, mud pump bimetal cylinder liner, mud pump piston assembly, mud pump valve assembly, mud pump piston rod, mud pump valve body and seat, valve rubber, insert plate assembly, cylinder, valve box, oil seal ring, air pack assembly, air pack capsule, cylinder liner gland, cylinder head plug, under guide, clamp, Top cylinder, JA-3 shear safety valve, cylinder liner flange, cylinder head, valve cover, middle tie rod, cross head pin, cross head, guide plate, packing box assembly, etc.
Our oil drilling equipment spare parts including:
Mud pump,
Mud pump accessories,
Safety valve assembly,
Drilling rig travelling hoist system,
Winch and accessories,
Pulley,
Clutch and spare parts,
Drilling rig spare parts,
