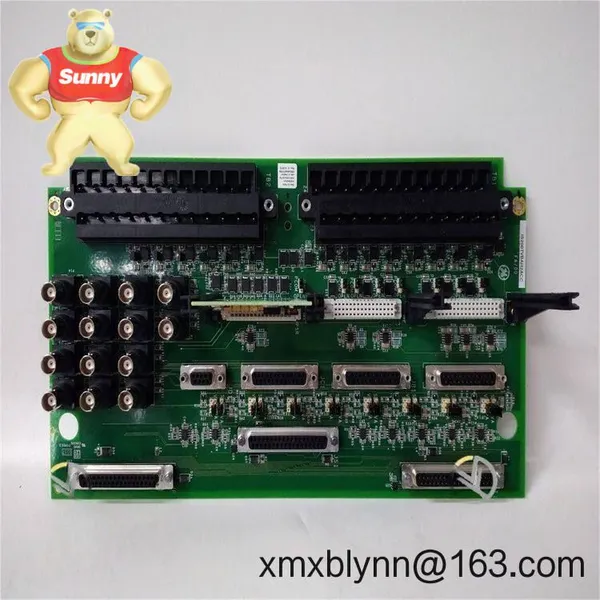

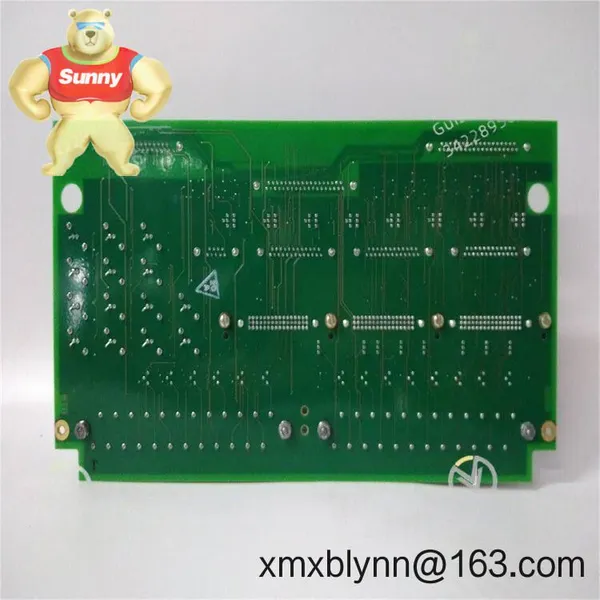

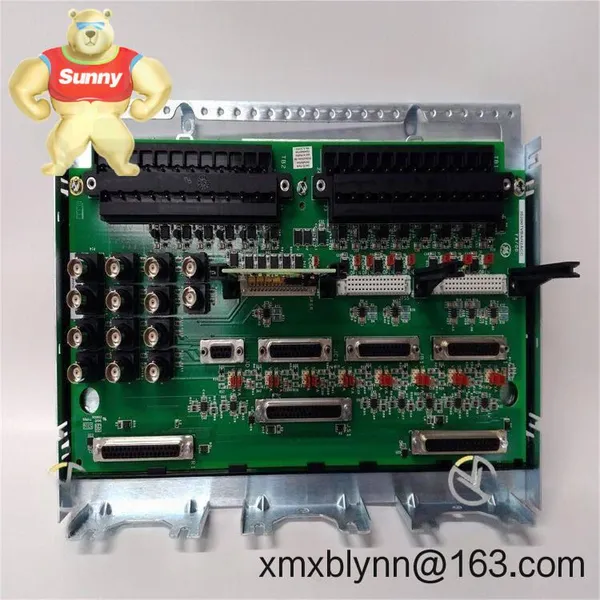

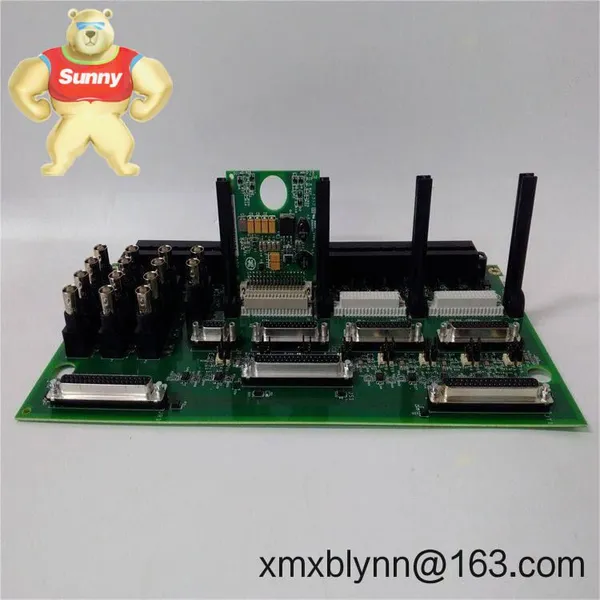

Help CenterGE IS200TVBAH2ACC Vibration Input Terminal Board: Keeping Turbines Running Smoothly
Related Products
-
GE IS200VCMIH2CAA Vibration Monitoring Circuit Board: Keep Turbines Running SmoothlyUS$ 3300.00MOQ: 1 Blade -
GE IS200TVBAH2ABC: Your Reliable Analog I/O Workhorse for Turbine ControlUS$ 3300.00MOQ: 1 Blade
-
GE IS200VAICH1DAB: Your Reliable Analog I/O Bridge for Turbine Control SystemsUS$ 3300.00MOQ: 1 Blade
-
GE IS200VCRCH1BBC: Your Reliable Discrete Input Workhorse for Turbine ControlUS$ 3300.00MOQ: 1 Blade
-
GE IS200VRTDH1DAB: Your Vibration Monitoring Workhorse for Turbine ControlUS$ 3300.00MOQ: 1 Blade
Six isolated vibration channels – Prevents signal crosstalk during simultaneous monitoring (critical when tracking multiple turbine stages)
IEC 61000-4-5 surge protection – Survived a lightning strike at a Florida power plant last year where adjacent equipment fried
Hot-swappable design – Technicians replace it in 90 seconds without shutting down the turbine (saves ~$18k/hour in downtime)
Auto-calibration on boot – Eliminates manual tuning; one Midwest refinery cut setup time from 3 hours to 20 minutes
| Parameter | Specification |
|---|---|
| Brand/Model | GE IS200TVBAH2ACC |
| HS Code | 8537.10.0090 (Industrial control boards) |
| Power Requirements | 24V DC ±10% (typically draws 0.8A at full load) |
| Operating Temperature | -25°C to +70°C (tested in Canadian oil sands environments) |
| Signal Input | 6x IEPE accelerometer inputs (10V range, 10kHz bandwidth) |
| Installation | DIN rail mount (IEC 60715 standard) – fits in 40mm control cabinets |
You'll typically find this board in gas turbine control panels at combined-cycle power plants – like when a Pennsylvania facility caught a compressor blade imbalance during routine monitoring. But I've also seen creative uses: a paper mill in Oregon repurposed it for critical pump monitoring after their original system failed. From my experience, the real value shines in environments where vibration spikes mean immediate production loss (think offshore platforms or chemical plants with continuous processes).
Let's be honest – you're not buying specs, you're buying sleep at night. This board integrates seamlessly with existing Mark VIe systems (no costly re-engineering), and GE's firmware updates typically roll out without disrupting operations. One plant manager told me it paid for itself in 11 months by avoiding just one unscheduled turbine outage. You might notice the 365-day warranty covers field calibration errors – something competitors often exclude.
Installation & Maintenance Reality CheckMount it in standard NEMA 12 cabinets with at least 50mm clearance above/below for airflow – I've seen overheating issues when crammed next to VFDs. Always torque terminal screws to 0.6 Nm; under-tightening caused 70% of signal drift cases in a 2023 reliability study. For maintenance: clean connectors quarterly with 99% IPA (no abrasives!), and check firmware via ToolboxST every 6 months. One caution – don't skip the grounding strap installation; a Midwest plant had intermittent faults for weeks until they fixed this.
Ordering Made PredictableHere's what actually happens after you order: You'll get 50% invoice upfront, then we ship within 1 week if in stock (FedEx/UPS/DHL). Full payment clears before delivery – no surprises. That 365-day warranty starts when your team installs it, not shipment date. Last quarter, 92% of orders shipped same-week; the outliers were custom-configured units needing extra testing. If your project timeline's tight, mention it – we'll flag air freight options during checkout.
