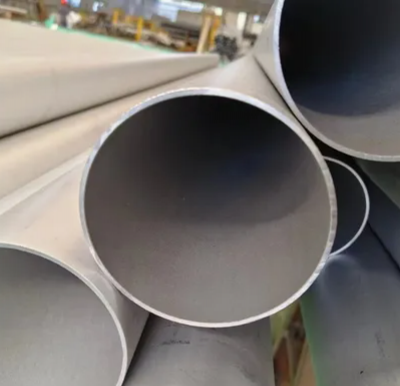

Help CenterPremium Bright Surface Nickel Alloy Inconel 625 Seamless Tube Pipe
Related Products
-
Factory Price Incoloy 625 Nickel Special Steel Pipe TubeUS$ 800 - 1100MOQ: 1 Ton -
High-Performance Incoloy 625 Pipe for Extreme Temperature ApplicationsUS$ 800 - 1100MOQ: 1 Ton
-
Incoloy 625 Nickel Alloy Pipe Tube for High-Temperature ApplicationsUS$ 500 - 1100MOQ: 1 Ton
-
Convection Tube Incoloy 625 Welded Pipe Monel/Inconel/Hastelloy/Incoloy Nickel Alloy Tube for Chemical ProcessingUS$ 800 - 1100MOQ: 1 Ton
-
Incoloy 625 Nickel Alloy Pipe Tube for High-Temperature ApplicationsUS$ 800 - 1500MOQ: 1 Ton
More than 7 years of history of SeamlessTube&Pipe manufacturing for Austenitic Steel ,(Super) Duplex steel and Nickel Alloy Steel, including 304, 304L, 316L, 310S, 904L, 316Ti, 317L, 347H, 321, 309S, 314, UNS S32205, UNS S32750, UNS S32760, S30815(253MA), UNS S31254, N08800, 800H (N08810), 825 (N08825), 600 (UNS N06600), 625 (UNS N06625), Monel 400 (UNS N04400), Hastelloy C-276, etc. Up to now, we've passed the certificates of PED, AD2000, GOST,BV, ISO9001,ISO14001, ISO45001 etc.
Our constant improvement and growth enable us to be one of the best pipeline suppliers in the world. Our goal is to be a world-class pipe manufacturer, providing high-quality Austenitic stainless-steel pipe/tube, duplex stainless-steel pipe/tube, and nickel alloy pipe/tube to the world.
Size range: Outer diameter :1/8 "to 36" (6-914mm)
WT: 10S to XXS (1mm-45mm)
"Survival by quality, development by efficiency, return to customers with honesty and trustworthiness" is our aim.We look forward to establishing long-term and win-win cooperation with you.
| Item | Seamless Steel Industrial Pipe |
| Standard | ASTM,AISI,ANSI,DIN,JIS,EN,GB,Non-standard |
| Steel grade | Austenitic Stainless Steel : 304,304L,316L,310S,316Ti,316LN,317L,321,347H,321,309S,314 Duplex Steel: 904L,UNS S32205, UNS S32750, UNS S32760, S30815(253MA),UNS32550,UNS S31254 Nickel Alloy Steel:625 (UNS N06625),600 (UNS N06600),601 (UNS N06601),718 (UNS N07718),Alloy 800/800H/800HT(UNS N08800/N08810/N08811),825 (UNS N08825),201 (UNS N02201),ect Hastelloy Steel: C-276/HASTELLOY C276/N10276/2.4819/Inconel 276,Hastelly B-2/UNS N10665/2.4617 ,Hastelloy B-3/Alloy B-3/ UNS N10675,Hastelloy C22 /UNS N06022 Monel Steel: Alloy 400/UNS N04400/Monel 400. |
| Surface/Interior | Polishing, Annealing, Pickling, Bright, Hairline, Mirror, Matte |
| Outer Diameter | 6~914mm/(1/8"~36") |
| Thickness | 1~45mm/Sch10s~Sch XXS |
| Length | 1500mm~12000mm,as customized. |
| Technique | Hot-rolled/Cold-rolled/Cold drawing |
| Price terms | EXW/FOB/CIF/CRF |
| GRADE | C |
MN |
SI |
P |
S |
CR |
MO |
NI |
N |
|
|---|---|---|---|---|---|---|---|---|---|---|
316L |
Min |
- |
- |
- |
- |
- |
16.0 |
2.00 |
10.0 |
- |
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
| GRADE |
TENSILE STR (MPA) MIN |
YIELD STR 0.2% PROOF (MPA) MIN |
ELONG (% IN 50MM) MIN |
HARDNESS | |
| ROCKWELL B (HR B) MAX | BRINELL (HB) MAX | ||||
316L |
485 |
170 |
40 |
95 |
217 |
| GRADE |
DENSITY (KG/M3) |
ELASTIC MODULUS (GPA) |
MEAN CO-EFF OF THERMAL EXPANSION (ΜM/M/°C) |
THERMAL CONDUCTIVITY (W/M.K) |
SPECIFIC HEAT 0-100°C (J/KG.K) |
ELEC RESISTIVITY (NΩ.M) |
|||
| 0-100°C | 0-315°C | 0-538°C | AT 100°C | AT 500°C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 74 |
| Chemical composition | |||||
| Grade | C | Si | Mn | Cr | Ni |
| 304 | ≤0.07 | ≤1.00 | ≤2.0 | 18.00~20.00 | 8.00~10.50 |
| 304L | ≤0.030 | ≤1.00 | ≤2.0 | 18.00~20.00 | 9.00~13.00 |
| 310S | ≤0.08 | ≤1.00 | ≤2.0 | 24.00~26.00 | 19.00~22.00 |
| 316 | ≤0.08 | ≤1.00 | ≤2.0 | 16.00~18.00 | 10.00~14.00 |
| 316L | ≤0.03 | ≤1.00 | ≤2.0 | 16.00~18.00 | 12.00~15.00 |
| 321 | ≤0.08 | ≤1.00 | ≤2.0 | 17.00~19.00 | 9.00~13.00 |
| 904L | ≤0.02 | ≤1.00 | ≤2.0 | 19.00~23.00 | 23.00~28.00 |
| 2205 | ≤0.03 | ≤1.00 | ≤2.0 | 22.00~23.00 | 4.5~6.5 |
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | 24.00~26.00 | 6.00~8.00 |
| Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Flanges, Fittings & Valves |
|---|---|---|---|---|---|---|
A790 |
A790 |
A789 |
A789 |
A240 |
A276 |
A182 |
| Cr | Ni | Mo | C | N | Mn | Si | P | S | Fe |
|---|---|---|---|---|---|---|---|---|---|
22.0-23.0 |
4.50-6.50 |
3.00-3.50 |
.030 Max |
0.14-0.20 |
2.00 Max |
1.00 Max |
.030 Max |
.020 Max |
Balance |
High resistance to pitting and crevice corrosion
Excellent in most caustic environments
Good weldability
To be considered Duplex 2205, a stainless steel must have a chemical composition that includes:
Cr 21-23%
Ni 4.5-6.5%
Mn 2% Max
Mo 2.5-3.5%
N 0.08-0.20%
P 0.30% max
C 0.030% max
This unique mix of materials makes Duplex 2205 the right choice for a number of different critical applications in a range of industries, including:
Chemical processing, transport, and storage
Marine and Land cargo tanks
Biofuel production
Food processing
Pulp and Paper manufacturing
Oil and gas exploration and processing
Waste management
High chloride environments
-
Surface
Finish
Definition and Application No.1 The surface is finished by heat treatment and pickling or processes corresponding theretoafter hot rolling 2D The finishes after cold rolling, by heat treatment, pickling or other equivalenttreatment 2B The finish after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to give an appropriate luster BA Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror NO.3 Polished with abrasive belt of grit#100~#200,have better brightness with discontinuous coarse stria NO.4 Polished with abrasive belt of grit#150~#180,have better brightness with discontinuous coarse stria HL Polished with abrasive belt of grit#150~#320 on the NO.4 finish and has continuous streaks 8K The product have excellent brightness and prefect reflexivity can be the mirror
Material 200 series: 201, 202 300 series: 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S,309S,2205,2507,2520 400 series: 410, 410S,420, 430, 431, 440A,904L Standard AISI, ASTM, DIN, GB, JIS, SUS Thickness 0.5mm-30mm as your request Size 8mm-530mm as your request Length 1 meters to 6 meters or as customer 's requirement Treatment/Technique Hot rolled, cold drawn, Annealed, Grinding Surface Satin,400#, 600~1000# mirrorx, HL brushed,Brushed Mirror(two kinds of finishing for one pipe) Applications Decorative /industrial/building material Trade Terms EXW, FOB, CFR, CIF Delivery time Shipped in 7-15 days after payment Package Standard sea-worthy package or as required SEAWORTHY PACKING 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM
Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from Φ6 toΦ762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from Φ15 to Φ2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.
Packing&Shipping
1) All standard steel products are stocked, timely shipping as per clients request. 2) Lead time generally about 15-30 working days after receiving the deposit.
3) Standard export package, suit for all kinds of transport, or as required.
4) If special requirements, may need longer delivery time.
