Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape

Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape thumbnail-1
Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape thumbnail-2
Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape thumbnail-3
Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape thumbnail-4
Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape thumbnail-5
Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape photo-1
Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape photo-2
Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape photo-3
Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape photo-4
Customizable Air Supported Rubber Dam / Inflatable Barrage, Automatic Water Control System for Irrigation and Landscape photo-5
US$ 300 20 - 49 Meters
US$ 200 50 - 99 Meters
US$ 190 ≥100 Meters
Key Specifications
Get Latest Price
Material:
EPDM
Usage:
Agricultural, Other, River damming
Transport Package:
Woven bag packaging
Contact Supplier Request Quote Chat Now
Hengshui Haogu Engineering Materials Co., Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material EPDM
Usage Agricultural, Other, River damming
Transport Package Woven bag packaging
Specification Custom-made according to the drawings
Trademark HaoGu
Origin Hebei China

Construction of Rubber Dams: Technical Protocol & Best Practices

Rubber dams—flexible, inflatable hydraulic structures fabricated from high-performance synthetic rubber—demand specialized construction workflows to ensure air/water tightness, structural durability, and reliable operation in low-head water management scenarios (e.g., irrigation networks, urban water features, flood mitigation systems). The process is centered on foundation rigidity, precise handling of the dam bag, and seamless integration of the inflation system, addressing the unique challenges posed by working with flexible materials. Below is a comprehensive, phase-by-phase breakdown of rubber dam construction, including technical specifications, quality control benchmarks, and industry-standard procedures.橡胶坝 (46)

1. Pre-Construction Phase: Planning & Preparation

Thorough pre-construction planning is critical to mitigate risks, align with design objectives, and ensure smooth execution—especially for the delicate dam bag and load-sensitive foundation.

1.1 Site Assessment & Design Validation

  • Hydrological & Geological Surveys:

    • Measure the watercourse’s width, average depth, and flow velocity to confirm dam dimensions (typical height: 1–5m; length: matching channel width to avoid flow bypass).

    • Conduct soil bearing capacity tests (minimum requirement: 150 kPa) to identify weak layers (e.g., silt, peat). For soils with low bearing capacity, design reinforcement measures (e.g., gravel backfilling, geotextile stabilization).

  • Layout Marking:

    • Use GPS or total station equipment to mark the dam’s centerline, foundation boundaries, and anchor bolt positions. For curved channels, adjust the layout to follow the natural contour—sharp bends cause uneven stress on the dam bag and increase leak risks.

  • Risk Mitigation Planning:

    • Develop contingency plans for weather disruptions (e.g., deploy wind barriers for dam bag installation in winds exceeding 5 m/s) and on-site repairs (stock vulcanization kits for rubber tears, spare gaskets for sealing joints).

1.2 Material Sourcing & Quality Verification

Key materials must meet strict performance standards to ensure long-term reliability. The table below outlines critical specifications and inspection criteria:
Component Technical Specifications & Inspection Checks
Rubber Dam Bag - Material: EPDM rubber (for freshwater) or neoprene (for harsh environments: saltwater, industrial runoff), reinforced with polyester/nylon fabric.
- Thickness: 3–10mm (consistent across the bag; no thin spots detected via ultrasonic testing).
- Performance: Tensile strength ≥15 MPa, elongation at break ≥400%, 24-hour pressure hold test (0.15 MPa, no pressure drop).
Anchoring System - Bolts: Hot-dip galvanized carbon steel (diameter 16–24mm); thread integrity verified (no burrs, stripped threads).
- Plates: Q235 steel (8–12mm thick); flatness ≤0.5mm/m (tested with a straightedge).
- Gaskets: EPDM rubber (no cracks, aging, or compression set; hardness 60±5 Shore A).
Inflation/Deflation System - Pumps: Air compressors (for air-inflated dams, flow rate ≥5 m³/h) or centrifugal water pumps (for water-inflated dams, head ≥10m).
- Pipes: PVC or galvanized steel (diameter 50–100mm); pressure rating ≥0.3 MPa (leak-tested at 1.5× design pressure).
- Valves: Solenoid (for automated control) or manual gate valves; operation tested for responsiveness (no sticking).
Auxiliary Materials - Protective Pads: Non-woven geotextile (weight ≥200 g/m²) or rubber sheets (5–10mm thick) to prevent dam bag abrasion.
- Trash Racks: Mild steel (mesh size 50×50mm); hot-dip galvanized for corrosion resistance.

橡胶坝 (39)1.3 Equipment & Safety Readiness

  • Machinery: Excavators (10–15 ton, for foundation digging), vibratory rollers (compaction force ≥20 kN, for soil compaction), 10–20 ton mobile cranes (equipped with soft nylon slings to avoid dam bag damage), air/water pumps (matched to inflation system requirements).

  • Safety Equipment: Non-slip work boots, nitrile gloves (to prevent rubber scratches), life jackets (for near-water operations), temporary fencing (to secure the construction zone), and first-aid kits (stocked for cuts, abrasions, and water-related emergencies).

2. Foundation Construction: Building a Stable Base

A rigid, level foundation is essential to distribute inflation pressure evenly and prevent dam bag displacement. This phase focuses on soil stabilization and precise concrete work.

2.1 Site Clearing & Excavation

  • Debris Removal: Clear rocks, tree roots, and vegetation from the construction area. For riverbed sites, dredge silt and organic matter to expose stable soil or bedrock (minimum depth: 500mm) to eliminate foundation settlement risks.

  • Trench Excavation:

    • Width = dam bag width + 2× anchor plate width (typically 1.2–2m, depending on dam size).

    • Depth = 600–1000mm (adjusted for soil stability; deeper for soft soils).

    • Dig a rectangular trench along the dam’s centerline. Dimensions:

    • Slope trench walls at 1:1.5 to prevent collapse during construction.

2.2 Foundation Reinforcement

  • Soil Stabilization:

    • For soils with bearing capacity

  • Concrete Base Pouring:

    • Pour a C30 reinforced concrete base (thickness 200–300mm) into the trench. Embed HRB400 steel reinforcement bars (diameter 12–16mm, spacing 200×200mm) to resist tensile stress and prevent cracking.

    • Use a laser level and screed board to ensure the concrete surface is level (flatness ≤3mm/m) and aligned with the dam’s centerline.

2.3 Anchoring System Installation

  • Bolt Positioning:

    • Use a precision steel template to place anchor bolts in the wet concrete. Ensure bolt spacing matches the dam bag’s edge holes (tolerance: ±2mm) to avoid misalignment during bag installation.

    • Extend bolts 100–150mm above the concrete surface (for dam bag clamping) and cover threads with plastic caps to protect against concrete contamination.

  • Concrete Curing:

    • Cover the concrete base with wet burlap or geotextile and cure for ≥14 days (maintain moisture to prevent shrinkage cracks). For temperatures

    • Test concrete compressive strength after 28 days (minimum requirement: 30 MPa) using cube samples before proceeding to dam bag installation.

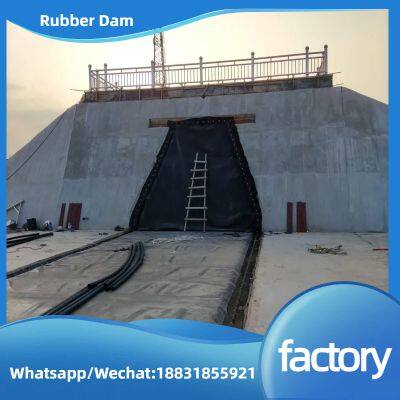

3. Rubber Dam Bag Installation: Precision Handling

The dam bag is the core functional component—installation requires careful handling to avoid damage, ensure alignment, and achieve air/water tightness.

3.1 Pre-Installation Preparation

  • Protective Layer Placement: Lay a geotextile or rubber pad over the entire concrete base (covers the trench and adjacent areas) to prevent the dam bag from abrasion by concrete aggregates or residual debris. Ensure the pad is flat and free of wrinkles.

3.2 Dam Bag Unfolding & Alignment

  • Unfolding:

    • For small dam bags (

    • For large dam bags (>20m long): Use a crane with soft nylon slings (attached to pre-installed lifting lugs on the dam bag) to lift and unroll. Keep the bag taut but not stretched (overstretching damages the fabric reinforcement and reduces lifespan).

  • Alignment:

    • Adjust the dam bag so its edge holes align with the anchor bolts (tolerance: ±5mm). Use string lines to verify alignment with the dam’s centerline.

    • Position the dam bag’s inflation valve near the pump station to minimize pipeline length and pressure loss.

3.3 Anchoring & Sealing

  • Edge Clamping:

    • Fold the dam bag’s edges over the anchor plates, ensuring EPDM gaskets are placed between the bag and plates to create a water-tight seal.

    • Tighten anchor bolts in a diagonal sequence (to distribute pressure evenly) to a torque of 30–50 N·m (use a torque wrench to avoid over-tightening, which tears the rubber).

  • Joint Vulcanization (for Multi-Section Bags):

    • Temperature: 140–160°C (monitored via thermocouples).

    • Pressure: 0.3 MPa (applied via hydraulic clamps).

    • Holding time: 15–20 minutes (varies by rubber thickness).

    • For dam bags longer than 30m (supplied in sections): Join sections using hot vulcanization:

    • After vulcanization, inspect the joint for uniformity and apply a 1–2mm thick layer of EPDM sealant to reinforce the bond.

  • Leak Testing:

    • Inflate the dam bag to 50% of the design pressure (typically 0.07–0.09 MPa) using the inflation system.

    • Spray a soapy water solution on anchor bolts, vulcanized joints, and the inflation valve. Bubbles indicate leaks—tighten loose bolts, reapply sealant, or re-vulcanize joints as needed.

4. Inflation/Deflation System Setup

The inflation system controls dam height and responsiveness—installation focuses on leak-proof connections and accurate pressure monitoring.

4.1 Pipeline & Equipment Installation

  • Piping Installation:

    • Connect the dam bag’s inflation valve to the pump station using PVC or galvanized steel pipes. Use flange joints with rubber gaskets (tightened to manufacturer specifications) to prevent leaks.

    • Support pipes with steel brackets (spaced every 2m) to avoid sagging and reduce stress on joints.

  • Pump & Valve Integration:

    • Mount air/water pumps on a concrete pad (elevated 100mm above ground to prevent water damage) and connect to the pipeline.

    • Install pressure gauges (range 0–0.3 MPa, accuracy ±0.01 MPa) and pressure relief valves (set to 1.2× design pressure) to protect the dam bag from over-pressurization.

    • For automated systems, integrate solenoid valves with a control panel (programmed for remote operation and pressure monitoring).

4.2 System Testing

  • No-Load Test: Operate the pump without pressurizing the dam bag to check for pipe blockages, valve responsiveness, and pump noise (no abnormal vibrations or cavitation).

  • Pressure Hold Test:

    • Inflate the dam bag to the design pressure (0.12–0.15 MPa) and close the control valve.

    • Monitor pressure for 24 hours—no pressure drop indicates a leak-free system. If pressure drops, use a ultrasonic leak detector to locate and repair faults (e.g., tighten flange joints, replace faulty gaskets).

5. Auxiliary Structures Installation

These components protect the dam bag and foundation, enhancing long-term performance and reducing maintenance needs.

  • Trash Racks: Install steel trash racks upstream of the dam (aligned with the channel width) to block debris (e.g., branches, rocks) from contacting the dam bag. Ensure racks are removable for periodic cleaning.

  • Downstream Protective Pads: Place rubber pads (5–10mm thick) along the downstream edge of the concrete foundation to reduce abrasion from flowing water or sediment.

  • Groundwater Drainage: Install perforated PVC pipes (diameter 100mm) behind the foundation, sloped at 1:100 toward the channel. This drains groundwater and prevents hydrostatic pressure from lifting the foundation.

6. Commissioning & Acceptance

  • Full-Scale Performance Testing:

    • Uniform inflation (no bulging or sagging).

    • Anchor bolt tightness (re-torque if necessary).

    • Leaks (no water seepage or pressure drop).

    • Inflate the dam bag to the design height and monitor for 72 hours. Check for:

    • Deflate the dam bag (ensure it collapses evenly onto the foundation) and repeat the inflation/deflation cycle 3 times to validate system reliability.

  • Documentation & Handover:

    • Compile construction records: material certificates, test reports (concrete strength, pressure hold, vulcanization quality), and photo documentation of key phases.

    • Conduct a joint inspection with the client, supervisor, and design team to verify compliance with specifications. Sign an acceptance certificate once all criteria are met.

Summary

Rubber dam construction requires meticulous attention to technical details—from foundation stability to dam bag sealing—to leverage the structure’s flexibility, cost-effectiveness, and low maintenance benefits. By adhering to strict material standards, precise installation techniques, and comprehensive testing, the final structure delivers reliable performance in low-head water control applications.


Product Tags: Inflatable rubber dam , Flood Control Rubber Sluice , Waterproof Rubber Dam
