ESD Workbench for Electronics Assembly - Adjustable Height, Pegboard & Lockable Cabinet, Heavy Duty Steel Engineering Table
Electronic assembly work requires a surface that doesn't fight back. Static discharge can destroy components worth hundreds of dollars in seconds — and the damage isn't always visible. This ESD workbench is built with that reality in mind: grounded steel frame, anti-static work surface, and a configuration that keeps tools organized so technicians spend time on the work, not looking for parts.
Built for Electronics Assembly Environments

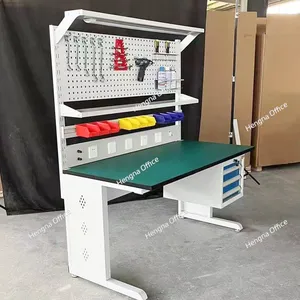

The work surface is a green anti-static laminate over a steel substrate. The surface resistance measures between 10^6 and 10^9 ohms — the range recommended by ANSI/ESD S20.20 for ESD-protected areas. The steel frame connects to a dedicated ground point, so any static on the operator's body discharges safely through the table instead of through your components.

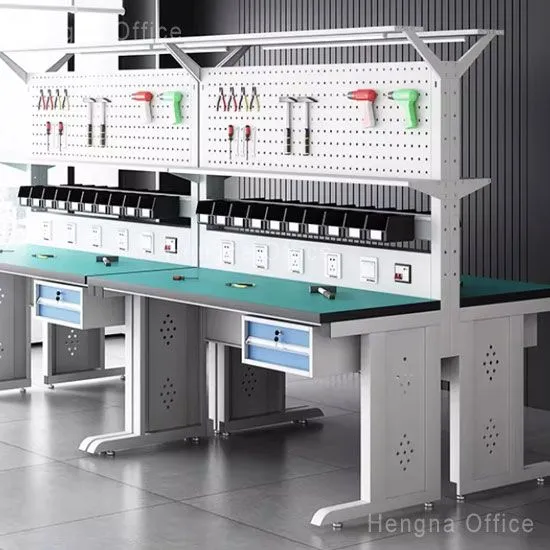

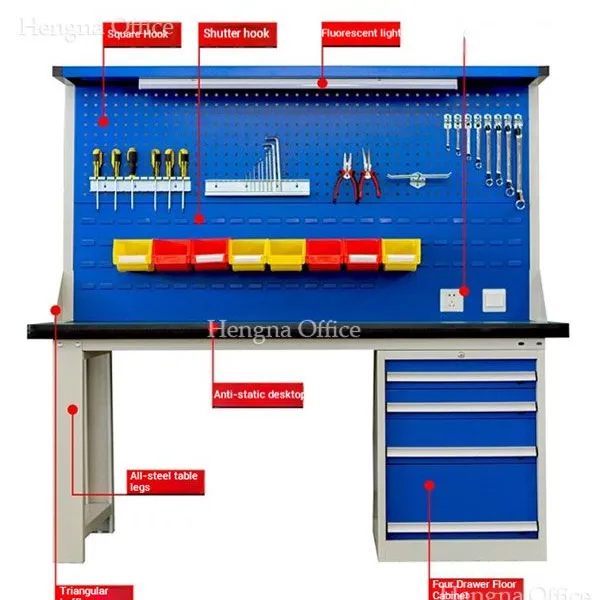

The back panel uses a pegboard design — 5mm holes on 25mm centers, compatible with standard pegboard hooks and holders. Tool silhouette boards above the work surface let technicians mount the most-used hand tools in the same position every time. For shops running 5S or lean operations, this isn't a convenience — it's a daily workflow requirement.
The lockable cabinet underneath stores expensive test equipment, sensitive components, or personal items during off-hours. One key controls all drawers and the cabinet door simultaneously.
Adjustable Height, Three Configurations
The table height adjusts from 29.5" to 41.3" (750mm to 1050mm), covering the ergonomic range for seated work, standing assembly, and inspection tasks. Adjustment uses a manual crank — no electricity required, no motor to fail during a production run.
Three drawer configurations are available:
| Configuration | Drawers | Cabinet Door |
|---|---|---|
| Basic | 1 drawer | — |
| Standard | 3 drawers | — |
| Full | 4 drawers | 1 door |
Drawer slides are full-extension ball bearing rails, rated for 50kg per drawer. Soft-close dampers prevent the bang-and-slam that disturbs a quiet electronics lab.
Technical Specifications
| Parameter | Specification |
|---|---|
| Work Surface | Anti-static laminate over steel, 59" × 23.6" (1500 × 600mm) |
| Height Range | 29.5" - 41.3" (750 - 1050mm) |
| Height Adjustment | Manual crank |
| Frame Material | Cold-rolled steel, 1.5mm thickness |
| Surface Finish | Powder coat (green work surface, gray frame) |
| ESD Performance | 10^6 - 10^9 ohms surface resistance |
| Back Panel | Pegboard, 5mm holes / 25mm pitch |
| Drawer Slides | Full-extension ball bearing, soft-close |
| Drawer Load Capacity | 50kg (110 lbs) per drawer |
| Locking System | One-key system for all drawers and cabinet |
| Net Weight | 132 lbs (60kg) |
Who Uses This Workbench
The combination of ESD-safe surface, pegboard organization, and under-table storage addresses the three biggest complaints in electronics repair and assembly shops:
A repair shop replacing aged wooden benches needs a grounded work surface that won't need replacing again in three years. An assembly line supervisor rolling out a new ESD-protected area needs documentation that supports their compliance audit. A vocational school outfitting an electronics program needs tables that survive student use without constant maintenance.
This unit covers all three without requiring custom fabrication or long lead times.
Why Steel Over Wood or Particleboard
Particleboard workbenches absorb moisture, delaminate near heat sources, and lose holding strength in screw joints after repeated assembly. In a humid repair shop or an air-conditioned clean room with dry air, particleboard behaves differently — which means your work surface consistency changes with the season.
Cold-rolled steel doesn't have this problem. The powder coat finish resists moisture, mild chemicals, and temperature variation. Frame rigidity also means the work surface stays flat under load — important when you're soldering near the edge and applying pressure to a component at the same time.
What Buyers Ask Before Purchasing
Q: Can I get the workbench at a fixed height instead of adjustable?
A: Yes. Fixed-height models are available at 30", 33", and 36" (760, 840, 915mm). Specify your height requirement when requesting a quote. Fixed-height units have a shorter lead time than adjustable models.
Q: Are replacement drawers available?
A: Yes. Drawer modules are sold individually and ship within 5 business days. Each drawer is pre-assembled with slides and the lock mechanism — installation requires only four bolts.
Q: What tools are needed for assembly?
A: Basic tools only: hex wrench (included), spirit level (recommended). The frame arrives partially assembled. Two people can complete assembly in 45-60 minutes. No welding, drilling, or power tools required.
Q: Can I customize the pegboard layout or add additional panels?
A: Additional pegboard panels can be mounted to either side of the frame. Custom hole patterns for specific tool holders are available for orders of 10 units or more.
Q: What is the delivery time for a sample order?
A: One to two units ships from stock within 5-7 business days. For orders of 5 or more units, lead time is typically 15-20 days depending on current production schedule.
