YZH BAN310 Breaker Boom System
Main parameters of YZH BAN310 Breaker Boom System：
The Scope of Work Diagram of YZH BAN310 Breaker Boom System：
The Features of YZH BAN310 Breaker Boom System：
YZH's B-series Breaker Boom System (including the BAN310 model) boasts the following key technical characteristics:
Structure and Swing: Featuring a classic straight-arm design, it achieves a wide 170° swing range, delivering flexible working coverage.
Drive and Control The arm employs a core electro-hydraulic drive system, offering both cab-mounted operation and remote control modes. This provides versatile operational options to adapt to diverse work scenarios.
Core Components and Materials: Critical components like the hydraulic breaker and chisel rod rely on imported parts, ensuring operational performance from the source. Primary structural elements are extensively manufactured from high-strength manganese steel and seamless steel pipes. Wear-prone critical areas specifically utilize HARDOX wear-resistant steel, while pins undergo high-temperature quenching treatment. This combination of robust materials and processes collectively forges the arm's exceptional durability.
Regarding working range and power, the boom offers extensive horizontal extension, adjustable between 4.88 meters and 20.4 meters. Its compatible hydraulic power units range from 30 to 75 kW, providing ample power support for diverse operational demands.
The Benefits of YZH BAN310 Breaker Boom System：
High Efficiency, Low Cost: Powered electrically, the Breaker Boom System incurs operating costs of only approximately 10-20 yuan per hour, significantly lower than equivalent crushing operations using excavators. It rapidly and effectively clears material jams at crusher discharge points, drastically reducing production downtime. Reports indicate this equipment can boost primary crusher output by up to 20%.
Safety and Environmental Protection: Remote control operation keeps workers away from hazardous areas, significantly enhancing workplace safety. The equipment operates with low noise levels and, being electrically powered, achieves zero emissions on-site, eliminating air pollution in the work environment.
Durability: Benefiting from optimized structural design and premium materials in critical components, the robotic arm exhibits exceptional overall durability. It reliably withstands harsh conditions in mining and similar environments while maintaining low long-term maintenance and servicing costs.
The Application of YZH BAN310 Breaker Boom System：
The YZH B-Series Breaker Boom System is widely deployed for secondary crushing operations in the following scenarios:
Mines and Quarries: Typically installed at the discharge point of primary crushing equipment like jaw crushers, specifically designed to rapidly break down large ore blocks that could cause production line blockages.
Aggregate Plants & Metallurgical Facilities: Processes oversized materials that fail to meet subsequent processing requirements within aggregate production lines or metallurgical workshops.

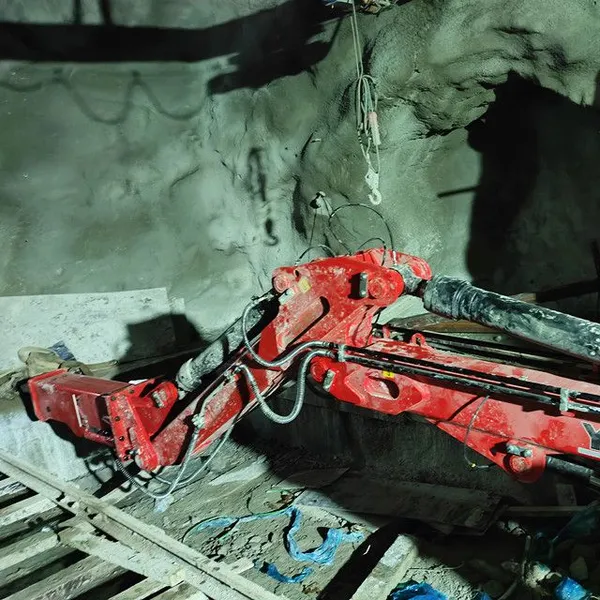

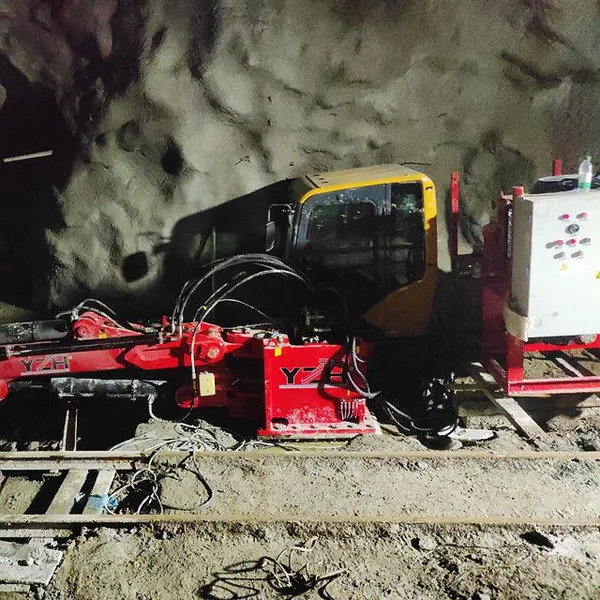

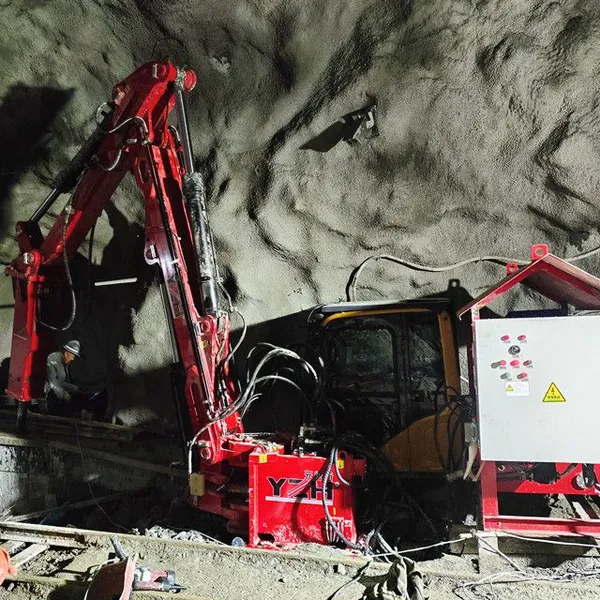

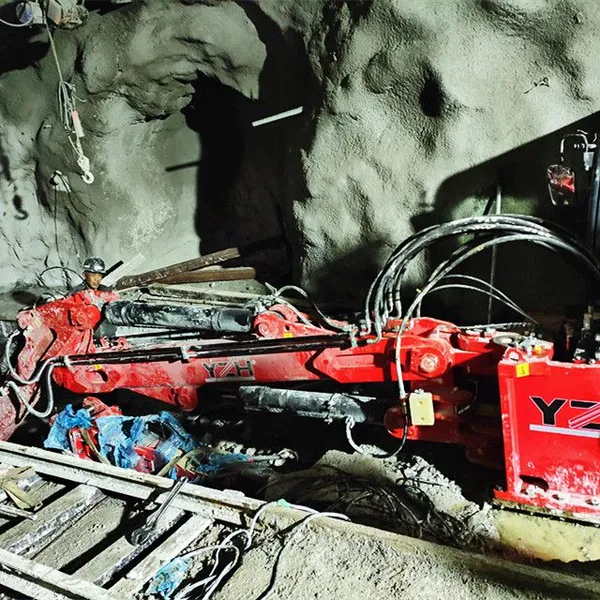

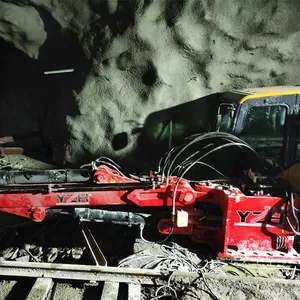

Underground Mines: Addresses common blockages caused by large ore pieces at chute openings or grid screens, ensuring uninterrupted underground production flows.
