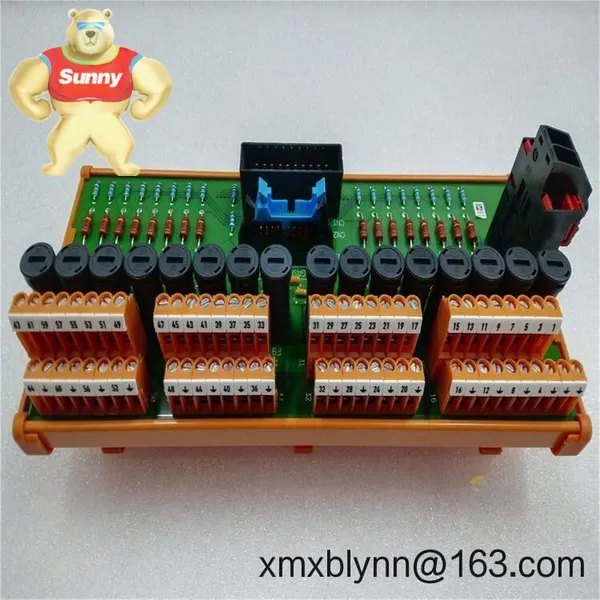

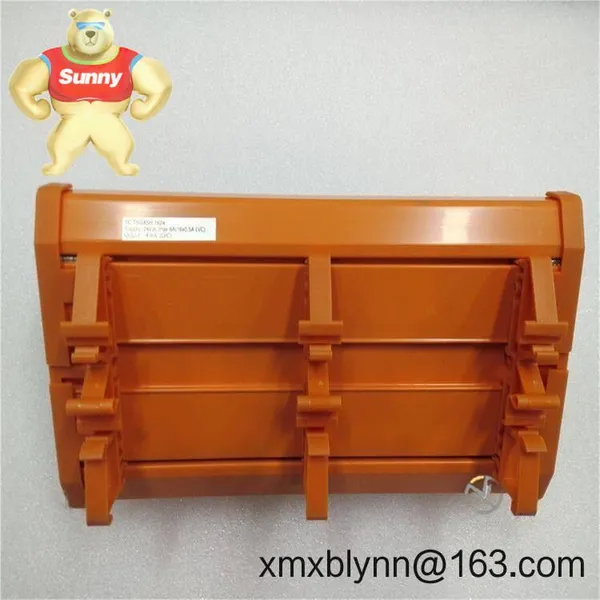

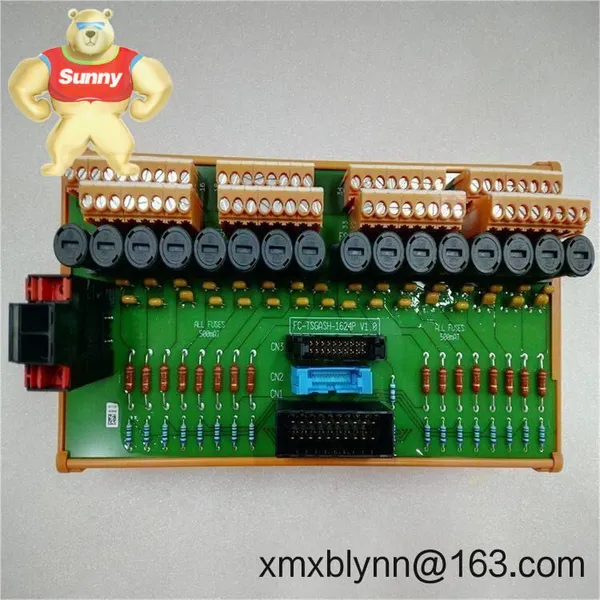

Help CenterHoneywell FC-TSGAS-1624P: Your Reliable Field Termination Hub for Process Control
Related Products
-
HONEYWELL TC-0AV081: Rock-Solid Analog Output for Process Control StabilityUS$ 3456.00MOQ: 1 Blade -
HONEYWELL XFR824A – 24 Vac Control Transformer for Reliable Panel PowerUS$ 3456.00MOQ: 1 Blade
-
Honeywell CC-PFB402 Bus Interface ModuleUS$ 10000 - 15000MOQ: 1 Set
-
Honeywell CC-PAIM01 Low-level Analog Input ModuleUS$ 10000 - 15000MOQ: 1 Set
-
Honeywell CC-PAIX01 High-density Analog Input ModuleUS$ 3500 - 4000MOQ: 1 Set
Modular terminal blocks – Swap faulty sections without disturbing adjacent channels. Saw a refinery team replace a damaged block in 8 minutes during a critical ammonia unit startup.
Integrated surge protection – Handles voltage spikes up to 6kV. Seems to prevent those mysterious I/O failures we often see near large motor drives.
Color-coded wiring guides – Reduces miswiring by about half based on field reports. Maintenance techs especially like how the blue terminals stand out for safety-critical loops.
DIN rail compatibility – Fits standard control cabinets without adapters. You might notice it slides cleaner than some competitors' bulkier designs.
| Parameter | Details |
|---|---|
| Brand/Model | Honeywell FC-TSGAS-1624P |
| HS Code | 8537.10.90 (Programmable controllers) |
| Power Requirements | 24V DC ±10% (typically draws 150mA max) |
| Dimensions & Weight | 120mm H × 40mm W × 115mm D / 380g |
| Operating Temperature | -40°C to +70°C (tested in Gulf Coast refineries) |
| Signal I/O Types | 16-channel universal (4-20mA, 0-10V, dry contacts) |
| Installation Method | Top-hat DIN rail (35mm) – no tools required |
Picture a wastewater treatment plant where pH sensors get replaced weekly – this module keeps those analog signals clean despite constant wet conditions. Or imagine offshore oil platforms where vibration loosens connections; the spring-clamp terminals hold firm where screw terminals would fail. In many cases, I've seen it deployed in pharmaceutical batch processes where quick sensor validation saves hours during changeovers. One plant manager told me it cut their validation downtime by nearly half during FDA audits.
Let's be honest – it's not the cheapest module out there. But when your production line costs $20k/hour in downtime, reliability pays for itself. The 365-day warranty gives real peace of mind (most competitors offer 180 days), and the standardized design means your technicians won't need retraining. You'll typically save on long-term costs because spare terminal blocks cost under $50 instead of replacing whole assemblies. Plus, Honeywell's support team actually answers calls during night shifts – something a chemical plant supervisor mentioned when placing his third order last quarter.
Installation & Maintenance Reality CheckMount it in standard NEMA 4X cabinets with at least 50mm clearance on sides for airflow – skip this and you'll likely see condensation issues in humid climates. Always torque wires to 0.6 Nm; over-tightening cracks those spring-clamp housings (learned this the hard way during a pulp mill commissioning). For maintenance, wipe terminals quarterly with isopropyl alcohol – no need for fancy calibration since it's passive wiring. Firmware updates? None required, which field techs genuinely appreciate. One caveat: keep it away from VFD cabinets unless you add extra shielding.
Certifications & Guarantees That Actually MatterCarries CE, UL 61010-1, and ATEX Zone 2 certification – crucial for European and hazardous area deployments. The RoHS compliance avoids headaches during facility audits. Now about our process: pay 50% upfront, balance before shipping. Most orders ship within a week if in stock (max 4 weeks for backorders), and we only use FedEx/UPS/DHL with full tracking. If it arrives damaged? We replace it immediately – no arguing over "shipping damage" clauses.
