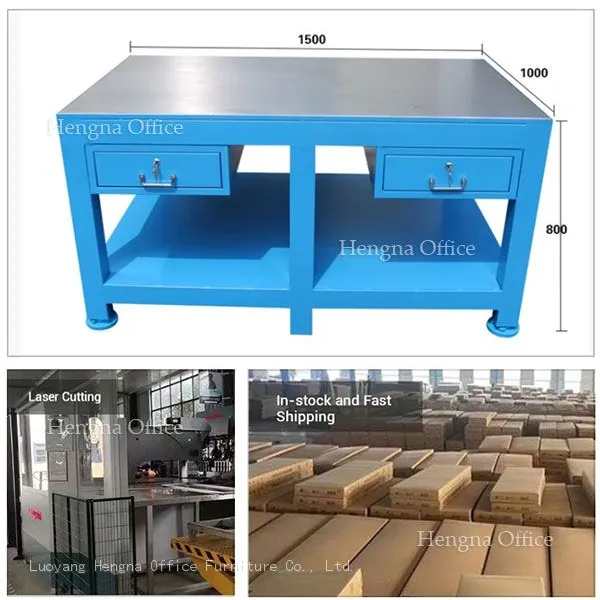

Help CenterHengna Anti-Static Heavy Duty Steel Workbench for Electronic Assembly Factory – ESD Safe Work Surface for SMT Production Line
Related Products
-
Heavy Duty Workbench With Steel Top and Built-in Tool Drawers Serving Garage, Workshop, and Mechanic ShopsUS$ 400 - 1200MOQ: 5 Combos -
Warehouse Logistics Heavy Duty Steel Workbench – Forklift Accessible Worktable for Cargo Sorting and Packaging ManufacturerUS$ 100 - 200MOQ: 5 Sets
-
China Manufacturer Hengna Industrial Steel Workbench With Adjustable Height and Heavy Load CapacityUS$ 400 - 1200MOQ: 5 Combos
-
Large Workbench With Storage Drawers and Metal Surface for Industrial Use-Global Workbench Manufacturer Based in LuoyangUS$ 400 - 1200MOQ: 5 Combos
-
Hengna Aerospace Maintenance Heavy Duty Steel Workbench – Corrosion Resistant Workstation for Aircraft Engine RepairUS$ 100 - 200MOQ: 5 Sets
In the highly sensitive environment of electronic manufacturing, particularly in Surface Mount Technology (SMT) production lines, static electricity poses one of the most significant threats to product quality and reliability. The Anti-Static Heavy Duty Steel Workbench for Electronic Assembly Factory represents the pinnacle of ESD-safe workstation design, engineered specifically to protect sensitive electronic components during assembly, testing, and packaging processes. This comprehensive solution combines robust construction with advanced static dissipation technology, creating an ideal workspace for modern electronic manufacturing facilities where component protection and operational efficiency are paramount.
Advanced ESD Protection System: Integrated static dissipation technology with surface resistance of 10^6 to 10^9 ohms, ensuring safe discharge of static electricity without damaging sensitive components
Heavy-Duty Steel Construction: Premium grade steel frame with reinforced support structure, capable of supporting up to 500kg of distributed load while maintaining perfect stability
Modular Design: Customizable configuration options including adjustable height, removable storage solutions, and interchangeable accessories to suit specific production requirements
Integrated Grounding System: Complete grounding infrastructure with multiple connection points for wrist straps, floor mats, and equipment grounding, ensuring comprehensive ESD protection
Durable ESD-Safe Work Surface: High-pressure laminate surface with anti-static properties, resistant to solder, chemicals, and mechanical wear while maintaining consistent electrical characteristics
Built-in Storage Solutions: ESD-safe drawers and lower shelf with conductive coating, providing organized storage for tools, components, and documentation without compromising static protection
Ergonomic Design: Height-adjustable work surface (750-900mm) with optional footrest and anti-fatigue matting, reducing operator strain during extended work periods
Cable Management System: Integrated cable trays and conduits for organized routing of power, data, and equipment cables, maintaining clean and safe workspace
| Specification | Details |
|---|---|
| Dimensions | 1800mm × 750mm × 750-900mm (W×D×H) |
| Load Capacity | 500kg distributed load |
| Surface Resistance | 10^6 - 10^9 ohms (per ANSI/ESD S20.20) |
| Frame Material | 2.0mm thick cold-rolled steel with powder coating |
| Work Surface | ESD-safe high-pressure laminate, 25mm thickness |
| Grounding System | Multiple 10mm grounding points with 1MΩ resistors |
| Drawer Configuration | 3 × ESD-safe drawers with ball-bearing slides |
| Lower Shelf | Conductive coated steel, adjustable height |
| Compliance Standards | ANSI/ESD S20.20, IEC 61340-5-1, ISO 9001 |
| Warranty | 5 years comprehensive warranty |
ESD Protection TechnologyStatic Dissipation MechanismThe workbench employs a multi-layered approach to static control:
Surface Layer: Anti-static laminate that gradually dissipates static charges
Conductive Layer: Carbon-impregnated intermediate layer for rapid charge distribution
Grounding Network: Copper grounding grid integrated into the work surface
Frame Grounding: Steel frame connected to earth ground through 1MΩ resistors
Optional ESD monitoring capabilities include:
Real-time surface resistance measurement
Ground continuity verification
Environmental humidity and temperature tracking
Alert system for ESD protection failures
Perfectly suited for printed circuit board assembly operations where static-sensitive components are handled extensively. The workbench provides a safe environment for manual and automated placement processes, ensuring component integrity throughout the assembly cycle.
Quality Control and Testing AreasIdeal for inspection and testing stations where electronic assemblies undergo functional testing. The ESD-safe surface prevents static discharge during sensitive testing procedures, protecting both the product and test equipment.
Component Preparation AreasExcellent for component preparation stations where ICs, transistors, and other static-sensitive devices are unpackaged, inspected, and prepared for assembly. The integrated storage solutions keep components protected while maintaining easy accessibility.
Provides a safe workspace for repair and rework operations where failed components are removed and replaced. The robust construction supports soldering equipment while maintaining ESD protection throughout the rework process.
Benefits for Electronic ManufacturingEnhanced Product QualityBy eliminating static-related failures, manufacturers can significantly reduce defect rates and improve overall product reliability. The comprehensive ESD protection ensures that sensitive components remain protected throughout the manufacturing process.
Operational EfficiencyThe ergonomic design and integrated storage solutions streamline workflow processes, reducing operator movement and minimizing handling time. The modular configuration allows for easy adaptation to changing production requirements.
Compliance AssuranceMeeting international ESD protection standards ensures compliance with industry requirements and customer specifications. The documented testing and certification process simplifies quality audits and certification procedures.
Cost ReductionReduced component failure rates translate directly into lower manufacturing costs. The durable construction and long service life minimize replacement and maintenance expenses, providing excellent return on investment.
Installation and MaintenanceInstallation RequirementsClean, level floor surface with access to proper grounding
Adequate space for operator movement and equipment access
Proper electrical grounding connection following local electrical codes
-
Initial ESD testing and certification before operational use
Daily surface cleaning with approved ESD-safe cleaners
Weekly grounding system verification
Monthly surface resistance testing
Quarterly inspection of mechanical components
Annual comprehensive ESD system certification
Rounded edges and corners to prevent injury
Non-slip surface coating for secure component handling
Emergency stop integration capability for automated systems
Proper weight distribution to prevent tipping
Surge protection for integrated power outlets
EMI shielding for sensitive electronic equipment
Vibration damping for precision equipment mounting
Thermal protection for high-temperature applications
Recyclable steel construction with minimal environmental impact
Low-VOC surface coatings for improved air quality
Energy-efficient manufacturing processes
End-of-life recycling program available
Optional LED task lighting with motion sensors
Power management systems for equipment
Low-resistance grounding reduces energy consumption
-
Efficient heat dissipation reduces cooling requirements
