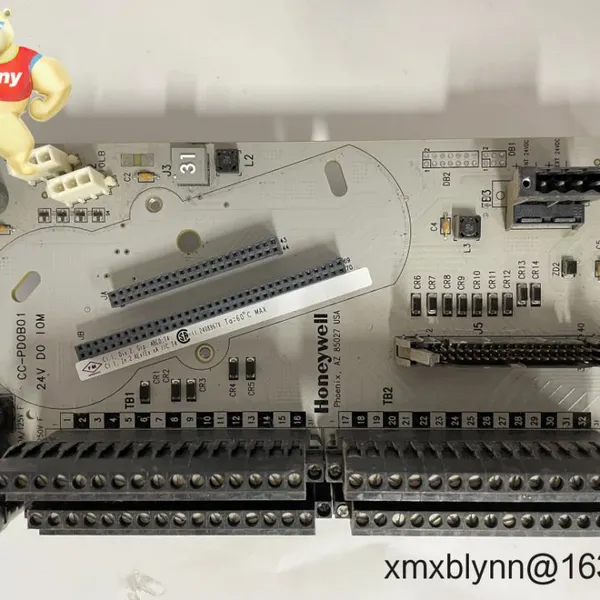

Help CenterHoneywell CC-TDOB01: Your Workhorse for Reliable Digital Output Control
Related Products
-
Honeywell CC-TDIL11: Your Reliable 16-Channel Digital Input Workhorse for Industrial Signal CaptureUS$ 216.00MOQ: 1 Blade -
Honeywell 05704-A-0144 Four-Channel Catalytic Input Control Card: Precision Gas Detection for Hazardous EnvironmentsUS$ 2126.00MOQ: 1 Blade
-
Honeywell FF-SB12R04K-S2: Your Fieldbus Safety Net for Critical ProcessesUS$ 2126.00MOQ: 1 Blade
-
Honeywell FF-SB12E04K-S2: Your Foundation Fieldbus I/O Workhorse for Process ControlUS$ 2126.00MOQ: 1 Blade
-
Honeywell SC-UCMX01-51307195 (SC-UCMX01-513) Communication Module: Seamless PLC IntegrationUS$ 2126.00MOQ: 1 Combo
8 isolated relay outputs (3A @ 30VDC) – You can directly drive small motors or valves without extra contactors. One food processing client told me this cut their panel wiring time by nearly 40%.
Universal 24VDC input compatibility – Seems to play nicely with most PLCs out there, whether you're running Allen-Bradley or Siemens systems. No more scrambling for level-shifters.
Modular DIN-rail mounting – Snaps in cleanly alongside other Experion controllers. In many cases, I've seen maintenance teams swap these in under 5 minutes during unplanned downtime.
Front-panel status LEDs – Those little green indicators? Lifesavers when debugging at 2 AM. You’ll typically spot a stuck relay way faster than with buried terminal blocks.
| Spec | Details |
|---|---|
| Brand/Model | Honeywell CC-TDOB01 |
| HS Code | 8537.10.0090 (Programmable controller I/O modules) |
| Power Requirements | 24VDC ±15%, 350mA max |
| Dimensions & Weight | 40mm W × 125mm H × 115mm D / 380g |
| Operating Temp | -20°C to +55°C (no derating needed) |
| Outputs | 8 Form C relays (3A @ 30VDC resistive) |
| Installation | Standard 35mm DIN rail (IEC 60715) |
You'll find these humming away in places where output reliability is non-negotiable—like chemical batch reactors triggering valve sequences, or automotive paint shops managing conveyor stops. One wastewater plant engineer mentioned how its vibration resistance outlasted cheaper modules near dewatering centrifuges. It’s not for high-speed motion control, but for those 95% of applications where "just work" is the only spec that matters.

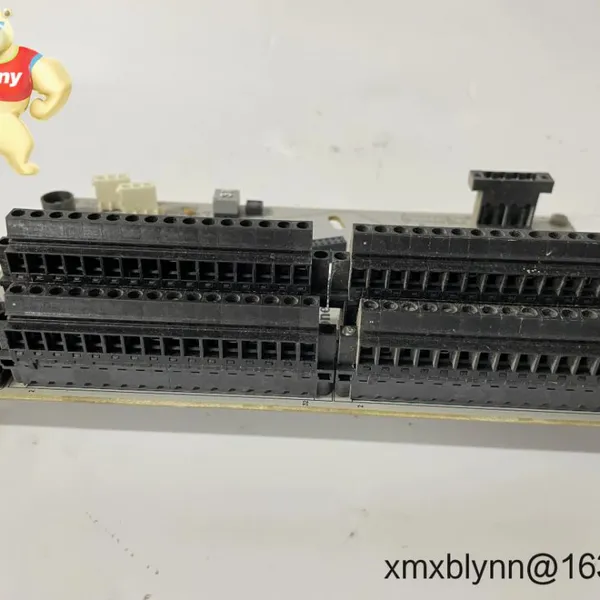

Let's be real—your boss cares about uptime costs more than specs. The CC-TDOB01's 365-day warranty (not just "1 year") covers you through seasonal maintenance cycles, and Honeywell's global service network means you won't wait weeks for replacements. Compatibility with legacy Experion systems typically avoids costly controller upgrades. Oh, and those screw-terminal connections? Less field errors during installation translates to fewer "why is production down?" calls at midnight.
Keep It Running SmoothlyMount it in a NEMA 12 cabinet with at least 50mm clearance on sides for airflow—those relays do generate some heat under load. Avoid cramming it next to VFDs; keep signal wiring separated by 200mm minimum. Check terminal torque quarterly (0.5 Nm is ideal), and wipe dust off vents during scheduled stops. Firmware updates? Rarely needed, but Honeywell pushes them through Experion Asset Manager when required. One caveat: don't exceed 3A per channel continuously, or you'll wear contacts faster than expected.
No Surprises HereIt ships with CE, UL 61010-1, and RoHS certifications stamped right on the label—no hunting through manuals. The 365-day warranty starts from shipment date, covers defects in materials/workmanship, and includes return shipping. For ordering: 50% upfront gets it pulled from stock (typically ships in 1 week), balance before FedEx/UPS/DHL dispatch. Worst-case scenario? You'll wait no more than 4 weeks even for backordered units. No fine print about "excludes industrial abuse"—if a forklift hits your cabinet, that's on you.
