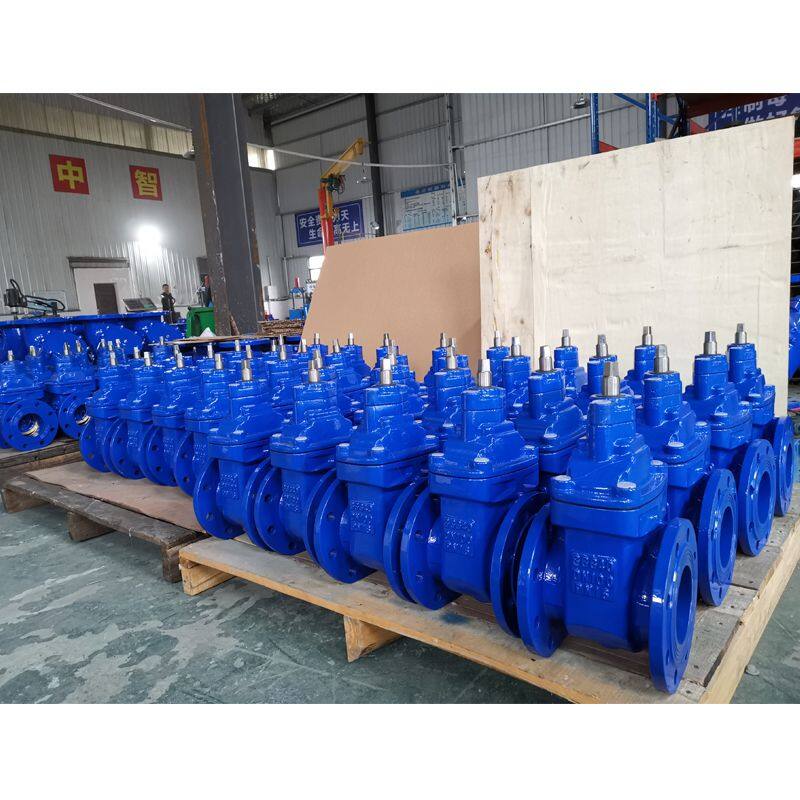

High-Strength DIN F4 Metal Seat Gate Valve – Cast Iron Disc & Graphite Packing (F2-F5 F2F)

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Cast Iron

Type:

Other, metal seat gate valve

Application:

Industrial Usage

Chengxin Valve Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Material Cast Iron

Type Other, metal seat gate valve

Application Industrial Usage

Standard DIN

Media Water

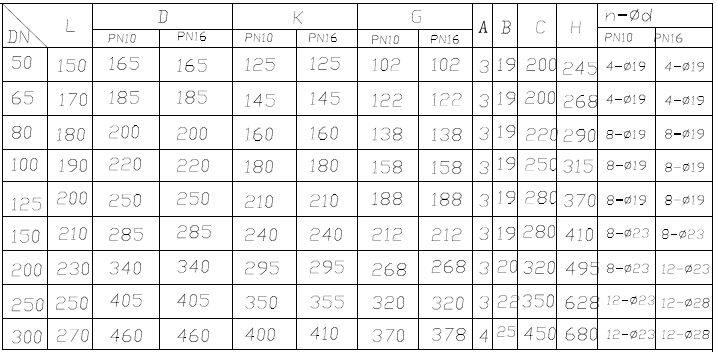

DIN F4 metal seat Gate Valve Standard:

Production Size:2"-12"

Pressure range:PN10,PN16

Design Standard:DIN3352

Face to Face:DIN 3202 F4,F5

Flange Standard:DIN 2501/2 EN 1092

Testing Standard:EN 12226/ISO5208

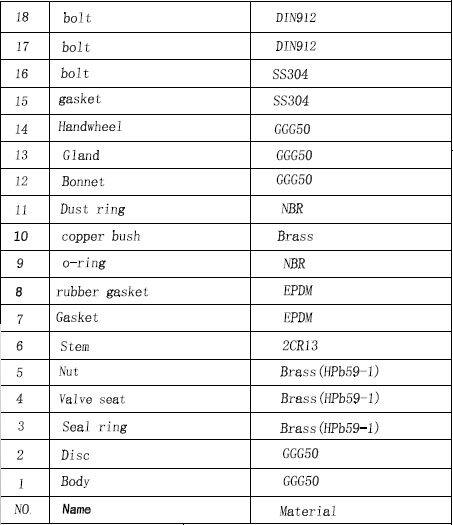

DIN F4 metal seat Gate Valve main material of parts:

Body:Ductile Iron/Cast Iron

Bonnet:Ductile Iron/Cast Iron

Stem:2Cr13/SS304/SS316/Carbon Steel

Stem Nut:brass

Wedge Ring:Bronze B62/Brass

Disc:Ductile Iron/Cast Iron

Seat:Bronze B62/Brass

Bonnet Gasket:Graphite

Packing:Graphite

Hand wheel:Ductile Iron/Cast Iron

Key Features

Reliable Sealing Performance: Equipped with Bronze B62 or Brass seats, which ensure tight sealing and effectively minimize leakage risks in various industrial application scenarios.
Durable Construction: Main components including the body, bonnet, and disc are made of ductile iron or cast iron, providing excellent structural strength and strong resistance to wear and tear, extending the valve’s service life.
Corrosion Resistance: Optional SS304 or SS316 stems offer strong corrosion resistance, making the valve suitable for use in harsh or corrosive environments such as chemical processing plants and water treatment facilities.
Standard Compliance: The valve is designed in accordance with DIN3352 and tested based on EN 12226/ISO5208, ensuring good compatibility and interchangeability with standard piping systems in global markets.
Easy Operation: It is fitted with a ductile iron or cast iron hand wheel, which enables smooth and labor-saving opening and closing operations, reducing operational difficulty for users.
