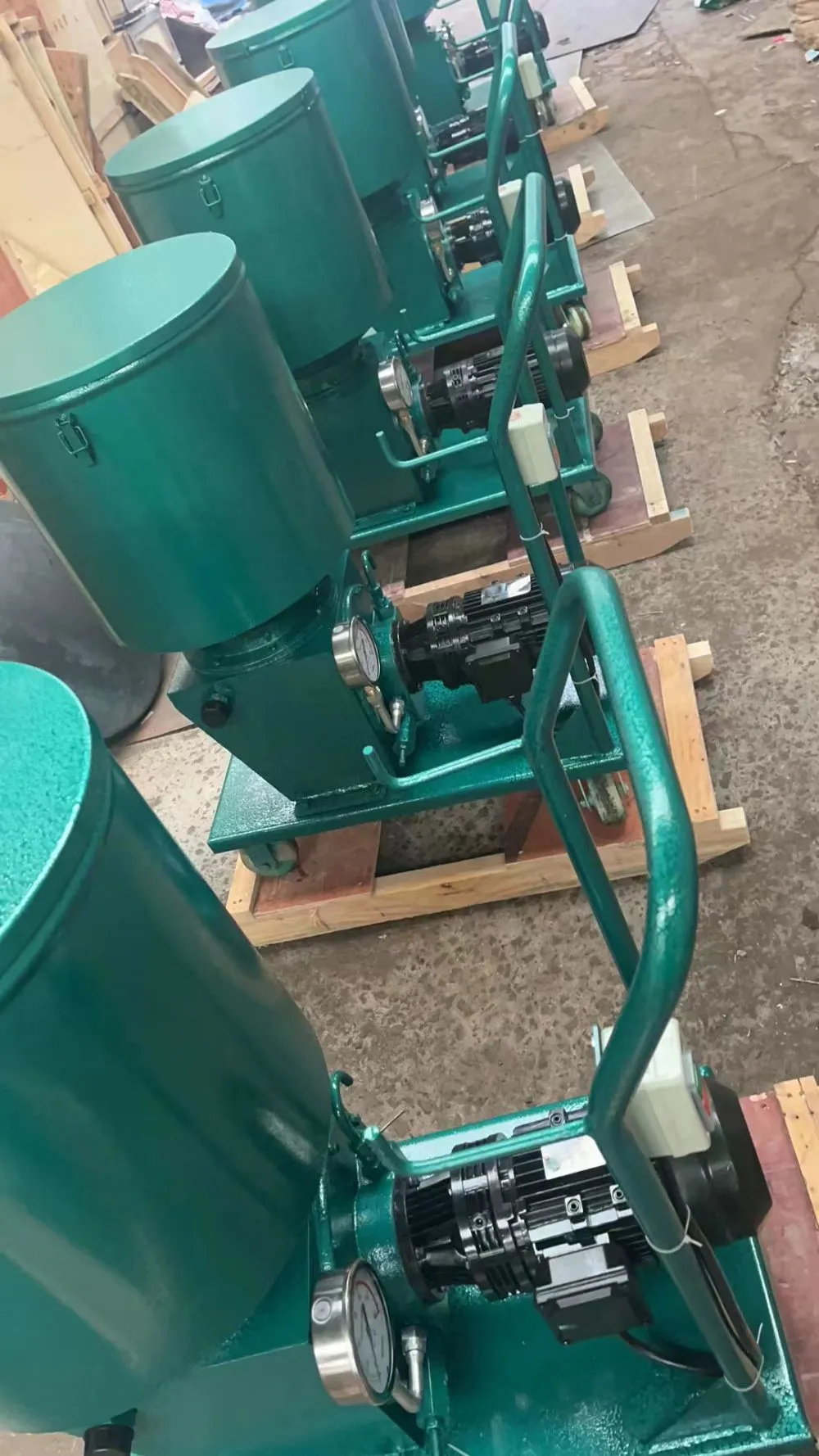

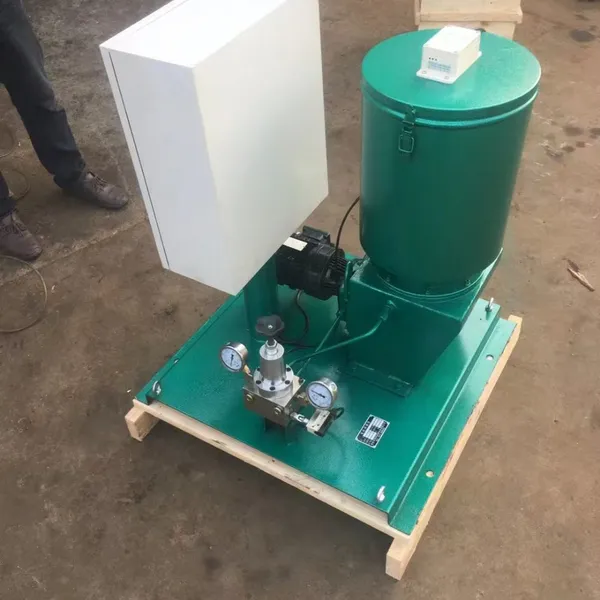

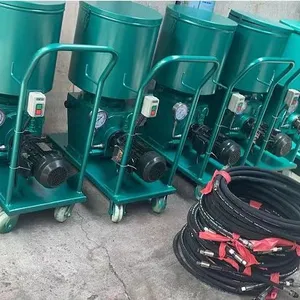

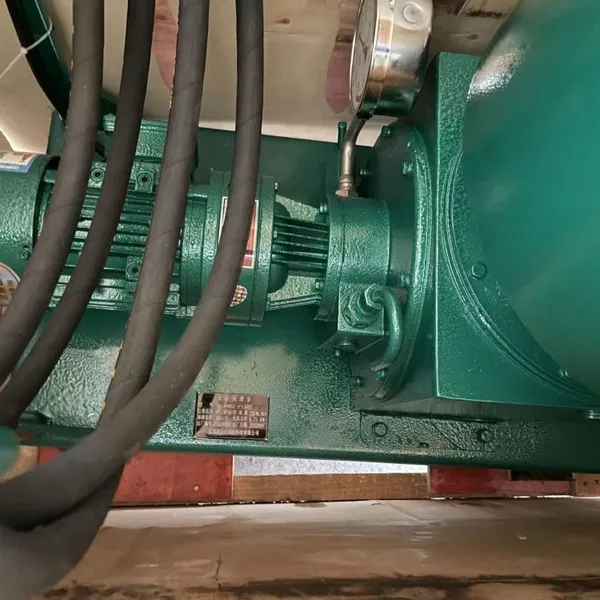

DRB-P electric grease lubrication pump
used to supply grease both in 40 Mpa pressure dual linecentralized lubrication system and single line centralized lubrication system. Widely used for medium/large equipment in metallurgy, mining, chemical, power plant, building materials, sugaring, and building industry.
Features
1.high pressure electric lubrication pump.
2.Tank is fitted with Oil level automatic alarm device.
3.Operating pressure is adjustable in the nominal pressure range with Double overload protection
4.Full automatic control and monitor the whole lubrication system when fitted with electric control panel.
model |
nominal pressure |
flow rate |
tank |
motor |
voltage |
temp ºC |
weight |
DRB1-P120Z |
40MPa |
120ml/min |
30L |
0.37KW |
380V |
0~80 |
56kg |
DRB2-P120Z |
0.75KW |
-20~80 |
64kg |
||||
DRB3-P120Z |
60L |
0.37KW |
0~80 |
60kg |
|||
DRB4-P120Z |
0.75KW |
-20~80 |
68kg |
||||
DRB5-P235Z |
235ml/min |
30L |
1.5KW |
0~80 |
70kg |
||
DRB6-P235Z |
60L |
74kg |
|||||
DRB7-P235Z |
100L |
82kg |
|||||
DRB8-P365Z |
365ml/min |
60L |
74kg |
||||
DRB9-P365Z |
100L |
82kg |
Lubricants: grease with penetration of no less than 220(25°C,150g) 1/10mm and lubricant oils with viscosity of no less than N68.
Temperature: from -20°C to 80°C
