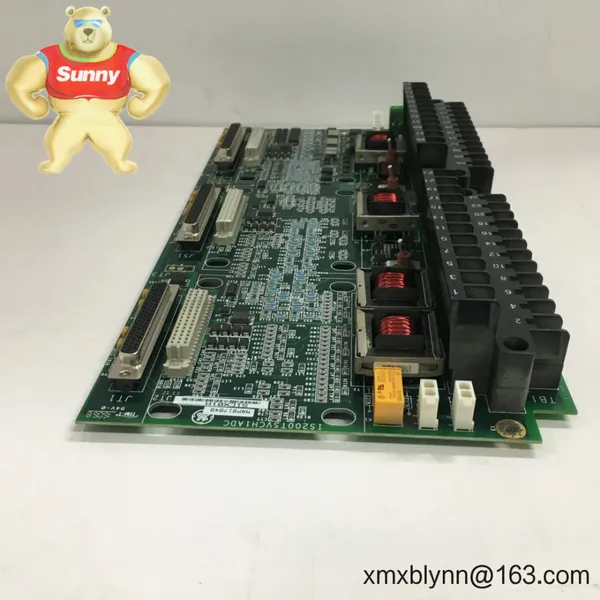

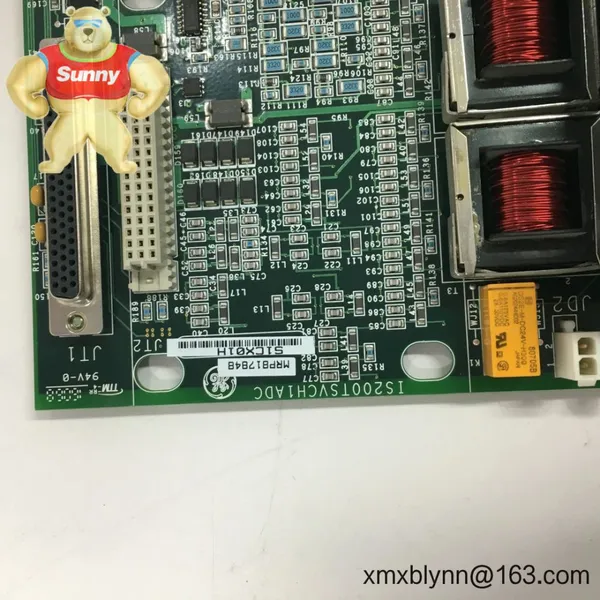

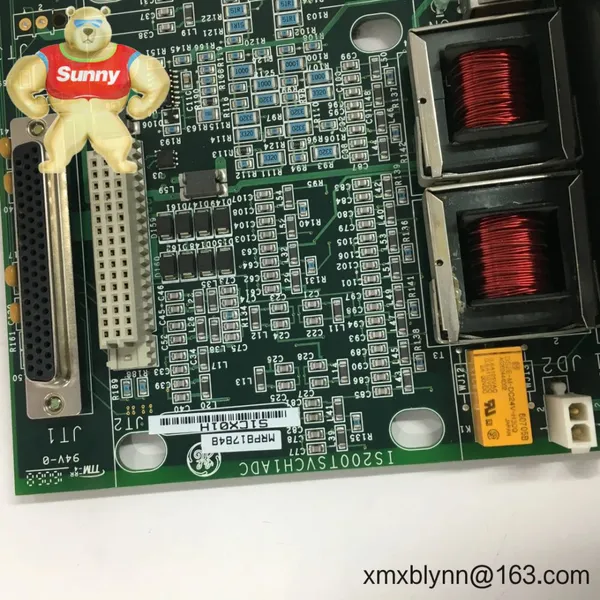

Help CenterGE IS200TSVCH1ADC (S1CX01H): Your Mark V Servo System's Silent Workhorse
Related Products
-
GE IS200TDBTH6ACD: Your Go-To I/O Terminal Board for Rock-Solid Turbine Control SystemsUS$ 2300.00MOQ: 1 Blade -
GE IS200TSVCH1AED Servo I/O Terminal Board: Precision Motion Control for Turbine SystemsUS$ 2300.00MOQ: 1 Blade
-
GE IS200VPROH1BEF: Your Turbine's Last Line of Defense When Seconds CountUS$ 2300.00MOQ: 1 Blade
-
GE IS200VPROH2B: Your Turbine's Emergency Shutdown GuardianUS$ 2300.00MOQ: 1 Blade
-
GE IS200VPWRH1AHD: Your Turbine's Last Line of Defense During Critical FailuresUS$ 2300.00MOQ: 1 Blade
Dual-channel isolation – Keeps 4-20mA signals clean even when your plant's grounding system isn't perfect (common in retrofitted facilities)
S1CX01H terminal assembly – Those spring-clamp connectors? They won't loosen during turbine startups like screw terminals often do
Hot-swap ready – Swap it without killing power to the whole rack – crucial during tight outage windows
Native Mark V compatibility – No firmware tweaks needed; it talks to TCQC/TCQB cards like they're old friends
| Specification | Details |
|---|---|
| Brand/Model | GE IS200TSVCH1ADC with S1CX01H terminal assembly |
| HS Code | 8537.10.9090 (Programmable controllers - verify with customs) |
| Power Requirements | 24VDC ±10% (sourced from TCQC backplane) |
| Operating Temp | -25°C to +70°C (typical for Mark V control rooms) |
| Signal I/O | 4x isolated 4-20mA outputs, 2x servo valve feedback inputs |
| Installation | DIN-rail mounted in Mark V VCRC or VCRD cabinets |
From my experience, this board lives in the gritty spots: gas turbine control cabinets near compressor inlets where oil mist hangs in the air, or hydro plant governors that run 24/7 through monsoon seasons. One utility client in Texas actually uses it as their standard servo interface for Mark V retrofits – they've standardized on it because field techs can replace it in 8 minutes during a forced outage. You might notice it's not for brand-new systems (obviously), but for keeping legacy turbines humming until that next major upgrade cycle.
Let's be real – you're not buying this for flashy features. It's about avoiding $50k/hour turbine downtime. In many cases, the real savings come from compatibility: no need to rewrite logic or retrain staff. From what I've seen, plants using genuine GE terminal boards like this one typically clear servo calibration issues 60% faster than with third-party clones. And should something go sideways, you'll get 365 days of coverage – no arguing about "unauthorized modifications" like with some knockoffs.
Keep It Happy Behind the Cabinet DoorDon't overcomplicate installation – just mind the basics. Mount it vertically in standard 35mm DIN cabinets (VCRC cabinets work best), keep it away from VFDs that throw electrical noise, and leave 50mm breathing room above/below. One caveat: those spring terminals hate dust bunnies, so blow them out quarterly with dry air. Calibration? Only needed if you're seeing >0.5% signal drift – most plants check it during annual outages. Oh, and ignore those "firmware update" pop-ups; this board's logic is baked in hardware.
No Surprises at Customs or CommissioningIt ships with full CE and UL 61010-1 markings – no last-minute certification scrambles. The 365-day warranty covers actual failures (not "doesn't play nice with your hacked logic"), and here's how ordering works: 50% upfront gets it pulled from stock, then full payment before we ship via your choice of FedEx/UPS/DHL. In-stock units ship in a week; if we need to pull it from our Rotterdam hub, you'll have it in under a month. No games, just like the board itself.
