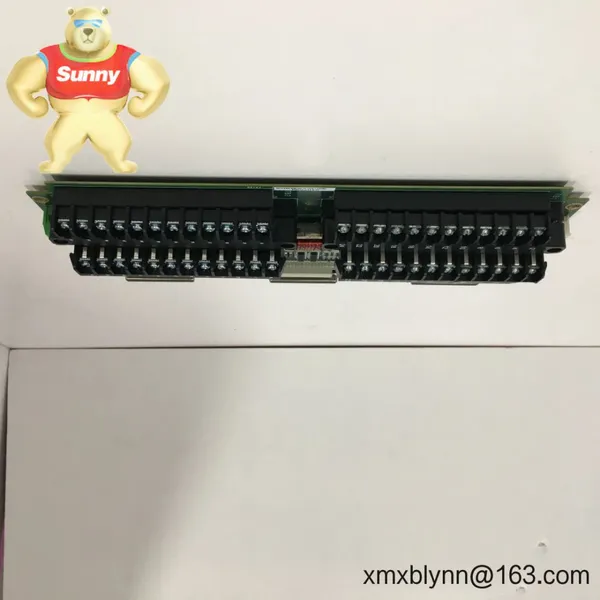

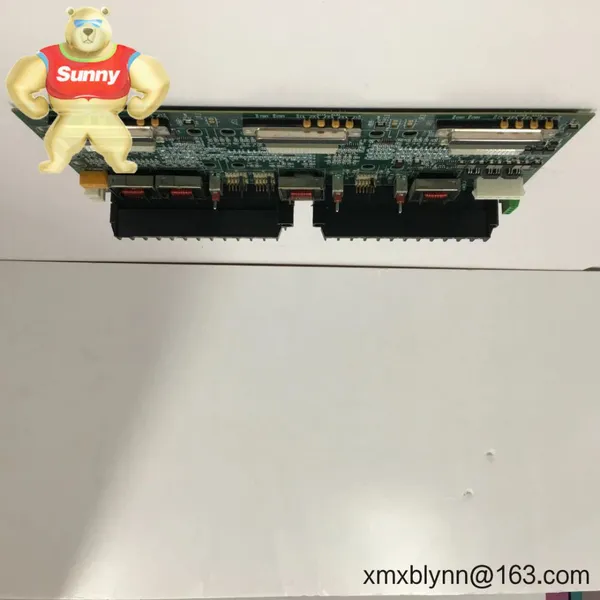

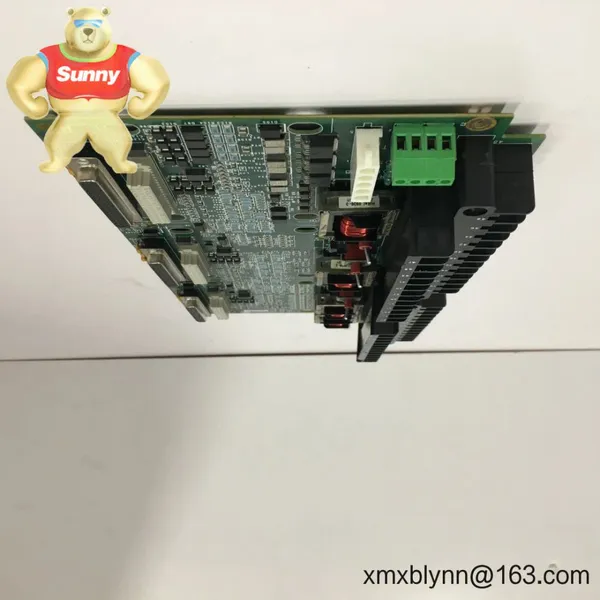

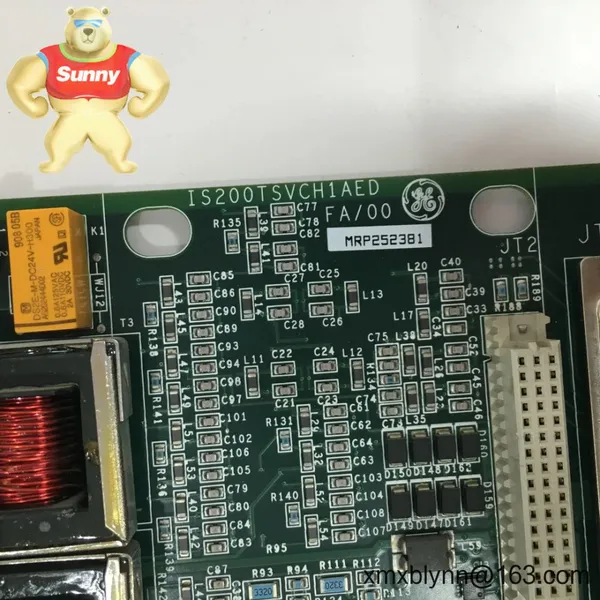

Help CenterGE IS200TSVCH1AED Servo I/O Terminal Board: Precision Motion Control for Turbine Systems
Related Products
-
GE IS200VPROH1BEF: Your Turbine's Last Line of Defense When Seconds CountUS$ 2300.00MOQ: 1 Blade -
GE IS200VPROH2B: Your Turbine's Emergency Shutdown GuardianUS$ 2300.00MOQ: 1 Blade
-
GE IS200VPWRH1AHD: Your Turbine's Last Line of Defense During Critical FailuresUS$ 2300.00MOQ: 1 Blade
-
GE IS200VRTDH1D: Reliable Temperature Monitoring for Turbine Control SystemsUS$ 2300.00MOQ: 1 Blade
-
GE IS2020RKPSG3A: The Power Supply That Keeps Your Line Running When Everything Else FaltersUS$ 2300.00MOQ: 1 Blade
Hot-swappable design – Swap modules without killing your entire control rack. In most plant outages I've seen, this shaves 20+ minutes off module replacements.
Isolated analog I/O – Handles ±10V signals with 0.1% accuracy. You might notice fewer calibration drifts during summer humidity spikes compared to non-isolated boards.
Modular terminal blocks – Color-coded for servo pairs. Field techs tell me this cuts wiring errors by nearly half during retrofits.
LED status per channel – No more multimeter checks for basic diagnostics. That green blink pattern? Usually means "I'm fine, check the valve."
| Parameter | Specification |
|---|---|
| Brand/Model | GE IS200TSVCH1AED |
| HS Code | 8537.10.0090 (Programmable controllers) |
| Power Requirements | 24V DC ±10% (1.2A typical) |
| Operating Temp | -40°C to +70°C (condensation-free) |
| Signal I/O | 8 servo channels (±10V analog output) |
| Installation | DIN-rail mount (35mm) in Mark VIe chassis |
This isn't some generic I/O board – it lives where precision matters. Think combined-cycle power plants tweaking fuel valves during load ramps, or LNG facilities controlling compressor surge. One refinery engineer mentioned how it smoothed out their hydrogen compressor surges during monsoon season. Typically, you'll find it in Mark VIe racks handling critical motion loops where a 5ms delay could mean flameout.
Beyond "it works," here's what moves the needle: Direct Mark VIe compatibility means no protocol headaches during integration. That hot-swap feature? Translates to roughly $18k saved per unplanned outage hour in a 500MW plant. And GE's firmware updates usually roll through without reconfiguring your entire I/O map – something I've seen trip up cheaper third-party alternatives. The 365-day warranty covers firmware-related hiccups too, which matters when your control system's heartbeat depends on this board.
Installation & Maintenance Reality CheckMount it in standard 19" cabinets with at least 100mm clearance above – that Mark VIe chassis gets toasty. Avoid routing 480V power cables alongside signal wires; I've traced intermittent faults to that mistake more times than I'd like. For maintenance: blow out dust quarterly (compressed air below 30 PSI), check terminal torque annually, and update firmware during planned outages. One caveat: don't skip the grounding strap when swapping modules – static kills these faster than voltage spikes.
Quality You Can VerifyCE, UL 61010-1, and ISO 9001 certified – check the board's silkscreen for marks. RoHS 3 compliant since 2020 revisions. The warranty's straightforward: 365 days from installation date covering defects (excluding physical damage from improper handling). If you're swapping boards during a midnight outage, GE's support usually pushes firmware patches within 48 hours for critical fixes.
Ordering Made PredictableDelivery: 1 week for in-stock units, max 30 days if backordered
Payment: 50% advance, balance before shipment
Shipping: FedEx/UPS/DHL with real-time tracking – no freight brokers
