Home > Construction & Decoration > Wire Mesh > Stainless Steel Wire Mesh > AISI304 Stainless Steel Wire Bird Cage Diamond Ferrule Rope Mesh 25*40 Mesh Size Black Finish for Zoo Enclosures Factory Cutting

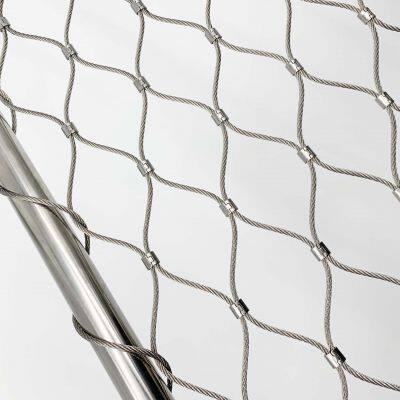

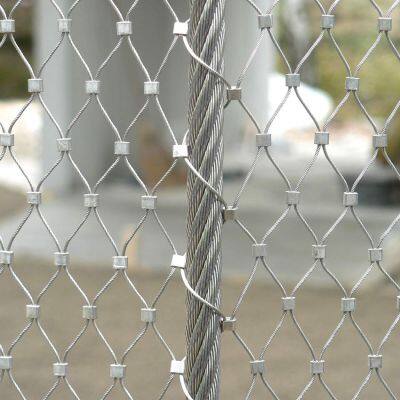

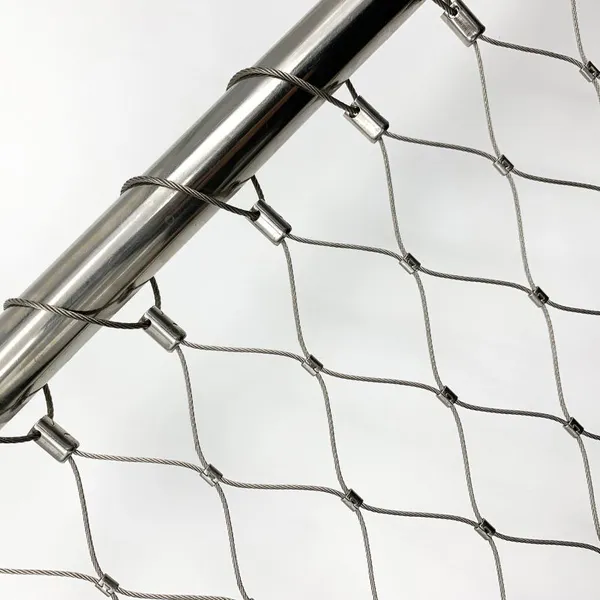

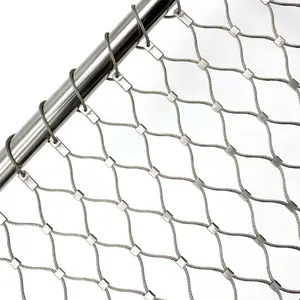

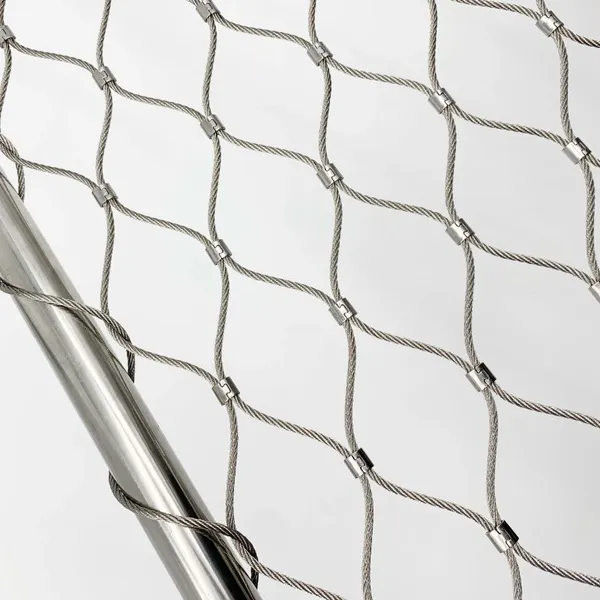

AISI304 Stainless Steel Wire Bird Cage Diamond Ferrule Rope Mesh 25*40 Mesh Size Black Finish for Zoo Enclosures Factory Cutting
US$ 9.9 - 14.9
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Material:
Stainless steel wire, AISI304 304L 316 316L rope
Type:
Rope Mesh
Application:
Protecting Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale Stainless Steel Rope Mesh Ferrule Type 7*7 7*19 Construction Fence Wire Woven Technique Cutting for BalustradesUS$ 9.9 - 14.9MOQ: 1 Square Meter -
Stainless Steel SS304/SS316 Wire Rope Steel Cable Zoo Mesh Anti-Fall Wire Rope Net Protection Net Aviary Netting MeshUS$ 6.00MOQ: 100 Square Meters
-
High-altitude Anti-fall Protective Net Handmade Steel Wire Rope Net 304 Stainless Steel Rope Net Invisible Protective NetUS$ 9.9 - 14.9MOQ: 1 Square Meter
-
Flexible Stainless Steel Cable Mesh / Balcony Railing Steel Net Stainless Steel /staircase Railing Protecting MeshUS$ 2 - 10MOQ: 1 Square Meter
-
Children's Playground Stainless Steel Rope Mesh Balcony Fence Inox Cable Net Build Guardrail Black Oxide Rope NettingUS$ 118.00MOQ: 100 Square Meters
Application
Protecting Mesh
Technique
Woven
Model Number
ferule mesh 5
Brand Name
longen
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Bending, Cutting
Weave Style
Plain Weave
Wire diameter
1.0-6.0mm Customized
mesh size
20*20mm-300*300mm
MOQ
1 Square Meter
Product name
Stainless Steel Wire Rope Ferrule Mesh
Length
Customized
Usage
Zoo Fence Roof Anti-Falling Net Perimeter Protection
Raw Material
316 Stainless Steel Wire
Origin
anping, shijiazhuang, Hebei
certification
ISO9001
Product Description
Ferrule Stainless Steel Rope Mesh / Flexible x-tend Cable Mesh
Stainless steel wire rope mesh is produced by high quality stainless steel wire cable, the stainless steel
grade includes type 304, 304 L, 316 and 316L. The structures have 7 x 7 and 7 x 19. The diameter includes
1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
grade includes type 304, 304 L, 316 and 316L. The structures have 7 x 7 and 7 x 19. The diameter includes
1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
As a new material for decoration, this kind of mesh is constructed with solid rods and cables; By rods, the mesh can
achieve stability while the cables give flexibility to the mesh. Using architectural wire mesh for your project allows you to enhance your project cost-effectively.
achieve stability while the cables give flexibility to the mesh. Using architectural wire mesh for your project allows you to enhance your project cost-effectively.
Get you best Ferrule Stainless Steel Rope Mesh / Flexible x-tend Cable Mesh from working with us!
We can also produce according to customer requirements. GET A QUOTE!
Specification
Ferrule Stainless Steel Cable Mesh Specifications |
||
Material |
AISI304，304L，316，316L rope |
|
Material Of Ferrules |
Nickel-plated copper, 316 stainless steel . |
|
Structure |
7x7 and 7x19，1x19 |
|
Wire Diameter |
1.0mm，1.5mm，2.0mm，2.5mm，3.0mm etc. |
|
Standard mesh opening size |
20mmx20mm-300mmx300mm Customized |
|
Mesh Panel Length |
1-10m，Customers' Requirement |
|
Mesh Panel Width |
1-20m，Customers' Requirement |
|
Feature |
1Iightweight, high strength 2. Environmental degradation of its no influence 3. Soft touch, efficient and protect birds featherand animal skin 4. Effectively preventing the rodents and its animal bite 5. For rough installation tolerance, high |
|
Stainless SteelCable mesh Type |
1.Knotted mesh |
|
2.Ferruled mesh |
||
Usage |
It widely applied in Bridge safety mesh，Zoo mesh，Fence，Railing，Decorative mesh，Green wall，etc. |
|
Details Images
The rope diameter, mesh and size of stainless steel cable mesh can be customized. Our factory will produce according to your requirements.
Stainless steel Webnet with Sleeves Specification |
||||||||||

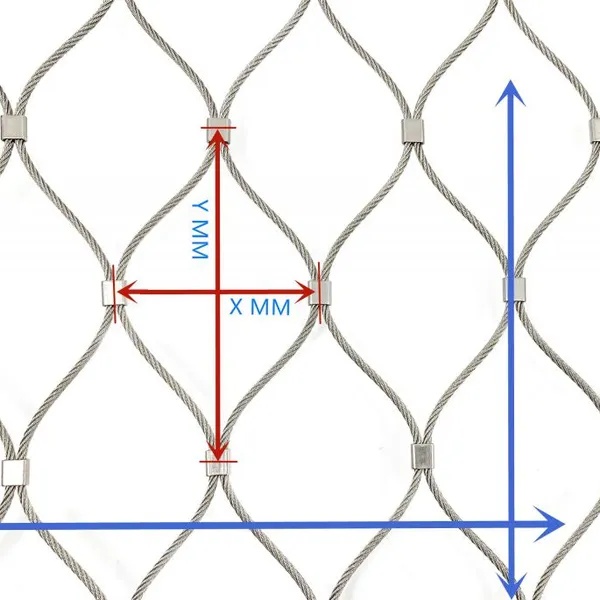

We can also produce according to customer requirements. H：Opening Height W：Opening Width 60° Standard （Angle：60°-90°） |
||||||||||
Opening 60° (OWXOH) |
1.0mm （7x7） |
1.5mm (7X7) |
2.0mm (7X7) |
3.0mm (7x19) |
4.0MM (7X19) |
|||||
20mm x 35mm |
LE-1020 |
|||||||||
25mm x 43mm |
LE-1025 |
LE-1525 |
||||||||
35mm x 61mm |
LE-1035 |
LE-1535 |
||||||||
40mm x 69mm |
LE-1040 |
LE1540 |
LE-2040 |
|||||||
50mm x 87mm |
LE-1050 |
LE1550 |
LE-2050 |
LE-3050 |
||||||
60mm x 104mm |
LE-1060 |
LE-1560 |
LE-2060 |
LE-3060 |
LE-4060 |
|||||
70mm x 121mm |
LE-1070 |
LE-1570 |
LE-2070 |
LE-3070 |
LE-4070 |
|||||
80mm x 139mm |
LE-1080 |
LE-1580 |
LE-2080 |
LE-3080 |
LE-4080 |
|||||
100mm x 173mm |
LE-10100 |
LE-15100 |
LE-20100 |
LE-30100 |
LE-40100 |
|||||
120mm x 242mm |
LE-10120 |
LE-15120 |
LE-20120 |
LE-30120 |
LE-40120 |
|||||
160mm x 277mm |
LE-10160 |
LE-15160 |
LE-20160 |
LE-30160 |
LE-40160 |
|||||
180mm x 312mm |
LE-10180 |
LE-15180 |
LE-20180 |
LE-30180 |
LE-40180 |
|||||
200mm x 346mm |
LE-10200 |
LE-15200 |
LE-20200 |
LE-30200 |
LE-40200 |
|||||
Mesh Orientation
Note: Panel height and width asked inside frame dimension.
Note: Panel height and width asked inside frame dimension.
Installation accessories
production process
Application
The application of stainless steel rope mesh
1. Green Facade - Cable System for Most Climbing Plants
1. Green Facade - Cable System for Most Climbing Plants
2. Aviary Netting - Lightweight, Durable and Long Lasting
3. Cable Zoo Mesh - Solution to Enclosing Most Animals
4. Helipad Safety Net - Modular Heliport Webbing
5. Safety Net - Structural Measure to Prevent Suicide
6. Cable Mesh - Excellent Solution to Safety
7. Steel Mesh Balustrade - bridge, stair, balcony, path
Company Profile
FAQ
1.Advantage of Stainless Steel Wire Rope Mesh Net
-Unique design.3D-structure,Flexible,Light weight,High open area % .Corrosion resistant,Maintenaance free. 10 years rust
guaranteed.
2.304 or 316 stainless steel?
- Generally the 304 stainless steel is cheaper than 316 stainless steel,to flexible wire rope mesh,the main cost is process
cost,so the cost of mesh between 304 and 316 almost same.we suggest to choose 316 stainless steel.
3.Steel Wire Rope Mesh Is it safety ?
- Full mesh meet test under EN1263.1.2014
4.How is Steel Wire Rope Mesh priced?
-The price is determined by the material, wire rope diameter, mesh and size of your product. We are our own factory. Under the
same quality, our price is lower.
5.Is shipping included in the price?
-Unless otherwise stated, pricing does not include shipping costs. As a rule, when pricing is provided, delivery is considered FOB
Origin.
-Unique design.3D-structure,Flexible,Light weight,High open area % .Corrosion resistant,Maintenaance free. 10 years rust
guaranteed.
2.304 or 316 stainless steel?
- Generally the 304 stainless steel is cheaper than 316 stainless steel,to flexible wire rope mesh,the main cost is process
cost,so the cost of mesh between 304 and 316 almost same.we suggest to choose 316 stainless steel.
3.Steel Wire Rope Mesh Is it safety ?
- Full mesh meet test under EN1263.1.2014
4.How is Steel Wire Rope Mesh priced?
-The price is determined by the material, wire rope diameter, mesh and size of your product. We are our own factory. Under the
same quality, our price is lower.
5.Is shipping included in the price?
-Unless otherwise stated, pricing does not include shipping costs. As a rule, when pricing is provided, delivery is considered FOB
Origin.
