Home > Construction & Decoration > Wire Mesh > Stainless Steel Wire Mesh > Wire Rope / Ferrule Rope Mesh Stainless Steel Net Stair Railing Mesh Protection Mesh Woven Diamond Plain Weave
Wire Rope / Ferrule Rope Mesh Stainless Steel Net Stair Railing Mesh Protection Mesh Woven Diamond Plain Weave
US$ 20.00
100 - 999 Square Meters
US$ 15.00
≥1000 Square Meters
Key Specifications
Get Latest Price
Material:
Stainless steel wire, AISI304 304L 316 316L rope
Type:
Rope Mesh
Application:
Protecting Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Outdoor Stainless Steel Cable Railing / Wire Rope Mesh / Wire Mesh Railings for BalconyUS$ 15.00 - 20.00MOQ: 100 Square Meters -
Hebei Longen Supply Wire Mesh for Parrots OEM Steel Rope Mesh Protecting Mesh Woven Protection Plain Weave Customizable CN;HEBUS$ 20.00 - 36.00MOQ: 100 Square Meters
-
Pigeon Aviary Pet Cages Carriers Houses Type and Birds Application Bird Aviary MeshUS$ 20.00 - 36.00MOQ: 100 Square Meters
-
Chinese Large Aviary Stainless Steel Breeding Pigeons Bird Cage/houseUS$ 20.00 - 36.00MOQ: 100 Square Meters
-
Cyclone Wire Mesh/galvanized Chain Link Mesh Supplier/honduras Chain Link Fence Stainless Steel WIRE Protecting Mesh GalvanizedUS$ 6.60 - 15.40MOQ: 100 Square Meters
Application
Protecting Mesh
Technique
Woven
Model Number
Rope Mesh
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Ferrule
Weave Style
Plain Weave
Product name
Stainless Steel Wire Rope Ferrule Mesh
Hole shape
Diamond
Diameter
1.0mm , 1.5mm , 2.0mm , 3.0mm etc.
Hole size
20mm-300mm
Length
Customized
Width
Customized
Usage
Protection mesh
Feature
Flexible, corrosion-resistant, flexible
Color
Customer's Requirement
Product Description

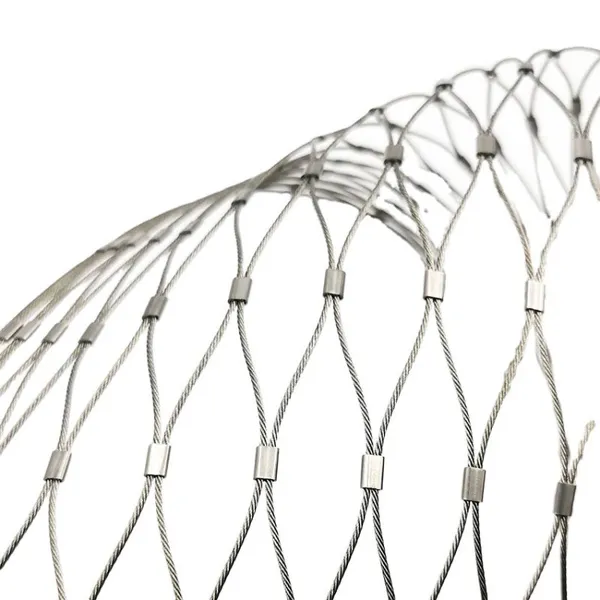

stainless steel wire rope mesh net
Pliable，transparent arid structures made of stainless steel rope from the series are multifunctionl and durable：mounted on railings or in staircases，they provide support and guidance；on facades ，they can be used as training systems for plants；in large rooms，they will create subtle aceents as fiiggreed partitions. The was subiected to numerous tests and complies with all applicable standards：AS a permanent protective and safety net for bridges or observation platforms，it is absolutely UV-andweather-resistant，unlike conventional knotted plastic fiber nets.
Ferrule Stainless Steel Cable Mesh Specifications |
||
Material |
AISI304，304L，316，316L rope |
|
Material Of Ferrules |
Nickel-plated copper, 316 stainless steel . |
|
Structure |
7x7 and 7x19，1x19 |
|
Wire Diameter |
1.0mm，1.5mm，2.0mm，2.5mm，3.0mm etc. |
|
Standard mesh opening size |
20mmx20mm-300mmx300mm Customized |
|
Mesh Panel Length |
1-10m，Customers' Requirement |
|
Mesh Panel Width |
1-20m，Customers' Requirement |
|
1Iightweight, high strength 2. Environmental degradation of its no influence
3. Soft touch, efficient and protect birds featherand animal skin 4. Effectively preventing the rodents and its animal bite 5. For rough installation tolerance, high |
||
Stainless SteelCable mesh Type |
1.Knotted mesh |
|
2.Ferruled mesh |
||
Usage |
It widely applied in Bridge safety mesh，Zoo mesh，Fence，Railing，Decorative mesh，Green wall，etc. |
|
Detailed Images
The rope diameter, mesh and size of stainless steel cable mesh can be customized. Our factory will produce according to your requirements.
Recommended specifications
Stainless steel Webnet with Sleeves Specification |
||||||||||
▼We can also produce according to customer requirements. H：Opening Height W：Opening Width 60° Standard （Angle：60°-90°）
|
||||||||||
Opening 60°
(OWXOH)
|
1.0mm
（7x7）
|
1.5mm
(7X7)
|
2.0mm
(7X7)
|
3.0mm
(7x19)
|
4.0MM
(7X19)
|
|||||
20mm x 35mm |
LE-1020 |
|||||||||
25mm x 43mm |
LE-1025 |
LE-1525 |
||||||||
35mm x 61mm |
LE-1035 |
LE-1535 |
||||||||
40mm x 69mm |
LE-1040 |
LE1540 |
LE-2040 |
|||||||
50mm x 87mm |
LE-1050 |
LE1550 |
LE-2050 |
LE-3050 |
||||||
60mm x 104mm |
LE-1060 |
LE-1560 |
LE-2060 |
LE-3060 |
LE-4060 |
|||||
70mm x 121mm |
LE-1070 |
LE-1570 |
LE-2070 |
LE-3070 |
LE-4070 |
|||||
80mm x 139mm |
LE-1080 |
LE-1580 |
LE-2080 |
LE-3080 |
LE-4080 |
|||||
100mm x 173mm |
LE-10100 |
LE-15100 |
LE-20100 |
LE-30100 |
LE-40100 |
|||||
120mm x 242mm |
LE-10120 |
LE-15120 |
LE-20120 |
LE-30120 |
LE-40120 |
|||||
160mm x 277mm |
LE-10160 |
LE-15160 |
LE-20160 |
LE-30160 |
LE-40160 |
|||||
180mm x 312mm |
LE-10180 |
LE-15180 |
LE-20180 |
LE-30180 |
LE-40180 |
|||||
200mm x 346mm |
LE-10200 |
LE-15200 |
LE-20200 |
LE-30200 |
LE-40200 |
|||||
▼Mesh Orientation
Note: Panel height and width asked inside frame dimension.
▼Installation accessories
Product Application

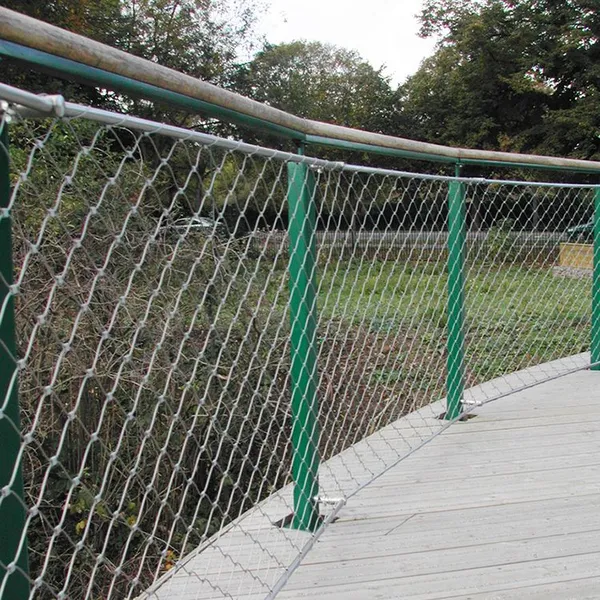

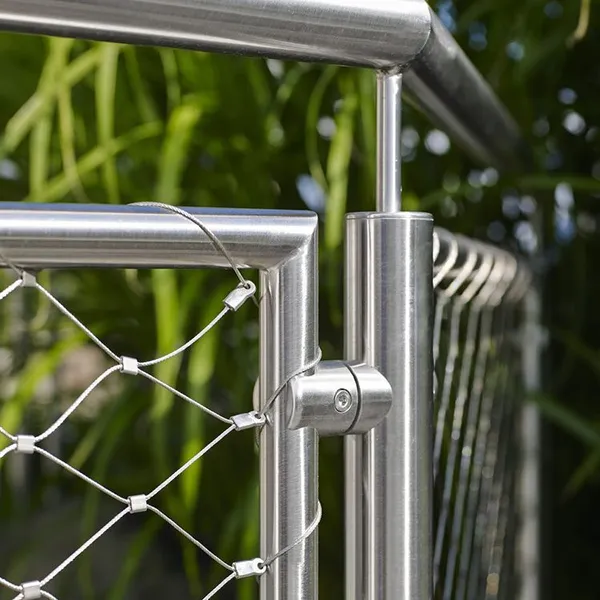

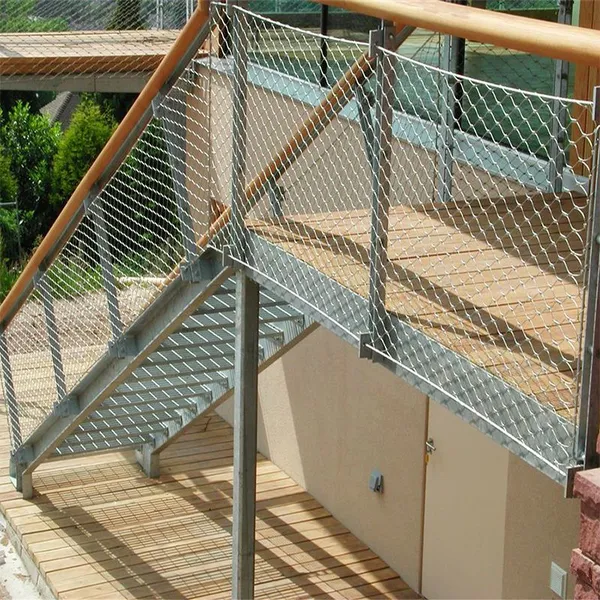

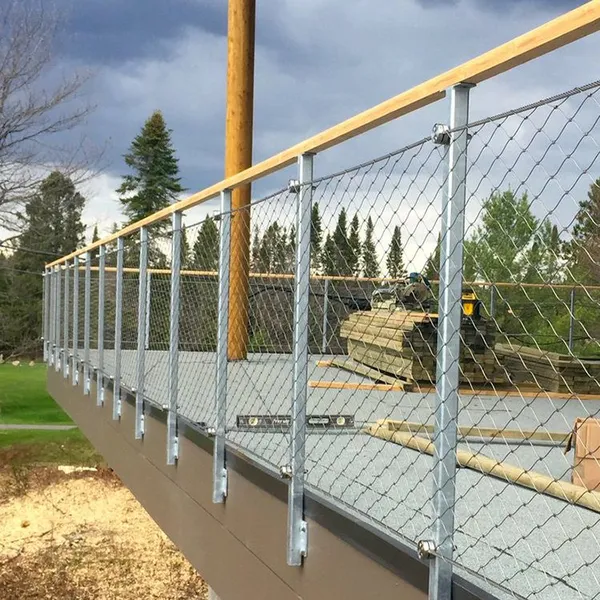

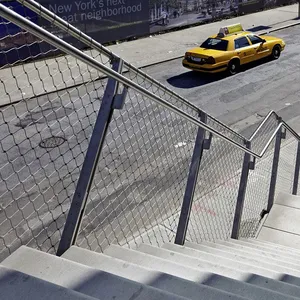

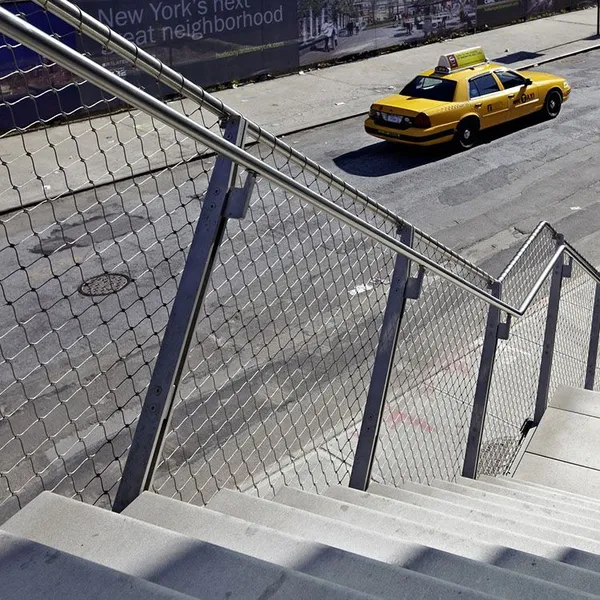

In combination with architectural ropes mesh is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.
