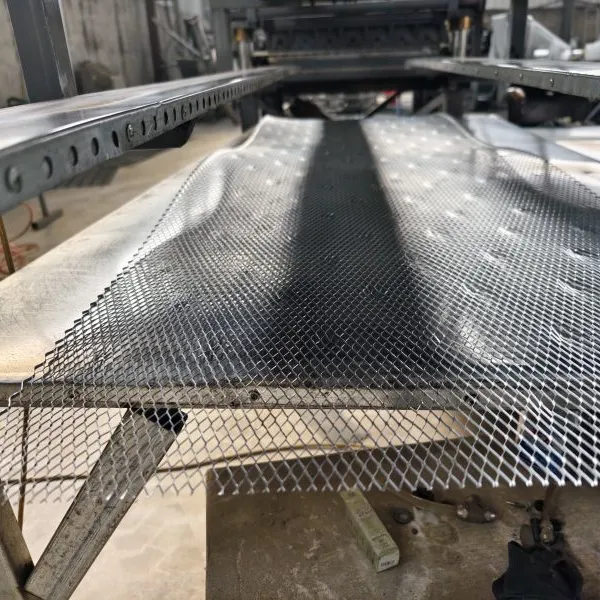

Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet.

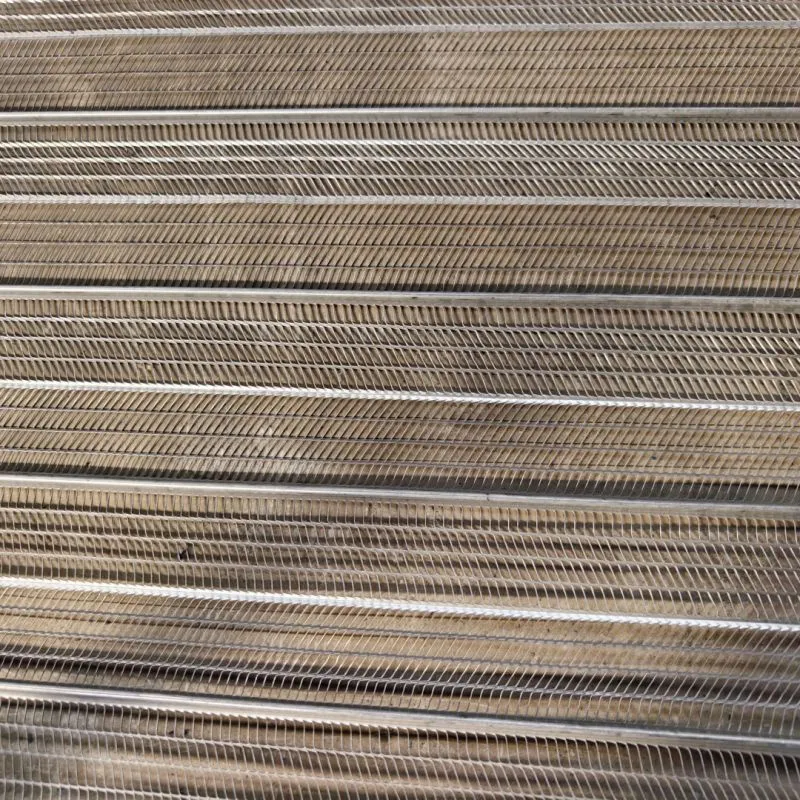

Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability, thereby delivering greater plaster bonding and fixing properties.
It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.
Rib lath without paper

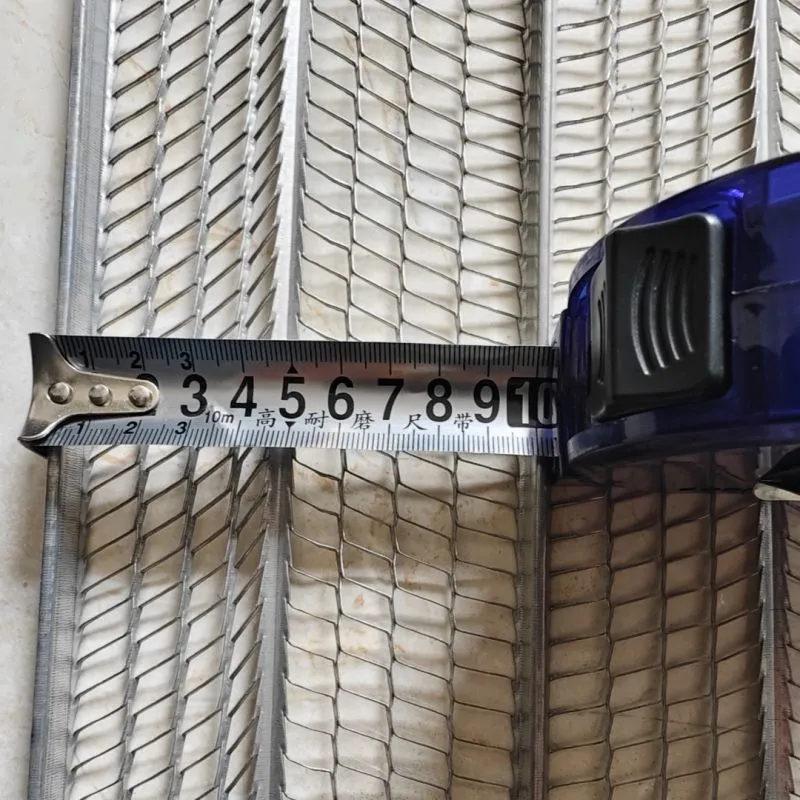

Rib lath without paper has herringbone mesh patterns and 7 longitudinal solid steel ribs with a depth of 3/8" at an interval of 3-7/8" across the sheet.
Rib lath provides a maximum span of 24" on center. It can be used both vertically and horizontally to provide superior strength and exceptional rigidity. It is widely used in ceiling, wall and column plaster works.
3/8″ High Rib Lath has a herringbone mesh pattern with 3/8″ V-shaped ribs running the length of the sheet at 4 ½” intervals and inverted 3/16″ intermediate ribs. The rib is placed against the framing member and does not require a minimum 1″ three-coat system. This lath can be used for stud less no-load-bearing partitions by wire tying lath back to back with ribs running perpendicular to each other.
Self-Furring V-Groove Metal Lath
Self-furring v-groove metal lath is manufactured with 1/4" deep grooves and 5 grooves per sheet. These grooves are spaced 6" on the center along the length of the sheet and allow a thorough embedment into and behind the lath for superior mechanical bonding.
Self-furring v-groove metal lath is easily shaped for curved or contoured surfaces. It helps maintain consistent plaster depths and eliminates the need for added furring strips. To maintain the furring characteristics of v grooves, fasteners must be applied within the v-cavity.
Self-furring v-groove metal lath is widely used in plastering over surfaces such as concrete, cement board, column fireproofing, masonry surfaces as well as replastering over old surfaces. In addition, self-furring v-groove metal lath is available with asphalt paper backing.
Kraft paper-backed rib lath
Compared with rib lath without paper, kraft paper-backed rib lath not only provides superior strength and exceptional rigidity, but also limits the loss of plaster when being applied on open framing.
| Rib Lath Specification Table | ||||
| Type | Code | Rib Depth | Rib Distance | Sheet Size |
| 3/4" High Rib Lath (High Rib Stay Form) | HR | 3/4" | 98 | 27" × 97" |
| HR3 | 19-20 mm | 100mm | 200 mm width | |
| HR4 | 19-20 mm | 100mm | 300 mm width | |
| HR5 | 19-20 mm | 100mm | 400 mm width | |
| HR6 | 19-20 mm | 100mm | 500 mm width | |
| HR7 | 19-20 mm | 100mm | 600 mm width | |
| HR8 | 19-20 mm | 100mm | 700 mm width | |
| 3/8" Middle Rib Lath | MRB5 | 10mm | 150mm | 600 x 2200-2500 mm |
| MRB7 | 10mm | 100mm | 600 x 2200-2500 mm | |
| MRB9 | 10mm | 75mm | 600 x 2200-2500 mm | |
| 1/8" Flat Rib Lath | FRB5 | 4mm | 150mm | 600 x 2200-2500 mm |
| FRB7 | 4mm | 100mm | 600 x 2200-2500 mm | |
| FRB9 | 4mm | 75mm | 600 x 2200-2500 mm | |

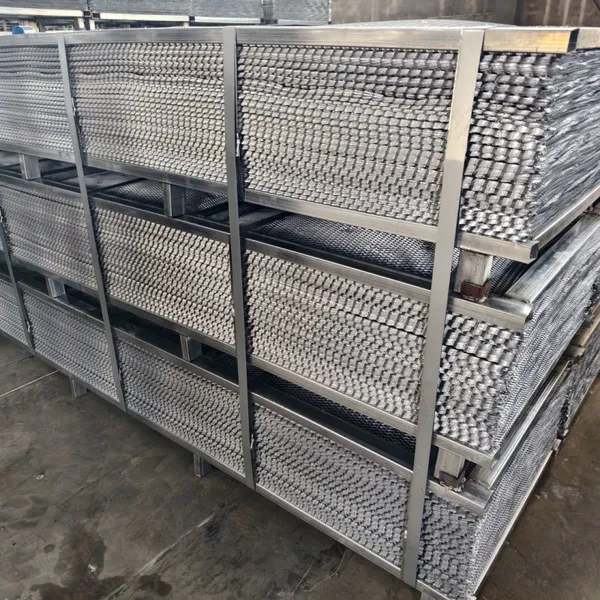

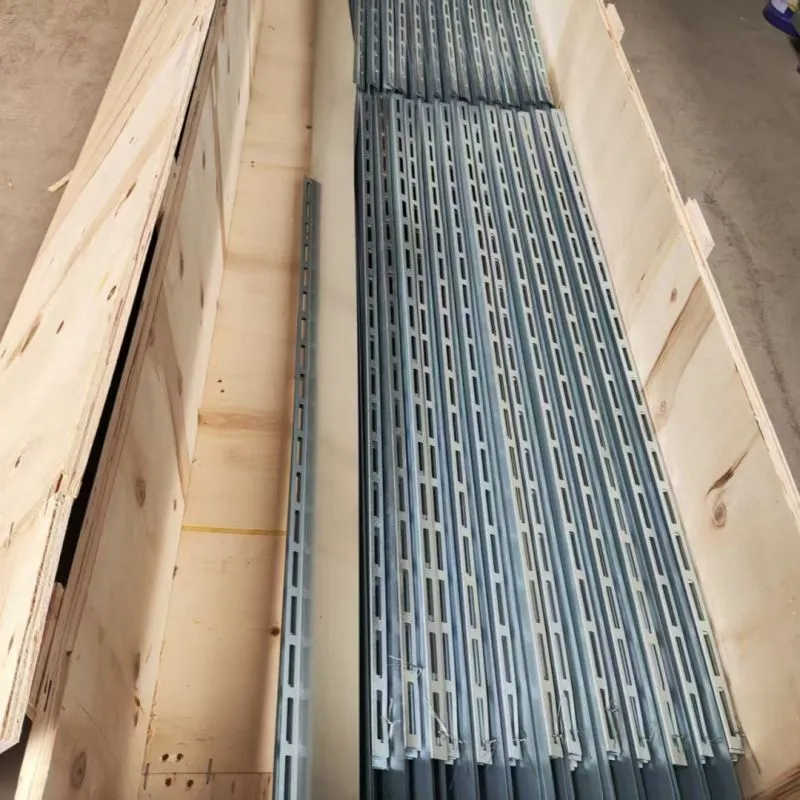

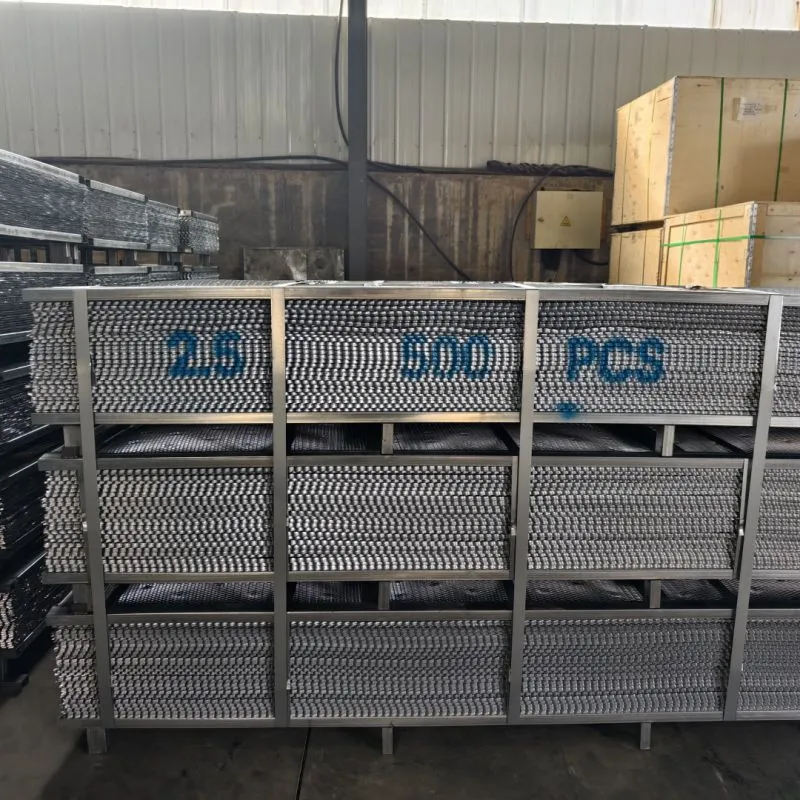

packaging
.
Company Profile
What can we do for you?
Give us a call or send us an email,
We will be happy to provide you with technical support and service !

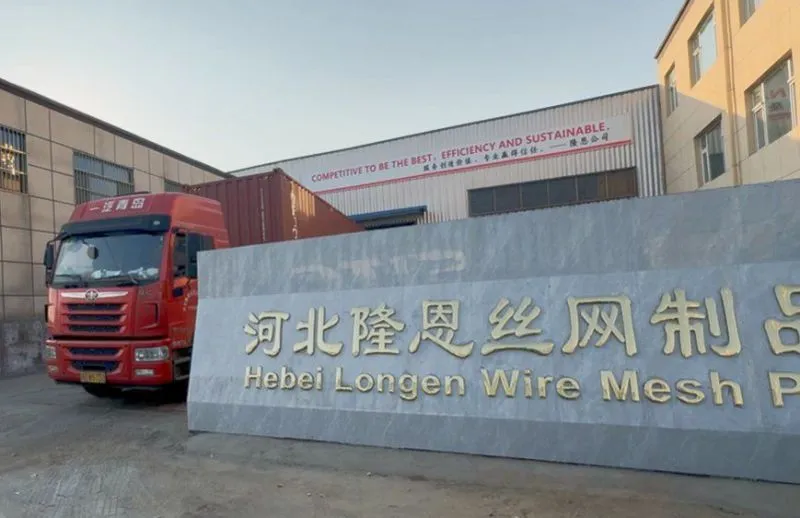

Hebei Longen Wire Mesh Products Co., Ltd. Was established in 2015,The company relies on continuous technological innovation and quality improvement to create value for customers. We have established a management system based on ISO 9001 requirements and have become a benchmark enterprise in the industry.
