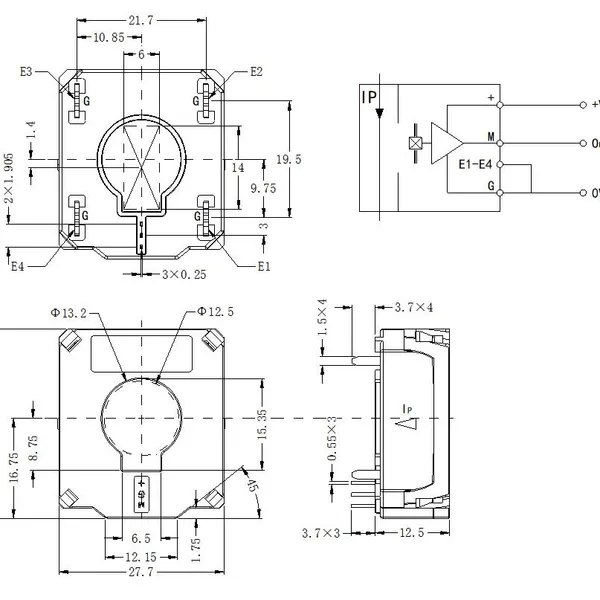

FS1500CKT5-Freesor-current Sensor New Energy Current Sensor
US$ 6.9
≥240 Units
Key Specifications
Get Latest Price
Material:
Metal
Certification:
CE
Accuracy Grade:
1.0G
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
14 days
Related Products
Material
Metal
Certification
CE
Accuracy Grade
1.0G
Output Signal Type
Analog Output
Production Process
SemiConductor Integrated
Customized
Customized
Type
Hall Type
Application
Switching Power Supply
Trademark
freesor
Origin
China
Electricalcharacteristics | ||||||||
Type |
FS100CKT5 |
FS300CKT5 |
FS500CKT5 |
FS800CKT5 |
FS1000CKT5 |
FS1500CKT5 |
||
IPN |
Primarynominalinput current |
100A |
300A |
500A |
800A |
1000A |
1500A |
A |
IP |
Measuringrangeof primarycurrent |
0～±120A |
0～±360A |
0～±600A |
0～±960A |
0～±1200A |
0～±1500A |
A |
VSN |
Secondarynominal outputvoltage |
2.5±2 |
V |
|||||
VC |
Supplyvoltage |
+5(±5%) |
V |
|||||
IC |
Currentconsumption |
mA |
||||||
Vd |
Insulationvoltage |
3KV/50Hz/1min |
||||||
ƐL |
Linearity |
%FS |
||||||
VO |
Zerooffsetvoltage |
TA=25℃2.5±0.015 |
V |
|||||
VOM |
Residualvoltage |
IPN→0 |
mV |
|||||
VOT |
ThermaldriftofV0 |
Ip=0TA=-25～+85℃ |
mV/℃ |
|||||
TR |
Responsetime |
≤5 |
μs |
|||||
f |
(-3dB)Frequency bandwidth(-3dB) |
DC～50 |
kHz |
|||||
TA |
Ambientoperating temperature |
-40～+125 |
℃ |
|||||
