Home > Construction & Decoration > Decoration Materials > Sandwich Panel > 600mm X 2440mm High Rib Lath Factory Standard Ribbed Wire Mesh Stucco Reinforcement Low-Cost Plaster Base for Roofing Wall
600mm X 2440mm High Rib Lath Factory Standard Ribbed Wire Mesh Stucco Reinforcement Low-Cost Plaster Base for Roofing Wall
US$ 1.7 - 3.2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
rib lath
Shape:
diamond
After-sale Service:
Online Technical Support, Onsite Installation
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Modern Hot-Dip Galvanized Ribbed Lath Mesh Durable 3.4 Rib 3/8\" for Stucco Projects Carbon Steel Paper-Backed 3/8\" Ribs FloorsUS$ 1.7 - 3.2MOQ: 1 Piece -
304 Stainless Steel Rib Lath Price Colombia V-Ribbed Lath Expanded Mesh for Structural Reinforcement in High-Corrosion AreasUS$ 1.7 - 3.2MOQ: 1 Piece
-
Stainless Steel Perforated Plates for Indoor and Outdoor EnvironmentsUS$ 3.99 - 4.99MOQ: 50 Square Meters
-
Stainless Steel Perforated Plate for Wall DecorationUS$ 3.99 - 4.99MOQ: 50 Square Meters
-
Mild Steel Perforated Metal Sheet for DecorationUS$ 3.99 - 4.99MOQ: 50 Square Meters
Type
rib lath
Shape
diamond
After-sale Service
Online Technical Support, Onsite Installation
Weight
1.79-3.15kg
Chemical Composition
Galvanized
Length
2440mm
Alloy Or Not
Non-Alloy
Secondary Or Not
Non-secondary
Project Solution Capability
graphic design, total solution for projects
Application
roofing, Wall, roof, Floor, plastering, cementing, stuccoing
Design Style
Modern
Place of Origin
hebei
Brand Name
longen
Model Number
Rlath8
Material
Carbon Steel, Galvanized Steel, Aluminum, Aluminum Alloy, galvanized steel wire
Color
sliver
Technique
reverse twist
Width
1.2-2.5m
length
50 m, 100 m, 200 m or customized
packing
wooden,steel pallet or wooden case packing
Pieces/Bundle
10
Yards/Pallet
500
Product name
Diamond Metal Lath
MOQ
1 Square Meter
Product Description
Rib lath is popularly known as Expanded Rib Lath, due to its process of expanding of metal sheet. Galvanized steel ribbed lath wire mesh is free template network, an ideal building material for plastering base, structural formwork and fireproofing
construction.
Ribbed Lath made of galvanized steel has anti-corrosion properties and allows for smooth application of coatings such as plaster. Ribbed Lath offers an adaptable, low cost and efficient solutions for a wide range of construction requirements.
construction.
Ribbed Lath made of galvanized steel has anti-corrosion properties and allows for smooth application of coatings such as plaster. Ribbed Lath offers an adaptable, low cost and efficient solutions for a wide range of construction requirements.
Material: Galvanized steel expanded metal sheet.
Patten: Ribbed herringbone pattern.
Firmwin supplies both regular ribbed lath and hi ribbed lath.
Exported to: Germany, Poland, Ireland, Malaysia, Singapore, etc.
Forms of supply include riblath sheet and processed forms.
Uses: Plaster Base for Wall, Ceiling, Partition, Roof Slab and Stucco Reinforcement.
Specification
Flat Diamond Metal Lath
Flat diamond metal lath is manufactured by slitting and stretching galvanized steel sheets to form small openings, thereby
allowing the plaster keys to be bonded to the lath and offering better crack resistance and higher strength. Each sheet has square
ends and smooth parallel edges for fast, easy handling and installation.
Flat diamond metal lath is used as plaster base and reinforcement on almost all type of walls, ceilings, over wood or steel
framing, flat or curved surfaces. The large number of openings provide better stucco bonding property.
allowing the plaster keys to be bonded to the lath and offering better crack resistance and higher strength. Each sheet has square
ends and smooth parallel edges for fast, easy handling and installation.
Flat diamond metal lath is used as plaster base and reinforcement on almost all type of walls, ceilings, over wood or steel
framing, flat or curved surfaces. The large number of openings provide better stucco bonding property.
Paper-backed lath is a kind of metal lath with asphalt saturated kraft building paper applied on the back to control moisture, air
flow and reduce air infiltration, thereby providing improved energy efficiency. It is easy to install and is an ideal choice for
serving as a base for stone, ceramic tile and traditional stucco.
The paper is waterproof. It provides sheathing protection against moisture during curing and forms a vertical surface behind the
exterior wall cladding (stucco, brick, siding, etc.) to allow moisture safely drain out of the wall system.
flow and reduce air infiltration, thereby providing improved energy efficiency. It is easy to install and is an ideal choice for
serving as a base for stone, ceramic tile and traditional stucco.
The paper is waterproof. It provides sheathing protection against moisture during curing and forms a vertical surface behind the
exterior wall cladding (stucco, brick, siding, etc.) to allow moisture safely drain out of the wall system.
Self-furred dimpled metal lath is manufactured with evenly spaced indentations that hold the metal lath 1/4" away from the surface
to be plastered to allow the plaster or stucco to be embedded more thoroughly into the lath and provide excellent mechanical
bonding over the surface to be plastered.
Self-furring dimpled metal lath is extensively used in plaster works and serves as plaster reinforcement over interior masonry
walls and in steel column fireproofing, or functions as a reinforcement for base coat in ceramic tile works.
Self-furring dimpled metal lath is also available with asphalt paper backing..
to be plastered to allow the plaster or stucco to be embedded more thoroughly into the lath and provide excellent mechanical
bonding over the surface to be plastered.
Self-furring dimpled metal lath is extensively used in plaster works and serves as plaster reinforcement over interior masonry
walls and in steel column fireproofing, or functions as a reinforcement for base coat in ceramic tile works.
Self-furring dimpled metal lath is also available with asphalt paper backing..
Self-furring v-groove metal lath is manufactured with 1/4" deep grooves and 5 grooves per sheet. These grooves are spaced 6" on the center along the length of the sheet and allow a thorough embedment into and behind the lath for superior mechanical bonding.
Self-furring v-groove metal lath is easily shaped for curved or contoured surfaces. It helps maintain consistent plaster depths and eliminates the need for added furring strips. To maintain the furring characteristics of v grooves, fasteners must be applied within the v-cavity.
Self-furring v-groove metal lath is widely used in plastering over surfaces such as concrete, cement board, column fireproofing,masonry surfaces as well as replastering over old surfaces. In addition, self-furring v-groove metal lath is available with asphalt paper backing.
Self-furring v-groove metal lath is easily shaped for curved or contoured surfaces. It helps maintain consistent plaster depths and eliminates the need for added furring strips. To maintain the furring characteristics of v grooves, fasteners must be applied within the v-cavity.
Self-furring v-groove metal lath is widely used in plastering over surfaces such as concrete, cement board, column fireproofing,masonry surfaces as well as replastering over old surfaces. In addition, self-furring v-groove metal lath is available with asphalt paper backing.

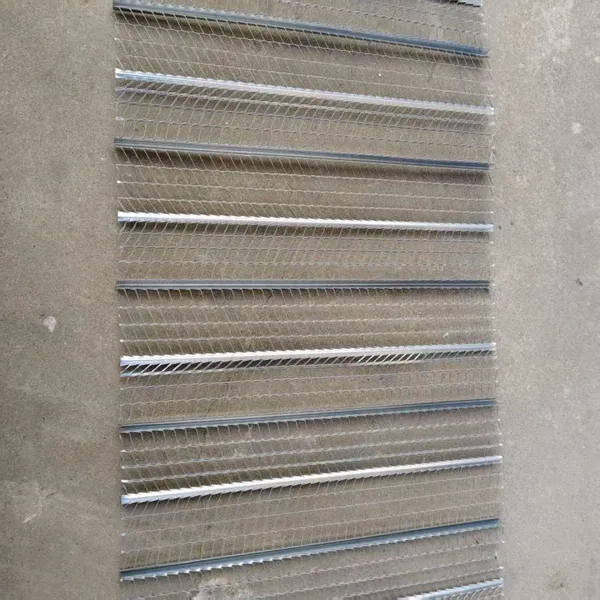

Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet.
Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability, thereby delivering greater plaster bonding and fixing properties.
It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.
Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability, thereby delivering greater plaster bonding and fixing properties.
It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.
Wt. per Sq. Yd. | Sheet Size | Sheets/Bundle | Bundle/Pallet |
1.75lb | 27" x 97" | 10 | 25 |
2.50lb | 27" x 97" | 10 | 25 |
3.40lb | 27" x 97" | 10 | 25 |

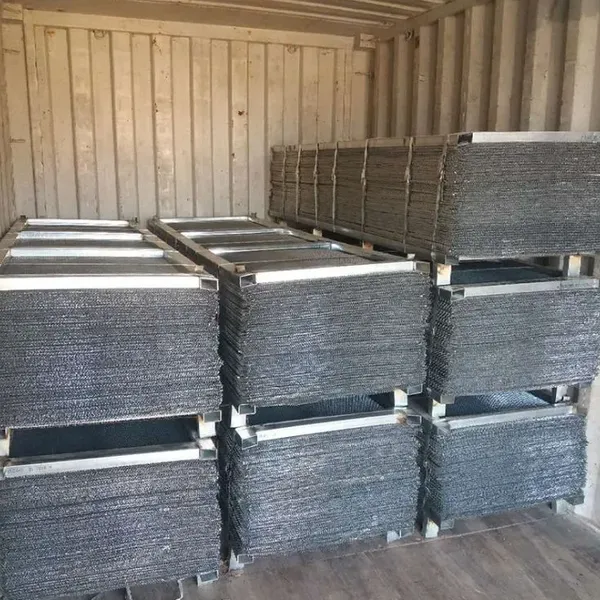

Packing & Delivery
1.Wood pallet packing
2.Steel pallet packing
3.Wood case packing
2.Steel pallet packing
3.Wood case packing
4.customized packing
