Rib Lath With High Strength and Great Plaster Bonding Capacity
Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet.
Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability, thereby delivering greater plaster bonding and fixing properties.
It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.

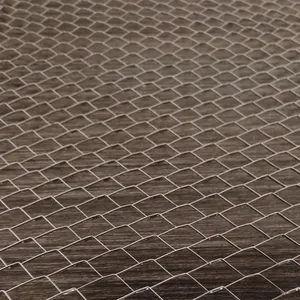

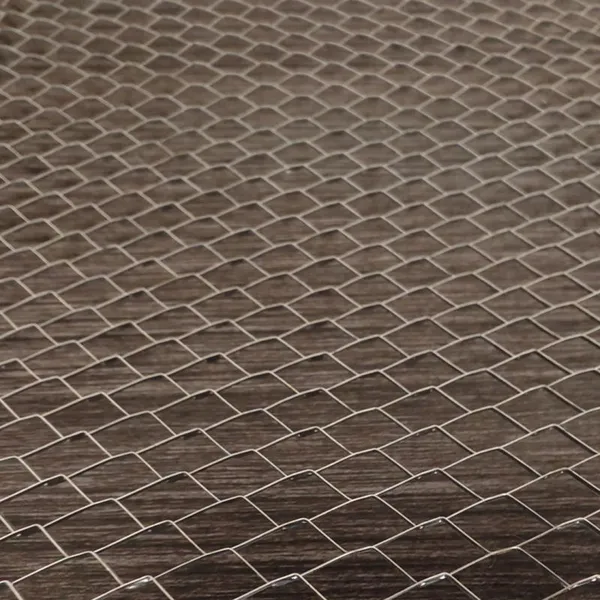

Diamond mesh lathis used as a substrate for Portland cement or gypsum plaster on either interior or exterior walls, ceilings,
soffit and fascia surfaces, and can be used under ceramic tile in wall, ceiling and floor applications.It’s useful in all general-purpose applications and is the best lath available for ornamental work and contoured surfaces, as well a spray applied fireproofing.
Rib lath without paper
Rib lath without paper has herringbone mesh patterns and 7 longitudinal solid steel ribs with a depth of 3/8" at an interval of 3-7/8" across the sheet.
Rib lath provides a maximum span of 24" on center. It can be used both vertically and horizontally to provide superior strength and exceptional rigidity. It is widely used in ceiling, wall and column plaster works.
3/8″ High Rib Lath has a herringbone mesh pattern with 3/8″ V-shaped ribs running the length of the sheet at 4 ½” intervals and inverted 3/16″ intermediate ribs. The rib is placed against the framing member and does not require a minimum 1″ three-coat system. This lath can be used for stud less no-load-bearing partitions by wire tying lath back to back with ribs running perpendicular to each other.
| Rib Lath Specification Table | ||||
| Type | Code | Rib Depth | Rib Distance | Sheet Size |
| 3/4" High Rib Lath (High Rib Stay Form) | HR | 3/4" | 98 | 27" × 97" |
| HR3 | 19-20 mm | 100mm | 200 mm width | |
| HR4 | 19-20 mm | 100mm | 300 mm width | |
| HR5 | 19-20 mm | 100mm | 400 mm width | |
| HR6 | 19-20 mm | 100mm | 500 mm width | |
| HR7 | 19-20 mm | 100mm | 600 mm width | |
| HR8 | 19-20 mm | 100mm | 700 mm width | |
| 3/8" Middle Rib Lath | MRB5 | 10mm | 150mm | 600 x 2200-2500 mm |
| MRB7 | 10mm | 100mm | 600 x 2200-2500 mm | |
| MRB9 | 10mm | 75mm | 600 x 2200-2500 mm | |
| 1/8" Flat Rib Lath | FRB5 | 4mm | 150mm | 600 x 2200-2500 mm |
| FRB7 | 4mm | 100mm | 600 x 2200-2500 mm | |
| FRB9 | 4mm | 75mm | 600 x 2200-2500 mm | |
