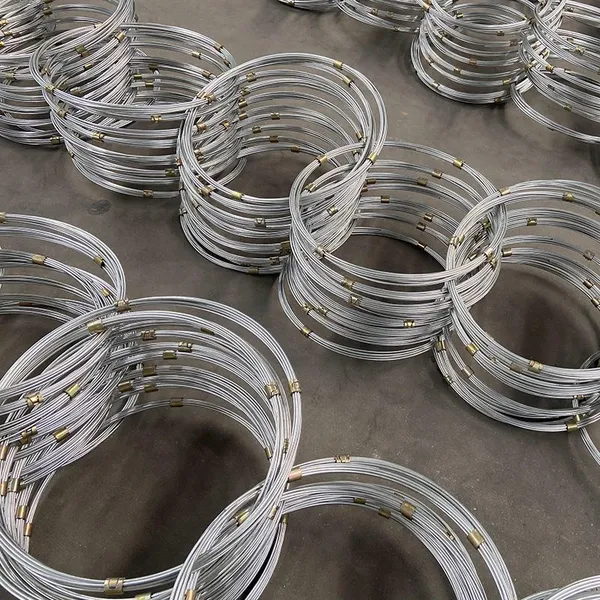

Circular Link Rockfall Net Welded Mesh Galvanized Steel Wire Rope Ring Network Customizable Size for Mountainous Areas
US$ 5.9 - 40
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Material:
Galvanized Steel Wire
Type:
Rope Mesh
Technique:
Welded Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale Flexible Interlocking Ring Protection Net Galvanized Steel Plain Rope Mesh Rockfall Barrier Bending Custom CuttingUS$ 5.9 - 40MOQ: 1 Square Meter -
Factory Sale Steel Wire Ring Net for Mountain Landslide Prevention 500 to 8000 KJ Plain Weave Rope Mesh Custom Cutting ServicesUS$ 5.9 - 40MOQ: 1 Square Meter
-
Ringnet RXE-3000 Highway Rockfall Protection System Manufactured Side Ring Protection Net Rope Mesh Welded Technique BendingUS$ 5.9 - 40MOQ: 1 Square Meter
-
5000kj Energy-dissipating Rockfall Barrier Circular Ring Mesh Barrier for Railway Slope DefenseUS$ 5.9 - 40MOQ: 1 Square Meter
-
Trendy 2000kj Flexible Steel Debris Flow Barriers Plain Rope Mesh High Load Absorption Capacity for Construction Site SlopeUS$ 5.9 - 40MOQ: 1 Square Meter
Model Number
r Slope Stabilzation Rockfall Protection net731
Brand Name
longen
Place of Origin
Hebei, China
Delivery Time
8 ~ 14 days
Processing Service
Decoiling, Cutting, Bending
Weave Style
PLAIN WEAVE
Product name
flexible ring net barriers
Wire diameter
3mm steel wire
application
slope protection and reduce rockfall impact
Color
sliver
System Types
VX Barrier and UX barrier
Packing
customized packing
Feature
easy install/flexible
width
10-25m customized width
height
2-6m, customized height
Usage
Slope Stabilisation Rockfall Protection Wire Mesh
Product Description
High tensile ring rockfall protection system, capable of withstanding impact energies up to 8000 kJ, with very low anchoring forces and uniform energy absorption right up to the edge of the protection net. This ring net is quick, easy and cost-effective to install.
RXE Rockfall Protection Barriers From 500 to 8000 KJ.
Ring Net Barrier Features:
1.High tensile strength.
2.More flexible.
3.High load and absorption capacity.
4.Quick and easy installation.
5.Broken parts are easily replaced.
6.Corrosion resistance.
1.High tensile strength.
2.More flexible.
3.High load and absorption capacity.
4.Quick and easy installation.
5.Broken parts are easily replaced.
6.Corrosion resistance.

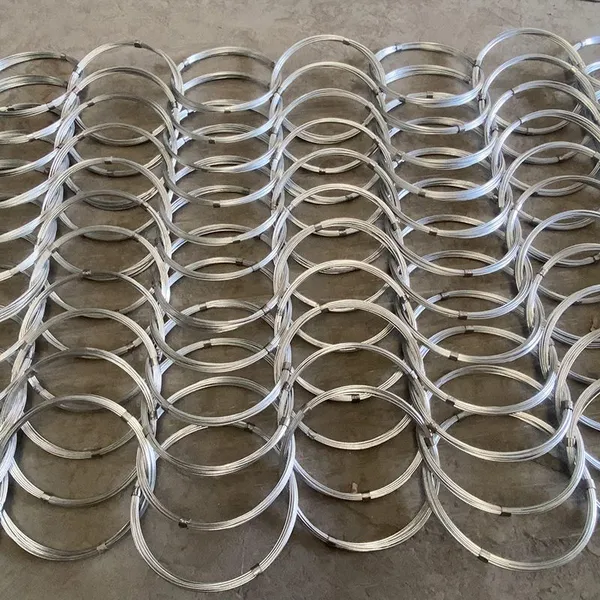

Combination style of ring network barrier.
4 contacts
between rings
6 contacts
between rings
Specification
Material |
High tensile steel wire |
||||||
Wire Diameter（mm） |
3.0mm |
||||||
Tensile Strength |
≥ 1770 N//mm2 |
||||||
Coating |
min. 150 g/m2 |
||||||
Specification |
RXE-500 |
RXE-1000 |
RXE-2000 |
RXE-3000 |
RXE-5000 |
RXE-8000 |
||||||
Energy Absorption Capacity (kJ) |
500 |
1000 |
2000 |
3000 |
5000 |
8000 |
||||||
Ring Diameter（mm） |
350 |
300 |
350 |
350 |
350 |
300 |
||||||
Ring Net Type |
7/3/350 |
7/3/300 |
12/3/350 |
16/3/350 |
16/3/350 |
19/3/300 |
||||||
Strands of Wire |
7 |
7 |
12 |
16 |
16 |
19 |
||||||
Rope diameter (mm) |
12/18 |
16/22 |
16/22 |
16/22 |
20/22 |
22 |
||||||
Post Spacing（m） |
6–12 |
6–12 |
8–12 |
8-12 |
8–12 |
8–12 |
||||||
Barrier Height（m） |
2-5 |
3-6 |
4-7 |
4-7 |
5-9 |
6-10.5 |
||||||
Usable height remaining in impact section |
> 50% (Cat.A) |
|||||||||||
*Notes: Let's take the ring net size R7/3/350 as an example. Where R stands for ring net, 7 represents 7 circles, 3 stands for wire diameter, expressed in mm and 350 stands for ring diameter, expressed in mm. |
||||||||||||
Rockfall Protection System Component：Rockfall Protection System consists of ring net, Hexagonal wire mesh,steel posts, brake rings, rope anchors and support ropes . Of which, ring net is the most important part of the whole system.
Detailed Images
Application
The steel wire ring net is mainly used for retaining of unstable slopes controlling and preventing rockfalls and loose debris flow along roads, highways and railway, urban areas, mines and quarries. *The steel wire ring net can also be used for snow avalanche protection produced from metallic coated steel wire or advanced metallic coating.
