Trendy 2000kj Flexible Steel Debris Flow Barriers Plain Rope Mesh High Load Absorption Capacity for Construction Site Slope
US$ 5.9 - 40
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Material:
Galvanized Steel Wire
Type:
Rope Mesh
Technique:
Welded Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Factory High-Tensile Steel 300mm Ring Nets Rockfall Barrier for Mountain Slope Protection Welded Rope Mesh Custom CuttingUS$ 5.9 - 40MOQ: 1 Square Meter -
Factory Price 350mm Ring High Load-bearing Steel Nets for Rockfall Barrier Hexagonal Mesh Paired Bending Cutting for Mine SlopeUS$ 5.9 - 40MOQ: 1 Square Meter
-
Factory Price 2000kJ Absorption Steel Ring Net Plain Rope Mesh for Rockfall Passive Barrier Custom Cutting for Valley SlopeUS$ 5.9 - 40MOQ: 1 Square Meter
-
Railway Embankment Safety Slope Protection Ring Network Combined China Supplier for Welded Mesh Fence Rope Mesh TechniqueUS$ 5.9 - 40MOQ: 1 Square Meter
-
2000kJ Absorption Steel Ring Net Rockfall Passive Barrier Factory Price for Valley Slope SafetyUS$ 5.9 - 40MOQ: 1 Square Meter
Model Number
r Slope Stabilzation Rockfall Protection net832
Brand Name
longen
Place of Origin
Hebei, China
Delivery Time
8 ~ 14 days
Processing Service
Decoiling, Cutting, Bending
Weave Style
PLAIN WEAVE
Product name
flexible ring net barriers
Wire diameter
3mm steel wire
application
slope protection and reduce rockfall impact
Color
sliver
System Types
VX Barrier and UX barrier
Packing
customized packing
Feature
easy install/flexible
width
10-25m customized width
height
2-6m, customized height
Usage
Slope Stabilisation Rockfall Protection Wire Mesh
Product Description
Rockfall Netting & Landslide Barrier Systems: Professional Slope Protection Solutions
Rockfall netting, landslide barrier, and rockfall fence barriers stand as critical slope protection systems engineered to mitigate risks of rockfall and slope collapse. These protective structures are meticulously composed of high-strength wire grid mesh, anchors, I-steel columns, drop-down anchor ropes, energy dissipation rings, and support rope bases—all integrated in a top-to-bottom configuration to ensure comprehensive defense.
The core function of landslide barriers and rockfall protective fences lies in safeguarding slope stability within designated
regions, effectively preventing rock collapse and mitigating the impact of falling debris. Constructed with steel rope mesh, the rockfall barrier and landslide defense system boast exceptional flexibility for interception, coupled with robust strength to absorb and disperse the kinetic energy of falling rocks. A key enhancement to their performance is the inclusion of energy dissipation rings, which significantly boost the system’s impact resistance, enabling it to withstand even high-velocity and heavy rockfall events.
In terms of energy absorption capacity, rockfall protective fences are designed to handle impacts ranging from 250kJ to 3000kJ, with specialized configurations available to accommodate higher energy levels up to 5000kJ, catering to extreme protection requirements. This versatility makes them suitable for diverse slope environments, from moderate to high-risk zones.
The core function of landslide barriers and rockfall protective fences lies in safeguarding slope stability within designated
regions, effectively preventing rock collapse and mitigating the impact of falling debris. Constructed with steel rope mesh, the rockfall barrier and landslide defense system boast exceptional flexibility for interception, coupled with robust strength to absorb and disperse the kinetic energy of falling rocks. A key enhancement to their performance is the inclusion of energy dissipation rings, which significantly boost the system’s impact resistance, enabling it to withstand even high-velocity and heavy rockfall events.
In terms of energy absorption capacity, rockfall protective fences are designed to handle impacts ranging from 250kJ to 3000kJ, with specialized configurations available to accommodate higher energy levels up to 5000kJ, catering to extreme protection requirements. This versatility makes them suitable for diverse slope environments, from moderate to high-risk zones.
RXE Rockfall Protection Barriers From 500 to 8000 KJ.
Ring Net Barrier Features:
1.High tensile strength.
2.More flexible.
3.High load and absorption capacity.
4.Quick and easy installation.
5.Broken parts are easily replaced.
6.Corrosion resistance.
1.High tensile strength.
2.More flexible.
3.High load and absorption capacity.
4.Quick and easy installation.
5.Broken parts are easily replaced.
6.Corrosion resistance.
Combination style of ring network barrier.
4 contacts
between rings
6 contacts
between rings
Specification
Material |
High tensile steel wire |
||||||
Wire Diameter（mm） |
3.0mm |
||||||
Tensile Strength |
≥ 1770 N//mm2 |
||||||
Coating |
min. 150 g/m2 |
||||||
Specification |
RXE-500 |
RXE-1000 |
RXE-2000 |
RXE-3000 |
RXE-5000 |
RXE-8000 |
||||||
Energy Absorption Capacity (kJ) |
500 |
1000 |
2000 |
3000 |
5000 |
8000 |
||||||
Ring Diameter（mm） |
350 |
300 |
350 |
350 |
350 |
300 |
||||||
Ring Net Type |
7/3/350 |
7/3/300 |
12/3/350 |
16/3/350 |
16/3/350 |
19/3/300 |
||||||
Strands of Wire |
7 |
7 |
12 |
16 |
16 |
19 |
||||||
Rope diameter (mm) |
12/18 |
16/22 |
16/22 |
16/22 |
20/22 |
22 |
||||||
Post Spacing（m） |
6–12 |
6–12 |
8–12 |
8-12 |
8–12 |
8–12 |
||||||
Barrier Height（m） |
2-5 |
3-6 |
4-7 |
4-7 |
5-9 |
6-10.5 |
||||||
Usable height remaining in impact section |
> 50% (Cat.A) |
|||||||||||
*Notes: Let's take the ring net size R7/3/350 as an example. Where R stands for ring net, 7 represents 7 circles, 3 stands for wire diameter, expressed in mm and 350 stands for ring diameter, expressed in mm. |
||||||||||||
Install Accessories
Rockfall Protection System Component：Rockfall Protection System consists of ring net, Hexagonal wire mesh,steel posts, brake rings, rope anchors and support ropes . Of which, ring net is the most important part of the whole system.
Installation efficiency is another standout feature of steel rope mesh rockfall barriers and landslide protective fences. The
system is engineered to minimize bolt usage and excavation work, facilitating rapid and straightforward on-site construction. All components are produced to strict standard specifications, ensuring seamless assembly with minimal bolt connections during installation. Adopting a modular, building-block approach, the installation process requires only basic conventional equipment, allowing personnel to easily carry out setup, maintenance, and component replacement as needed.
system is engineered to minimize bolt usage and excavation work, facilitating rapid and straightforward on-site construction. All components are produced to strict standard specifications, ensuring seamless assembly with minimal bolt connections during installation. Adopting a modular, building-block approach, the installation process requires only basic conventional equipment, allowing personnel to easily carry out setup, maintenance, and component replacement as needed.

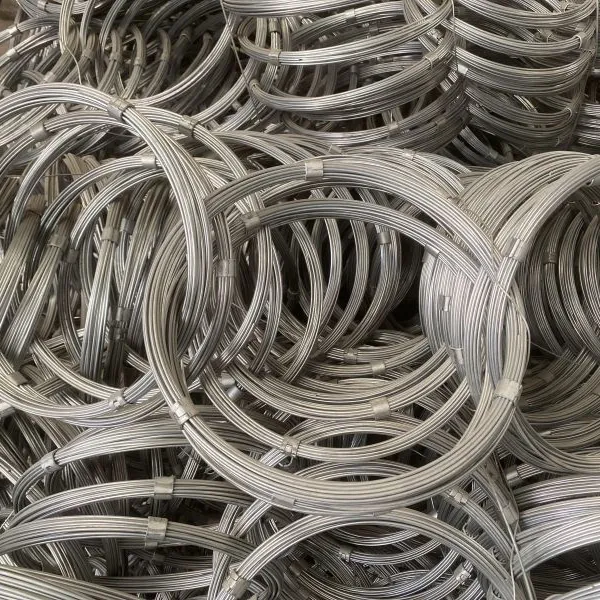

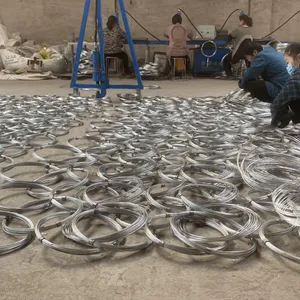

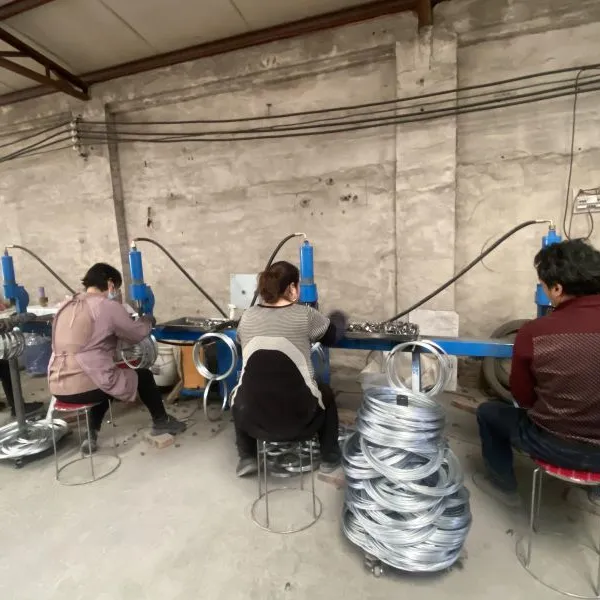

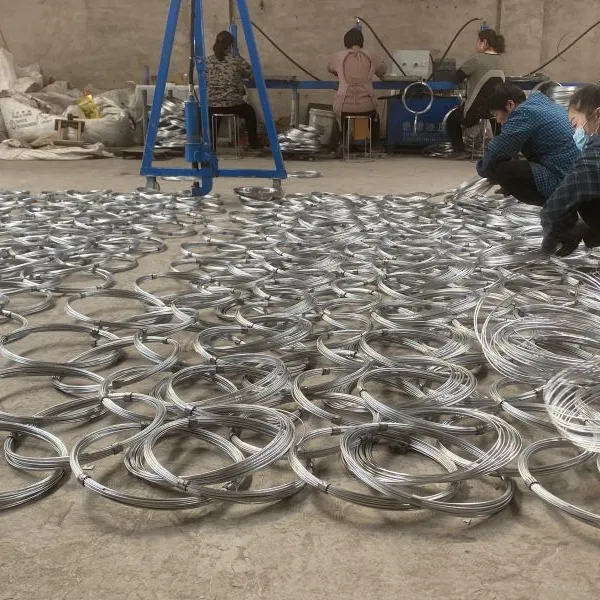

Detailed Images
Application
The steel wire ring net is mainly used for retaining of unstable slopes controlling and preventing rockfalls and loose debris flow along roads, highways and railway, urban areas, mines and quarries. *The steel wire ring net can also be used for snow avalanche protection produced from metallic coated steel wire or advanced metallic coating.
