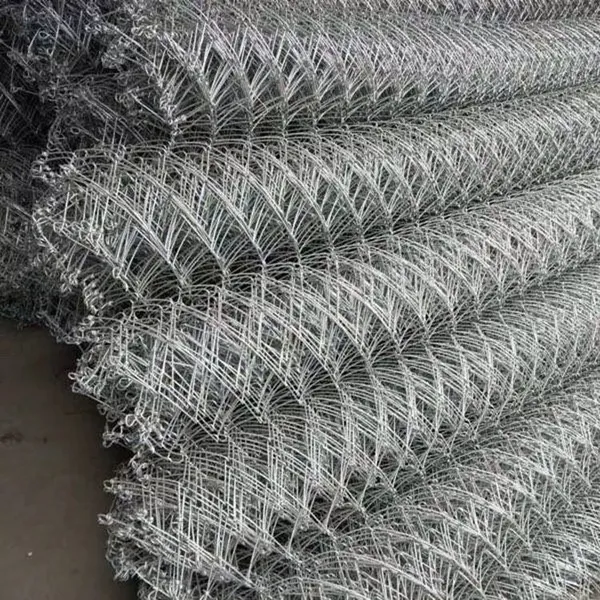

High Tensile Steel Wire Mesh G45/2 Wholesale Price Chain Link Slope Protection System for Hydraulic Engineering Woven Bending
US$ 2.9 - 8.8
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Material:
Galvanized Steel Wire, high tensile steel wire
Type:
Chain Link Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Active Protection System High Tensile Steel Wire Mesh Zn/AI Coating Factory Price for Rockfall ProtectionUS$ 2.9 - 8.8MOQ: 1 Square Meter -
High Tensile 1770MPa Steel Wire Mesh Woven Chain Link Fence for Avalanche Prevention Direct From FactoryUS$ 2.9 - 8.8MOQ: 1 Square Meter
-
SNS High Tensile Steel Wire Mesh Chain Link Slope Protection Net China Supplier for Slope StabilizationUS$ 2.9 - 8.8MOQ: 1 Square Meter
-
High Tensile G65/4 Mesh Steel Wire 1770MPa Woven Technique Active Structural Defense System for Rockfall Protection Best PriceUS$ 2.9 - 8.8MOQ: 1 Square Meter
-
Anti-fall Rock Slope Protection Net Debris Flow Barriers Wholesale High-tensile Steel Wire Rockfall Netting for Mining SolutionsUS$ 2.9 - 8.8MOQ: 1 Square Meter
Technique
Woven
Model Number
High Tensile Steel Wire Mesh5162
Brand Name
longen
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Bending
Weave Style
Plain Weave
Diameter
3.0mm, 4mm
Tensile strength
>1770MPa
product type
chain link
roll width
1-3.5m Customers' Requirement
roll length
1-30m Customers' Requirement
coating
( 95% ZN -5% Al ) > 150 g/m2
mesh type
Rhomboid hole
Braking load of single wire
12.5 kN
fitting
Steel anchor, spike plate, soil or rock nails,clips, sewing rope
Product Description
65/3 80/3 80/4 80/4.6 Mesh Rockfall Protection Barrier
The 65/3 80/3 80/4 80/4.6 Mesh Rockfall Protection Barrier is securely tensioned against the slope using wire rope anchors and spike plates, applying prestressed force to ensure tight contact. Boundary ropes, sewing ropes, and clips further reinforce the mesh, creating a durable and stable barrier. During landslides or debris flows, the mesh effectively intercepts large rocks and debris, mitigating ground impact and enhancing slope safety.
Advantages over traditional rockfall systems:
1. Material Superiority: Fabricated from high-carbon steel wire, the mesh offers exceptional tensile strength and corrosion resistance.
2. Simplified Design: Its streamlined structure requires fewer components compared to conventional barriers, reducing installation complexity.
3. Cost Efficiency: Minimal maintenance and long service life ensure cost-effectiveness in slope stabilization projects.
1. Material Superiority: Fabricated from high-carbon steel wire, the mesh offers exceptional tensile strength and corrosion resistance.
2. Simplified Design: Its streamlined structure requires fewer components compared to conventional barriers, reducing installation complexity.
3. Cost Efficiency: Minimal maintenance and long service life ensure cost-effectiveness in slope stabilization projects.
Specification
Technical Data Sheet CE European Technical Approval ETA-17/0118 | ||
Technical data | 65/3 | |
Wire diameter | 3.0mm | |
Steel quality | high-tensile steel wire | |
Tensile resistance of a wire | 12.5kN | |
Mesh shape | Rhomboid | |
Tensile strength of steel wire | >1770 N/mm² | |
Tensile strength steel wire mesh | min.150kN/m | |
Diagonal | 83×143mm(+/-3%) | |
Mesh width | 65mm(+/-3%) | |
Compound protection | Zn/AI coating of steel wires | |
Compound of corrosion protection | 95% Zn / 5% AI | |
Coating | min.150g/m² | |
≤5% dark brown rust in salt spray test according to EN ISO 9227 | 1700 hours(ETA-17/0118) | |
Roll with | 2m,2.5m,3m,3.5m,4m,customized | |
Roll length | 10m,20m,30m,(as per site requirement) | |
Mesh edges | Mesh ends knotted(customized) | |
Specifications of high tensile steel wire mesh
• Wire diameter: 3 mm or 4 mm.• Mesh type: rhomboid hole.
• Mesh size: Inscribed circle diameter is 65 mm.
• Tensile strength: minimum 1770 MPa.
• Corrosion treatment: hot dipped galvanized or zinc-aluminum coated.
• Zinc thickness: no less than 150 g/m2.
• Breaking load of single wire: 12.5 kN.
• Roll width: 1 m - 3.5 m.
• Roll length: 10 m - 30 m.
• Wire diameter: 3 mm or 4 mm.• Mesh type: rhomboid hole.
• Mesh size: Inscribed circle diameter is 65 mm.
• Tensile strength: minimum 1770 MPa.
• Corrosion treatment: hot dipped galvanized or zinc-aluminum coated.
• Zinc thickness: no less than 150 g/m2.
• Breaking load of single wire: 12.5 kN.
• Roll width: 1 m - 3.5 m.
• Roll length: 10 m - 30 m.
High-Tensile Steel Wire Mesh for Slope Rockfall Protection
The high tensile steel wire mesh slope protection system is a critical active protection solution in rockfall barrier engineering.
This system primarily includes:
High tensile steel wire mesh (reinforced grid structure)
Wire rope nails
Spike plates
Boundary ropes
Sewing ropes
Specialized clips
High tensile steel wire mesh (reinforced grid structure)
Wire rope nails
Spike plates
Boundary ropes
Sewing ropes
Specialized clips
Application
high tensile steel wire mesh application
• Slope stabilization
• Protection against slides breaking out
• Rockfall protection
• Erosion protection
• Slope stabilization
• Protection against slides breaking out
• Rockfall protection
• Erosion protection
Packing & Delivery
1 in bulk 2. on pallet 3. as customer's requirement.
installation Instructions
The correct system installation process
Stage I :Clearing and leveling of the slope according to design requirements
Stage II : Staking out all important points on a slope (nail-distance according to design value, drilling points, etc.)
Stage III : Drilling works and nails installation
Stage IV : Choose anchor points in depressions or cutting and preparing of dells around nail heads
Stage V :Drainage or other required elements installation
Stage VI : Erosion control mat TECMAT® installation for enhanced greening if soil material can be flushed away
Stage VII : Unrolling and TECCO® mesh fixation
Stage VIII :Connecting individual sheets of meshes with connection clips
Stage IX : Rope anchors with flexible head and boundary ropes installation
Stage X : System pretensioning according to design value using a torque wrench
Stage XI : Slope greening (seeding, hydroseeding, etc.)
Stage I :Clearing and leveling of the slope according to design requirements
Stage II : Staking out all important points on a slope (nail-distance according to design value, drilling points, etc.)
Stage III : Drilling works and nails installation
Stage IV : Choose anchor points in depressions or cutting and preparing of dells around nail heads
Stage V :Drainage or other required elements installation
Stage VI : Erosion control mat TECMAT® installation for enhanced greening if soil material can be flushed away
Stage VII : Unrolling and TECCO® mesh fixation
Stage VIII :Connecting individual sheets of meshes with connection clips
Stage IX : Rope anchors with flexible head and boundary ropes installation
Stage X : System pretensioning according to design value using a torque wrench
Stage XI : Slope greening (seeding, hydroseeding, etc.)
