High Tensile Large-Mesh Spiral Rope for Heavy Rockfall Interception 130mm Width Factory Bending and Welding Service
US$ 19.90
100 - 9999 Square Meters
US$ 17.80
10000 - 49999 Square Meters
US$ 16.70
≥50000 Square Meters
Key Specifications
Get Latest Price
Material:
Galvanized Steel Wire
Type:
Rope Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
S4-130 Spiral-Structured Flexible Rockfall Barrier Rope Mesh for Steep Cliff Slope Stabilization Bending Welding ProcessingUS$ 16.70 - 19.90MOQ: 100 Square Meters -
Cost-Effective Woven Galvanized Steel Rope Mesh With Bending/Welding/Cutting Services for Rockfall Protection on Rural RoadsUS$ 16.70 - 19.90MOQ: 100 Square Meters
-
High-Tensile Spider Spiral Rope Mesh Active Protection System for Mountain Rockfall Plain Weave Technique Custom Cutting WeldingUS$ 16.70 - 19.90MOQ: 100 Square Meters
-
Customizable Spider High-performance Net Wire Diameter 4mm for Complex Terrain Safety Factory PriceUS$ 16.70 - 19.90MOQ: 100 Square Meters
-
Wholesale Steel-Wire Spider Spiral Rope Mesh for Hydropower Station Slopes Bent & Welded Slope Stabilization MeshUS$ 16.70 - 19.90MOQ: 100 Square Meters
Technique
Woven
Model Number
rRockfall Protection Mesh818
Brand Name
longen
Place of Origin
Hebei, China
Delivery Time
15-21 days
Processing Service
Bending, Welding, Decoiling, Cutting
Weave Style
Plain Weave
Product name
Rockfall Protection Mesh Spider spiral rope mesh
Wire diameter
3mm
Strands
3
Mesh size
inner circle diameter 250 mm - 300 mm.
Tensile strength
1770 N/m2
Zinc coating weight
150 g/m2
Roll width
3.5 m
Roll length
10 m or 30 m
MOQ
100 Square Meter
Sample
Sample Availible
Spider Rockfall Barrier System: Active Protection Solution with High Tensile Performance
The Spider Rockfall Barrier System is a professional active rockfall protection system, composed of chain link meshes and spider spiral rope meshes as core components. Both mesh types are crafted from high-tensile spring steel wires, boasting exceptional toughness and tensile strength—key properties that enable them to effectively withstand the massive impact forces generated by landslides and debris flows.
Core Applications
This system is primarily designed to secure and stabilize:
Loose, fragmented rock masses
Rock outcrops and protrusions
Unstable rock formations in mountainous or steep terrain
Key Advantages of Spider Spiral Rope Mesh
A standout feature of the spider spiral rope mesh is its superior adaptability. It can be seamlessly installed on various surface structures, including highly irregular or uneven rock faces, ensuring consistent protection coverage even in complex geological environments.
By integrating high-strength materials with versatile design, the Spider Rockfall Barrier System offers reliable active protection against rockfall hazards, making it a critical solution for slope stabilization and hazard mitigation projects.
This system is primarily designed to secure and stabilize:
Loose, fragmented rock masses
Rock outcrops and protrusions
Unstable rock formations in mountainous or steep terrain
Key Advantages of Spider Spiral Rope Mesh
A standout feature of the spider spiral rope mesh is its superior adaptability. It can be seamlessly installed on various surface structures, including highly irregular or uneven rock faces, ensuring consistent protection coverage even in complex geological environments.
By integrating high-strength materials with versatile design, the Spider Rockfall Barrier System offers reliable active protection against rockfall hazards, making it a critical solution for slope stabilization and hazard mitigation projects.
Product Description
Specification
Diameter of tangential circle inside the mesh |
250mm, 280mm |
Wire Diameter |
3mm |
Mesh Size |
10m*3.5m |
Flat thickness of mesh |
14mm--18mm |
Anchor rod diameter |
25mm, 28mm |
Anchor pad size |
320mm*180mm |
Boundary rope diameter |
12mm, 14mm, 16mm |
Auxiliary anchor rod diameter |
20mm--25mm |
Specifications of spider spiral rope mesh
Wire diameter: 3.0 mm.
Strands: 3 strands.
Mesh size: inner circle diameter 250 mm - 300 mm.
Tensile strength: 1770 N/m2.
Zinc coating weight: 150 g/m2.
Roll width: 3.5 m.
Roll length: 10 m or 30 m.
Wire diameter: 3.0 mm.
Strands: 3 strands.
Mesh size: inner circle diameter 250 mm - 300 mm.
Tensile strength: 1770 N/m2.
Zinc coating weight: 150 g/m2.
Roll width: 3.5 m.
Roll length: 10 m or 30 m.
Detailed Images
Component

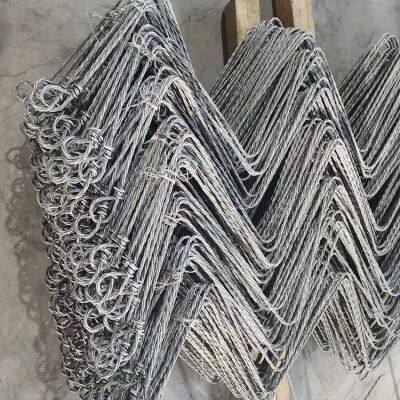

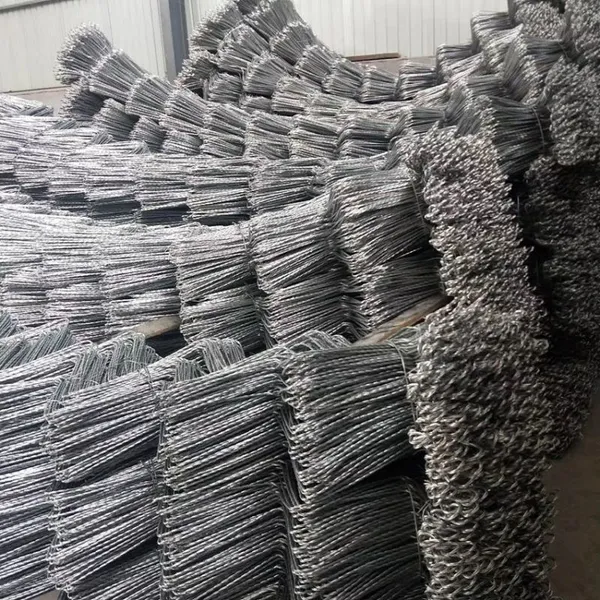

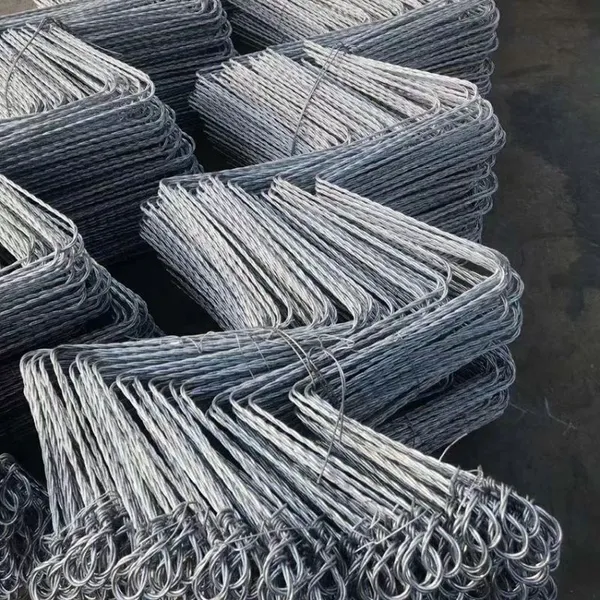

High tensile spiral rope mesh:It is made of three high tensile spring wires. The rope mesh has high tensile strength and load capacity for slope protection.
Chain link mesh. The chain link mesh has 2.2 mm diameter and 50 mm holes. All the chain link meshes are made of hot dipped galvanized wires, which has outstanding corrosion and rust resistance performance.
Prestressed anchor. Different from tecco mesh system, which the anchor is wire rope anchors, the spider spiral protection system is equipped with reinforcing steel bar anchor, which has better hardness and stability. One side of the rebar anchor has threads and the diameter can be 25 mm or 28 mm.
Anchor plate. It is claw type anchor plate, which there are bending on the four side. This design can make the anchor plate fasten to the mountain firmly. The size of anchor plate is larger than 320 mm × 180 mm and the plate thickness is thicker than 10 mm.
boundary rope. The boundary rope is used to enclose the four side of spider spiral rope mesh. It is made of steel wire rope and the diameter is thicker than the 12 mm. Most common diameter is 14 mm or 16 mm. The length of single boundary rope is shorten than 40 m and both side of the rope should be equipped with steel wire rope anchor.

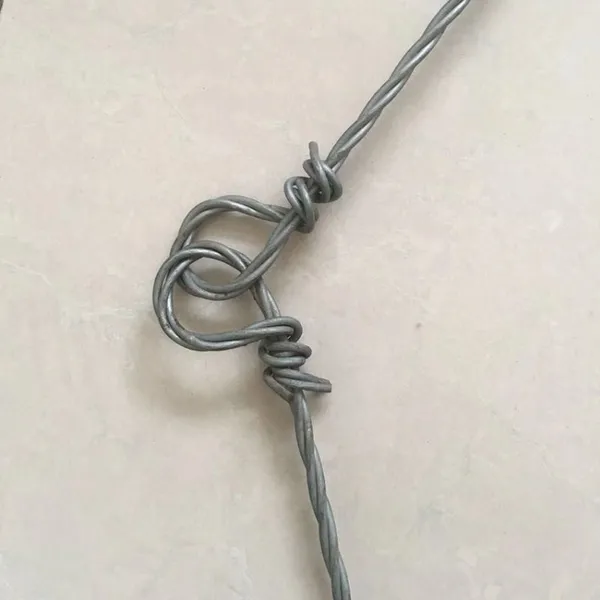

Sewing rope. The function is similar to the boundary rope. The sewing rope are also made of steel wire rope. It is used for
sewing the neighbor spider spiral mesh and chain link mesh.
High tensile spiral rope mesh:It is made of three high tensile spring wires. The rope mesh has high tensile strength and load capacity for slope protection.
Chain link mesh. The chain link mesh has 2.2 mm diameter and 50 mm holes. All the chain link meshes are made of hot dipped galvanized wires, which has outstanding corrosion and rust resistance performance.
Prestressed anchor. Different from tecco mesh system, which the anchor is wire rope anchors, the spider spiral protection system is equipped with reinforcing steel bar anchor, which has better hardness and stability. One side of the rebar anchor has threads and the diameter can be 25 mm or 28 mm.
Anchor plate. It is claw type anchor plate, which there are bending on the four side. This design can make the anchor plate fasten to the mountain firmly. The size of anchor plate is larger than 320 mm × 180 mm and the plate thickness is thicker than 10 mm.
boundary rope. The boundary rope is used to enclose the four side of spider spiral rope mesh. It is made of steel wire rope and the diameter is thicker than the 12 mm. Most common diameter is 14 mm or 16 mm. The length of single boundary rope is shorten than 40 m and both side of the rope should be equipped with steel wire rope anchor.
Sewing rope. The function is similar to the boundary rope. The sewing rope are also made of steel wire rope. It is used for
sewing the neighbor spider spiral mesh and chain link mesh.
Application
Applications

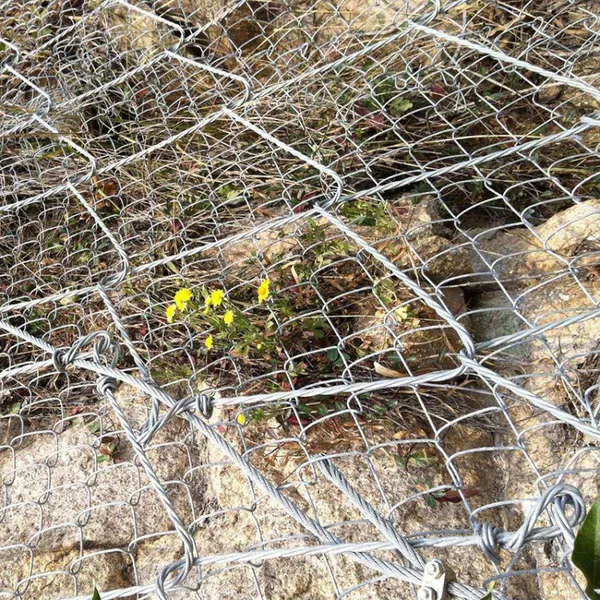

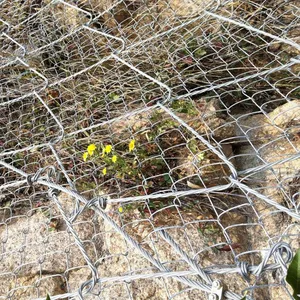

2.It is widely used in the slope protection, mountain protection, vegetation protection and road protection. It can reduce the damage caused by the natural disaster.
1.The spider spiral rope mesh is widely used in the slope stabilization in high and steep rock, boulder stones and dangerous rock mass slope stabilization.
2.It is widely used in the slope protection, mountain protection, vegetation protection and road protection. It can reduce the damage caused by the natural disaster.
