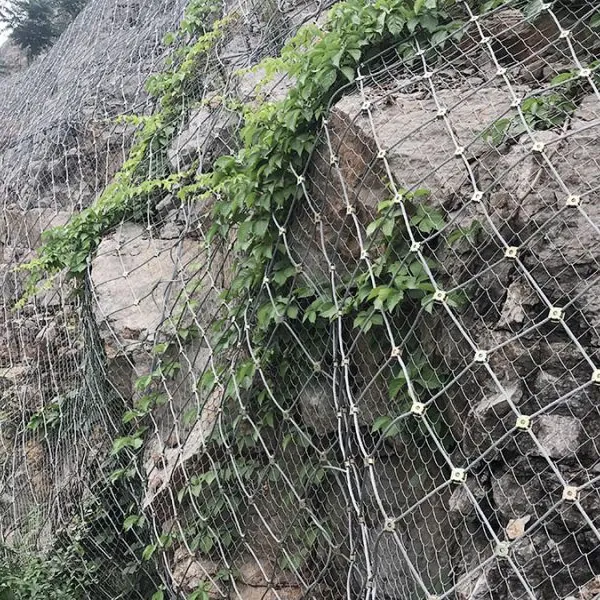

SNS Flexible Stainless Steel Slope Stabilization Wire Rope Net Plain Weave for Landslide Prevention Cutting Welding Included
US$ 20.00
999 - 2999 Square Meters
US$ 18.90
3000 - 99998 Square Meters
US$ 15.00
≥99999 Square Meters
Key Specifications
Get Latest Price
Material:
Galvanized Steel Wire, High carbon steel, stainless steel.
Type:
Rope Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Dipped 8mm Galvanized Wire Rope Rockfall Fence for Debris Flow Control on Slopes Bent & Welded Competitive PriceUS$ 15.00 - 20.00MOQ: 999 Square Meters -
DO/08/300 Galvanized Wire Rope Net SNS Slope Protection for Mountain Stone Welding & Bending Services Fall ProtectionUS$ 15.00 - 20.00MOQ: 999 Square Meters
-
Woven Diamond Mesh Wire Rope Net Active Protection System PVC Coating Cutting Bending for Slope Rockfall Hazard PreventionUS$ 15.00 - 20.00MOQ: 999 Square Meters
-
China Factory Zinc-Plated Wire Rope Net 280mm Mesh for National Park Slope Safety 4m*6m Dimension Bending Cutting WeldingUS$ 15.00 - 20.00MOQ: 999 Square Meters
-
300 Mesh Size Rockfall Protection Wire Rope Net With Welding & Bending for Long-Life Railway Side Slope StabilizationUS$ 15.00 - 20.00MOQ: 999 Square Meters
Technique
Woven
Model Number
R Wire Rope Net slope rockfall protection 823
Brand Name
Longen
Place of Origin
Hebei, China
Delivery Time
15-21 days
Processing Service
Bending, Welding, Decoiling, Cutting
Weave Style
Plain Weave
Product name
Wire Rope Net slope rockfall protection
Surface treatment
Galvanized, PVC coated.
wire rope diameter
8 mm
Wire rope mesh size
300 mm* 300 mm
Mesh roll size
4 m * 4 m, 4.5 m * 4.5 m
Supporting rope diameter
12 mm, 16 mm
Sewing rope diameter
8 mm.
anchor diameter
25 mm * 25 mm
Anchor bearing plate size
320 *170 mm, 320 *180 mm
Galvanized Wire Rope Net: Superior Corrosion Resistance for Rockfall Protection
As the most widely used rockfall barrier, galvanized wire rope net stands out for its exceptional corrosion and rust resistance. Crafted from hot-dipped galvanized steel wire rope—with higher tensile strength than standard steel wires—it’s built to withstand tough conditions.
1.Used alone: Perfect for areas with large stones and high-impact risks.
2.Combined with chain link/hexagonal mesh: Blocks small stones on loose slopes, offering comprehensive defense.
Wires are intersected and secured firmly with clips, ensuring durability. Ideal for mountain and slope protection, it works
flexibly:
flexibly:
1.Used alone: Perfect for areas with large stones and high-impact risks.
2.Combined with chain link/hexagonal mesh: Blocks small stones on loose slopes, offering comprehensive defense.
Product Description
Specification
Model | Nominal resistance grade | Bursting resistance of flexible metal |
APS-025 | 25 | ≥25 |
APS-050 | 50 | ≥50 |
APS-75 | 75 | ≥75 |
APS-100 | 100 | ≥100 |
APS-150 | 150 | ≥150 |
APS-200 | 200 | ≥200 |
APS-300 | 300 | ≥300 |
APS-500 | 500 | ≥500 |
Specifications of galvanized wire rope net
1.Material: hot dipped galvanized steel wire rope.
2.Steel wire rope diameter: 8 mm.
3.Steel wire rope mesh size: 300 mm × 300 mm.
4.Chain link mesh wire diameter: 2.2 mm.
5.Chain link mesh size: 50 mm × 50 mm.
6.Supporting rope diameter: 12 mm or 16 mm.
7. Sewing rope diameter: 8 mm.
1.Material: hot dipped galvanized steel wire rope.
2.Steel wire rope diameter: 8 mm.
3.Steel wire rope mesh size: 300 mm × 300 mm.
4.Chain link mesh wire diameter: 2.2 mm.
5.Chain link mesh size: 50 mm × 50 mm.
6.Supporting rope diameter: 12 mm or 16 mm.
7. Sewing rope diameter: 8 mm.
Components
1. Galvanized wire rope net. The main component of steel wire rope rockfall barrier system. It is made of 8 mm steel wire rope and then woven into steel wire rope net with diamond shapes. Steel wire rope has high tensile strength and load capacity.
2.Chain link fence. Chain link fence is another important component. It is used with galvanized wire rope net to make up the disadvantages of galvanized wire rope net. Place the chain link fence in the wire rope net to block and prevent the smaller stones from falling down. The chain link meshes are made of hot dipped galvanized materials for corrosion and rust resistance.
3. Wire rope anchor. Made of steel wire rope, the wire rope anchor is mainly used for fastening the galvanized wire rope net and chain link meshes on the mountain firmly. The wire rope anchor has higher tensile strength and better flexible performance than the concrete anchor.
4.Supporting rope. Supporting rope is placed along the galvanized wire rope net, it is used for share the loading and pressure of the wire rope net. Support rope is also made of 8 mm steel wire rope, which has high loading capacity and tensile strength.
5.Sewing rope. Sewing rope is mainly used for connecting the neighbor steel wire rope net and form a whole protection for the mountain. Sewing rope is very important, 8 mm steel wire rope can supply high loading capacity to prevent the stones from leakage in the joint.
2.Chain link fence. Chain link fence is another important component. It is used with galvanized wire rope net to make up the disadvantages of galvanized wire rope net. Place the chain link fence in the wire rope net to block and prevent the smaller stones from falling down. The chain link meshes are made of hot dipped galvanized materials for corrosion and rust resistance.
3. Wire rope anchor. Made of steel wire rope, the wire rope anchor is mainly used for fastening the galvanized wire rope net and chain link meshes on the mountain firmly. The wire rope anchor has higher tensile strength and better flexible performance than the concrete anchor.
4.Supporting rope. Supporting rope is placed along the galvanized wire rope net, it is used for share the loading and pressure of the wire rope net. Support rope is also made of 8 mm steel wire rope, which has high loading capacity and tensile strength.
5.Sewing rope. Sewing rope is mainly used for connecting the neighbor steel wire rope net and form a whole protection for the mountain. Sewing rope is very important, 8 mm steel wire rope can supply high loading capacity to prevent the stones from leakage in the joint.
Application
Applications of galvanized wire rope net
Galvanized wire rope net can be used in active rockfall barrier system and passive rockfall barrier system.
1.Galvanized wire rope net has the same applications with PVC coated wire rope net. It is widely used in the mountains and slopes to prevent stones from falling down.
2. It can also be prevent the landslide, debris flow, snow avalanche and other natural hazard so as to protect the people and properties' safe.
Galvanized wire rope net can be used in active rockfall barrier system and passive rockfall barrier system.
1.Galvanized wire rope net has the same applications with PVC coated wire rope net. It is widely used in the mountains and slopes to prevent stones from falling down.
2. It can also be prevent the landslide, debris flow, snow avalanche and other natural hazard so as to protect the people and properties' safe.
