China Stainless Steel SS304 Welded Pipe
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Stainless Steel Pipes
Shape:
Round
Technique:
Cold Rolled
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
Mirror Polished 304 316L Stainless Steel Pipe for ChemistryNegotiableMOQ: 1 Ton -
Seamless/Welded Sanitary Stainless Steel Pipe SolutionsUS$ 2 - 50MOQ: 1 Kilogram
-
Factory 310mm 316L Stainless Steel Tube ASTM Standard Welded PipeUS$ 2 - 50MOQ: 1 Kilogram
-
Pneumatic Sanitary Medical SS304 316 Nickle Alloy Stainless Ss Galvanized API Black Carbon Gas Oil Pipelines Casing Alloy Steel Seamless Tube PipeUS$ 2 - 50MOQ: 1 Kilogram
-
High Quality Tp430 Sch40 Sch80 Price Per Kg Seamless Welded Ss Square Rectangular Round Stainless Steel Tubing Tube PipeUS$ 2 - 50MOQ: 1 Kilogram
Type
Stainless Steel Pipes
Shape
Round
Technique
Cold Rolled
Surface Treatment
Polished
Specification
customizable
Product Description
ASME TP316L Sanitary Grade Stainless Steel Pipe
Grade: 316L/304
Size: OD(6.35-1016MM), WT(0.5-8MM).
Standards: ASTM, JIS, DIN, EN, ISO, GB, GOST etc.
Finish: BA/AP/Polished/MF
Application: Boiler, heat exchanger, construction, hygiene, pharmacy, power, petrochemical, machinery and automobile industry.
Package: Plywood case or bundles
ASTM A249/A269/A554/A270 TUBE, etc.
DIN11850/SMS/ISO2037/ISO1127 TUBE, etc.
JIS G3459/JIS G3448 PIPE, ASTM A312 PIPE, etc
GB/T12770/T12771 tube/pipe, etc.
ASME TP316L Sanitary Grade Stainless Steel Pipe
Size: OD(6.35-1016MM), WT(0.5-8MM).
Standards: ASTM, JIS, DIN, EN, ISO, GB, GOST etc.
Finish: BA/AP/Polished/MF
Application: Boiler, heat exchanger, construction, hygiene, pharmacy, power, petrochemical, machinery and automobile industry.
Package: Plywood case or bundles
ASTM A249/A269/A554/A270 TUBE, etc.
DIN11850/SMS/ISO2037/ISO1127 TUBE, etc.
JIS G3459/JIS G3448 PIPE, ASTM A312 PIPE, etc
GB/T12770/T12771 tube/pipe, etc.
ASME TP316L Sanitary Grade Stainless Steel Pipe
| Material | ASTM A249 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^ . | ^ |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP316L | 0.035 D | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP321 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ | ||
| Material | Heat treatment | Temperure F (C) Min. | Hardness | |
| Brinell | Rockwell | |||
| TP304 | Solution | 1900 (1040) | 192HBW/200HV | 90HRB |
| TP304L | Solution | 1900 (1040) | 192HBW/200HV | 90HRB |
| TP316 | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| TP316L | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| TP321 | Solution | 1900(1040) F | 192HBW/200HV | 90HRB |
| TP347 | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
OD, inch |
OD Tolerance inch(mm) | WT Tolerance % | Length Tolernace inch(mm) | |
| + | - | |||
| ≤ 1 / 2 | ± 0.005 ( 0.13 ) | ± 15 | 1 / 8 ( 3.2 ) | 0 |
| > 1 / 2 ~1 1 / 2 | ± 0.005(0.13) | ± 10 | 1 / 8 (3.2) | 0 |
| > 1 1 / 2 ~ | ± 0.010(0.25) | ± 10 | 3 / 16 (4.8) | 0 |
| > 3 1 / 2 ~ | ± 0.015(0.38) | ± 10 | 3 / 16 (4.8) | 0 |
| > 5 1 / 2 ~ | ± 0.030(0.76) | ± 10 | 3 / 16 (4.8) | 0 |
| 8~ | ± 0.040(1.01) | ± 10 | 3 / 16 (4.8) | 0 |
| 12~ | ± 0.050(1.26) | ± 10 | 3 / 16 (4.8) | 0 |
Company Profile
Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from Φ6 toΦ762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from Φ15 to Φ2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.
Our company mainly work on stainless steel pipe and tube, plate and sheet, rod and bar,
Material covered with Austenitic stainless steel, Ferritic steel, Nickel, Nickel based alloy, Inconel alloy, Incoloy, Hastelloy, high temperature resist alloy ,tubo de acero sin costura ,бесшовная стальная труба
Type of pipe and tube both in seamless and weld, according to final surface finished they can be classify into A&P(annealing and pickling) finished, BA(bright annealing) finished, EP(electropolishing electrolytic polishing),MP(mechanical polishing)

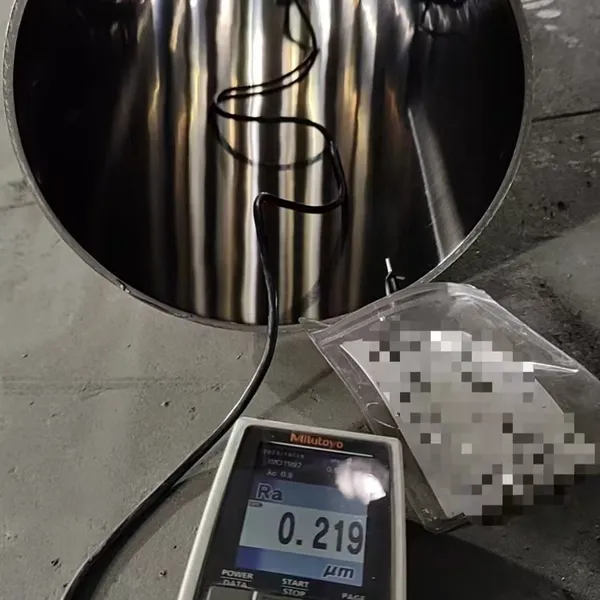

High-grade roughness for EP electropolishing tube, within 0.4um (micron) for outside/outer surface, within 0.2um (micron) for inside/inner surface
Detail of covered material/Grade
300 series austenitic: 304 304/304L 304H 30432(super 304H)321 321H 316 316L 316/316L 316H 317 317L 317LN 347 347H 310S 310H 310 314 S30815(253MA)
Duplex Grade and super duplex grade: 31803 UNS S31803 32205 2205 UNS S32205 32304 UNS S32304
Super duplex: 2507 32750 UNS S32750 32760 UNS S32760
Super austenitic: AL6XN N08367 N08904 904 904L S31254(254SMO)
Ferritic/Ferrite and Martensitic/Martensite 400 series: 405 410 430 409 439 429 430Ti
Nickel and Nickel alloy series:
Inconel: Inconel 600 N06600 Inconel 601 N06601 Inconel 625 N06625 Inconel 690 N06690
Hastelloy : Hastelloy B3 N10675 Hastelloy C 276 N10276 Hastelloy C 22 N06022 Hastelloy G35 N06035 Hastelloy G30 N06030
Monel: Monel 400 N04400
Incoloy: Incoloy800 N08800 800 Incoloy800H 800H N08811 Incoloy825 825 N08825 N08810 8810 Incoloy718 N07718 GH4169
Aolloy: Alloy 20 N08020 incoloy 20 Alloy 28 N08028 inc oloy 28 Alloy 31 N08031 incoloy 31
Nickel: N02200 Ni200 N02201 Ni 201
product purpose:
Stainless steel pipe is a kind of hollow long round steel and economical cross-section steel, which is widely used in life decoration and industry ,building material,food processing, storage and transportation,Plate heat exchangers, bellows, household products , auto parts , medical appliances, building materials, chemicals, food industry, agriculture, ship parts, industrial transmission pipelines and mechanical structural parts such as petroleum, chemical, medical, food, light industry, mechanical instruments,manufacture mechanical parts, engineering structures etc.
Duplex steel and super duplex steel is the most widely used chromium-nickel stainless steel.It has good corrosion resistance, heat resistance, low temperature strength and mechanical properties;Stainless steel 304 is suitable for indoor and outdoor decoration, building components, stair support Hands and railings, chemical equipment, oil pipelines and storage tanks, food processing equipment, kitchenware and medical instruments, automotive parts, aircraft structures and aerospace components, electronic equipment, power engineering, textiles,Industrial and Marine engineering
Product Display
Product Name |
Stainless Steel Pipe/Tube |
|||
Technology |
Hot Rolled Industrial Stainless Steel Tube Cold Rolled Decorative Stainless Steel Pipe |
|||
Material |
201, 202, 301, 302, 304, 304L, 310S, 316, 316L, 321, 430, 430A, 309S, 2205, 2507, 2520, 430 , 410, 440, 904Lect, Or Customized |
|||
Thickness |
0.4-50 mm |
|||
Length |
1-12 m |
|||
Outer Diameter(OD) |
10-2000mm |
|||
Standard |
ASTM, JIS, GB, AISI, DIN, BS,EN |
|||
Certifications |
ISO 9001 BV SGS |
|||
Packing |
Industry standard packaging or according to client's requirement |
|||
Brand |
TISCO,ZPSS,Baosteel,POSCO,LISCO,YUSCO,Ansteel, QPSS,JISCO,HXSCO, Chengde,Yongjin,Tsingshan,Shouyang,HW |
|||
Payment terms |
30%T/T in advance, the balance against the B/L copy |
|||
Delivery time |
Fast delievery in 7 days,up to order quantity |
|||
Warehose Stcok |
5000 tons per month |
|||
