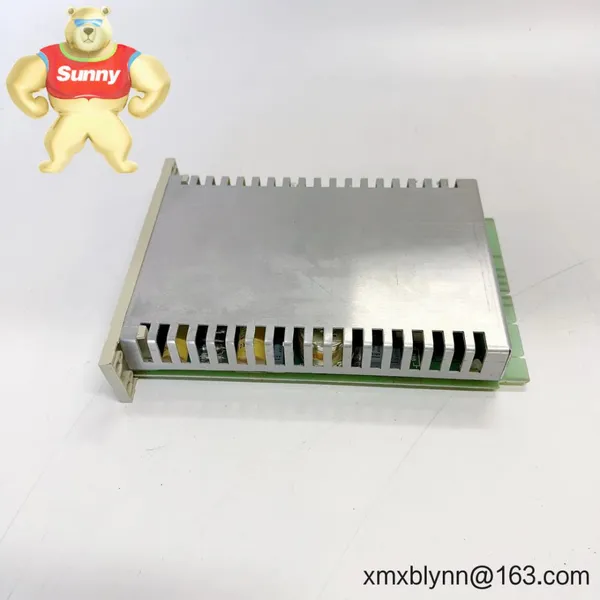

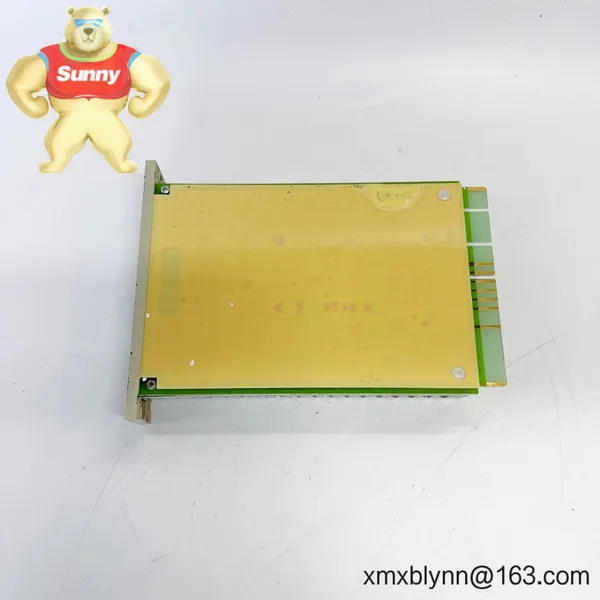

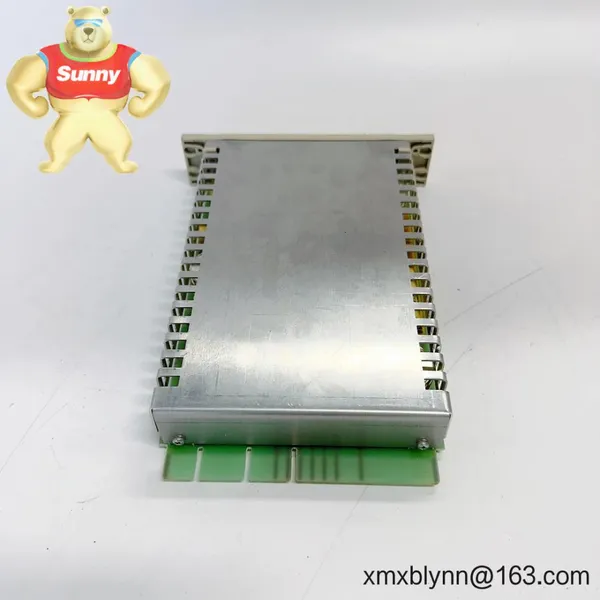

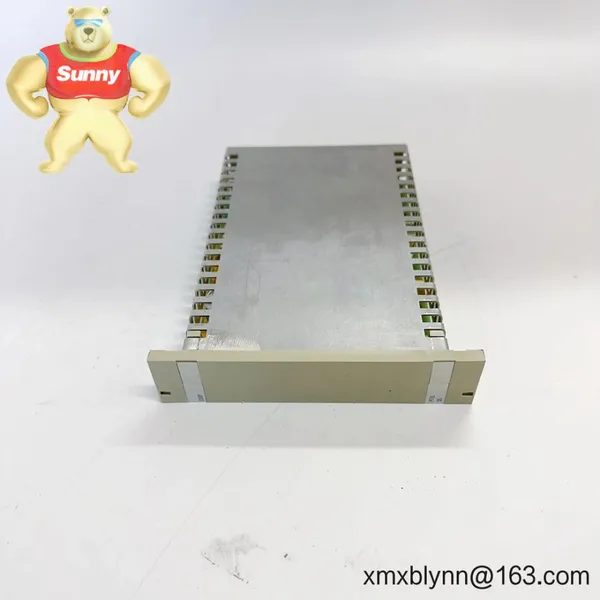

Help CenterE3EP HENF315276R1 PLC – Compact Control for Fast, Reliable Machine Automation
Related Products
-
ABB FI820F (3BDH000031R1) Fieldbus Module – Stable PROFIBUS DP Connectivity for Freelance AC 800FUS$ 1216.00MOQ: 1 Blade -
ABB FI830F (3BDH000032R1) – Core Bus Communication Module for PROFIBUS DP in Freelance AC 800FUS$ 1216.00MOQ: 1 Blade
-
ABB G3EB HENF315768R1 – High‑performance Industrial Control Module for ABB DCS/automation SystemsUS$ 2560.00MOQ: 1 Blade
-
ABB G3EFa HENF450295R2 Controller – Compact CPU Module for Stable Plant Control and Fast ReplacementUS$ 2560.00MOQ: 1 Blade
-
ABB G3ENa HENF450268R2 Controller – Ethernet-enabled Control Module for Modernizing and Maintaining Plant SystemsUS$ 2560.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week if in stock; no more than one month at the latest
Payment terms: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Compact DIN-rail form factor – Fits crowded control panels and OEM enclosures without redesign.
Discrete control made simple – Handles typical digital input/output tasks for machinery, conveyors, and packaging stations.
Analog capability (optional) – In many cases supports voltage/current signals for temperature, pressure, or flow loops.
Communication you actually use – RS-485/Modbus RTU is commonly available; Ethernet access via selected variants or add-on adapters.
IEC 61131-3 logic styles – Typically supports ladder diagram and function blocks so technicians can maintain it quickly.
High-speed counters and timers – Useful for encoders, print marks, and synchronized motion triggers on compact lines.
Event logging and diagnostics – Basic alarms and data tags help maintenance pinpoint issues faster.
Clean wiring – Pluggable terminals and clear labeling reduce panel assembly time and wiring errors.
| Brand/Model | E3EP HENF315276R1 – Programmable Logic Controller (PLC) |
| HS Code | 8537.10 (Programmable controllers) |
| Power Requirements | 24 VDC nominal (common for compact PLCs; confirm variant before ordering) |
| Dimensions & Weight | Compact DIN-rail module form factor, designed for shallow panels |
| Operating Temperature | Typically 0–55°C (32–131°F); verify per model option |
| Signal I/O Types | Digital inputs/outputs; optional analog (V/mA) on selected variants or expansion |
| Communication Interfaces | RS-485 (Modbus RTU) typical; Ethernet available via expansion or specific models |
| Installation Method | DIN-rail (TS-35) mounting; front-panel access to terminals |
Note: Specifications above reflect common configurations for this PLC family; we will confirm exact build options against your part code prior to shipment.
Packaging and labeling cells – discrete sequencing, interlocks, and sensor handling.
HVAC and utilities skids – fan/pump control, PID temperature loops, and alarm handling.
Material handling – conveyor zoning, jam detection, and simple speed reference control.
Food & beverage auxiliaries – small mixers, CIP valves, and level monitoring.
OEM machinery – compact control where a larger rack PLC would be excessive.
A packaging OEM shared that swapping to this model cut their commissioning time by roughly a third because the wiring was straightforward and the Modbus tags matched their HMI template out of the box. That seems to be a common theme with compact PLCs that favor practical features over niche options.
Advantages & ValueReliable core control – Solid digital I/O performance for the majority of machine tasks.
Cost-conscious footprint – Smaller panel space and simpler wiring typically reduce total installed cost.
Easy integration – Modbus RTU and optional Ethernet simplify PLC–HMI–VFD connectivity.
Lifecycle support – Long-term availability and straightforward replacement minimize downtime risk.
Technical backup – Pre-shipment configuration checks and documentation support if you need them.
Panel & environment – Install in a ventilated cabinet (IP54 or better for dusty areas). Keep clear of high-heat sources and VFD EMI where possible.
Wiring – Use ferruled terminations, segregate I/O and power from communication lines, and ground the DIN rail to reduce noise.
Power – A regulated 24 VDC supply with proper sizing and surge protection is typically recommended.
Safety – De-energize the panel before service; verify lockout/tagout and use proper fusing or circuit protection.
Routine checks – Inspect terminals quarterly, clean dust with dry air, back up the program, and document any firmware updates.
Calibration – For analog loops and temperature/PID tasks, verify scaling and recalibrate sensors during scheduled maintenance.
24 VDC DIN-rail power supply with overload protection
RS-485 surge protector/isolator for long Modbus runs
Ethernet communication adapter (if your HMI/SCADA standardizes on TCP/IP)
Analog expansion module (V/mA) for additional process signals
Shielded sensor cables and noise filters when installed near VFDs
Typically conforms to CE and RoHS for industrial control equipment
UL/cUL marking may apply depending on specific variant and market
Warranty: 365 days from our side; factory policies may vary by region
