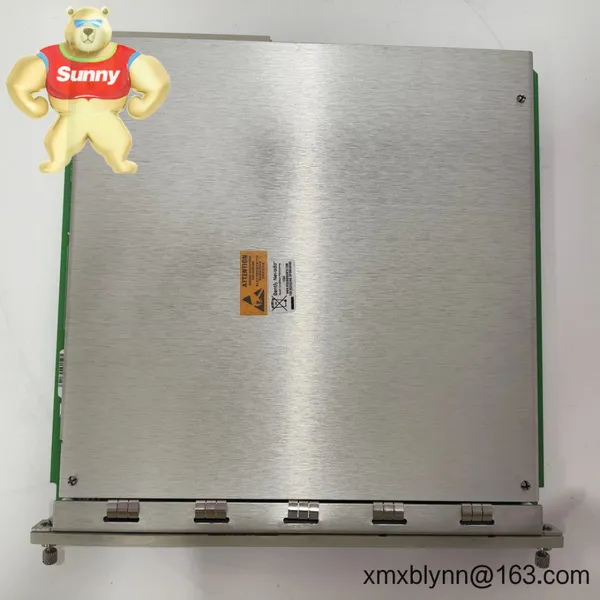

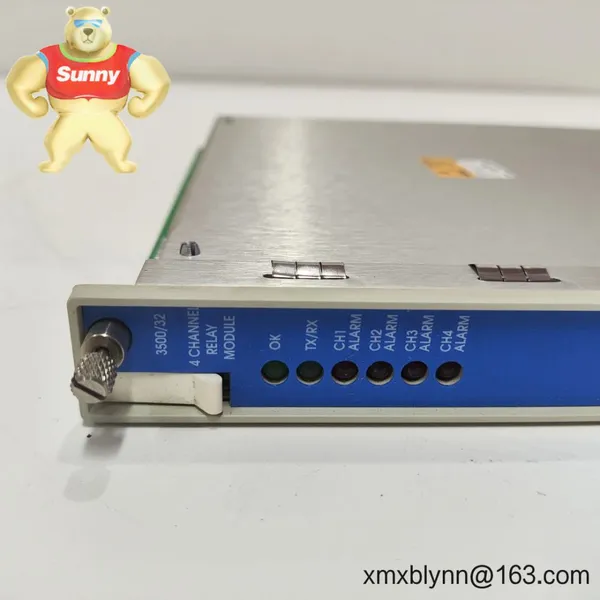

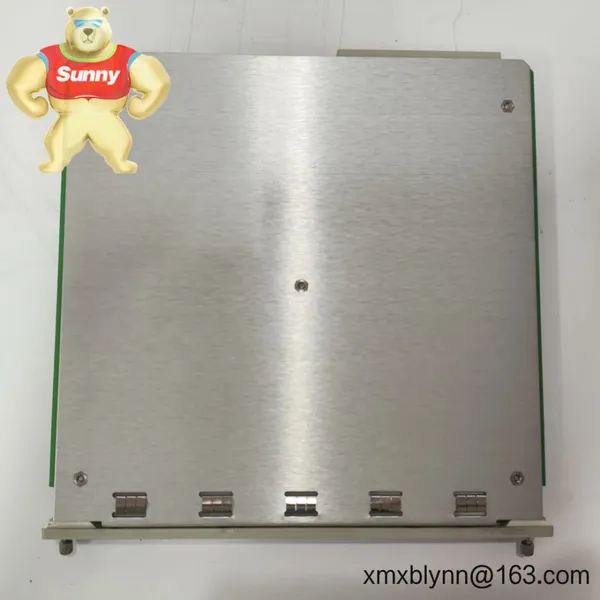

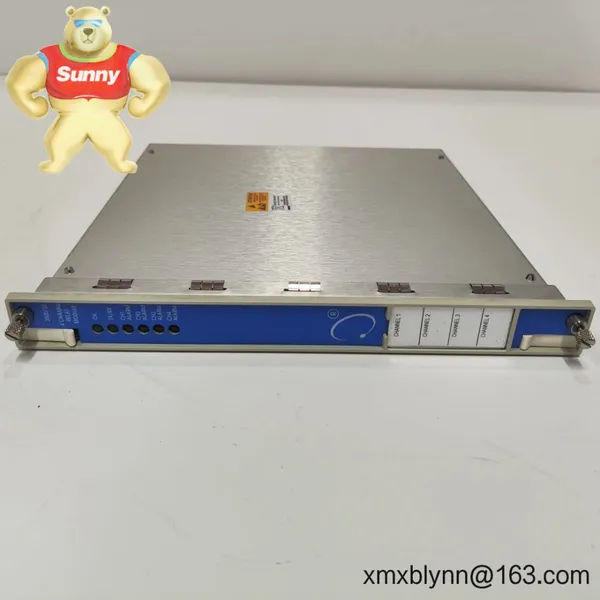

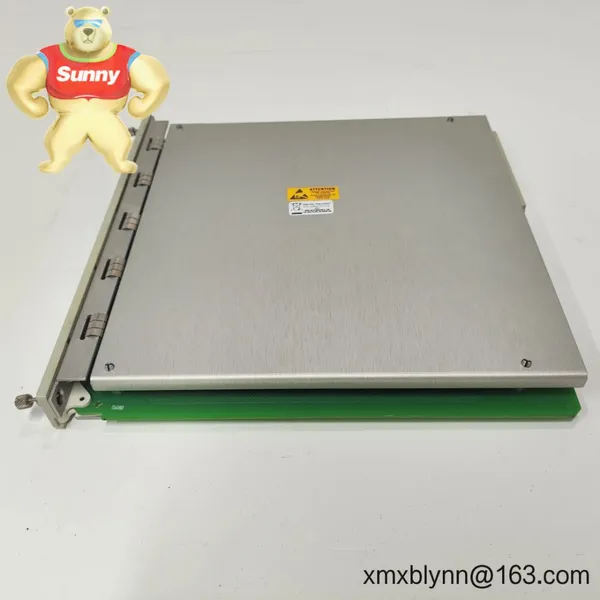

Help CenterBently Nevada 3500/32M 4-Channel Relay Module – Reliable Trip and Alarm Relays for the 3500 Machinery Protection Rack
Related Products
-
Bently Nevada 3500/64M Dynamic Pressure Monitor – High-fidelity Dynamic Pressure Protection for Turbomachinery and Combustion AssetsUS$ 3216.00MOQ: 1 Blade -
Rexroth BTV04.2GN-FW Operator Terminal – Compact HMI for Machine & Hydraulic Press ControlUS$ 2216.00MOQ: 1 Blade
-
Bently Nevada 330730-040-00-00 – 3300 XL 11 mm Extension Cable (4.0 m) for Proximity Transducer SystemsUS$ 216.00MOQ: 1 Blade
-
Bently Nevada 330106-05-30-90-02-CN – 3300 XL 8 mm Reverse-Mount Probe for Space‑Limited MachineryUS$ 2216.00MOQ: 1 Blade
-
Bently Nevada 330104-00-06-10-02-00 Proximity Probe – Cost‑Effective 8 mm Eddy-Current Sensing for Budget-Conscious ProjectsUS$ 216.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
Four independent relays – Provides four Form C (SPDT) dry-contact outputs for alarms and trips.
Programmable voting logic – Supports common schemes (e.g., 1oo2, 2oo3) typically used in API 670 applications, reducing nuisance trips.
Fail-safe and latching options – Configure contacts as energized/de-energized (fail-safe) and latching/non-latching to match site philosophy.
Backplane integration – Accepts alarm drives from any 3500 monitor channels via the rack backplane; no external link wiring required.
Trip integrity – You might notice that many plants install redundant relay modules to add voting diversity across racks; this module supports that approach.
Simple field wiring – Rear I/O module with terminal blocks for clean connection to DCS, ESD, or solenoid circuits.
Typical pairings – Often used alongside 3500/22M TDI (for configuration/communications), 3500/15 power supplies, and monitor modules like 3500/40M or 3500/42M.
| Brand / Model | Bently Nevada 3500/32M 4-Channel Relay Module |
| HS Code | 9032.90 (Parts for automatic regulating or controlling instruments) |
| Power Requirements | Powered from 3500 rack backplane; no external power to the module |
| Relay Channels | 4 outputs; Form C (SPDT) dry contacts; latching/non-latching; energized/de-energized selectable |
| Signal I/O Types | Outputs: dry-contact relays; Inputs: alarm drives received over rack backplane from 3500 monitors |
| Communication Interfaces | Module has no external comms; system communications via 3500/22M TDI |
| Installation Method | Front plug-in module with matching rear I/O module; typically occupies one rack slot |
| Operating Temperature | Typically 0 to +60 °C for 3500 modules (site conditions may apply) |
| Dimensions & Weight | Standard 3500 module form-factor; one front module + rear I/O (compact, rack-mounted) |
The 3500/32M is used wherever machinery protection signals must drive hardwired interlocks:
Compressor trains (centrifugal and reciprocating) – trip solenoids and seal system alarms.
Steam/gas turbines – overspeed/temperature trips combined with vibration shutdown voting.
Pumps, fans, blowers – high vibration, axial position, or bearing temperature trips to MCC/ESD.
Refining and petrochem plants – integration with SIS for API 670 alarm voting.
Power generation – annunciation and permissive interlocks to DCS/PLC systems.
One thing I appreciate is how cleanly it lets you map specific monitor alarms (Danger, Alert, Not OK) to dedicated contacts, so operations can separate plant trips from maintenance alerts.
Reliability: Industrial-grade relays and proven 3500 backplane logic for round-the-clock service.
Compatibility: Works across the 3500 family; easy to pair with 3500/22M, 3500/40M, 3500/42M.
Cost savings: Built-in voting reduces the need for external logic solvers for alarm selection in many cases.
Maintainability: Front module replacement without disturbing rear field wiring shortens MTTR.
Config flexibility: You can re-assign relay drives in software as plant logic evolves, no rewiring.
Feedback we hear from maintenance leads is pretty consistent: “We migrated trip logic to a pair of 3500/32M modules and cut nuisance trips by half, mainly thanks to 2oo3 voting and latching tweaks.”
Installation & MaintenanceCabinet & mounting: Install in a 3500 rack mounted in a well-ventilated cabinet; maintain adequate clearance for airflow.
Wiring: Use the rear I/O module terminal blocks; segregate trip wiring from low-level signal wiring; observe proper grounding.
Fail-safe practice: Many sites select “de-energized to trip” and latching behavior for high-integrity shutdowns.
Power & redundancy: Consider redundant power supplies (3500/15) and, where required, duplicate relay modules for voting diversity.
Routine checks: Periodically proof-test contacts and voting logic; verify alarm assignments after firmware or configuration updates.
Firmware/configuration: Configure via the 3500/22M TDI; back up configuration files after any change.
Cleaning: Keep front bezels and ventilation paths free of dust; avoid solvents and high-pressure air.
Certifications: Typically CE-marked; UL/cUL for industrial control equipment; many installations require Class I, Div 2 or ATEX Zone 2 compliance when installed per the 3500 system manual.
RoHS: Components and finishes generally comply with industry RoHS expectations for electronic assemblies.
Warranty: 365-day warranty coverage from shipment.
If you’re standardizing your shutdown logic across multiple trains, the 3500/32M seems to be a sensible choice—compact, configurable, and easy to service. You might notice the biggest gain when you enable voting and cleanly separate Alert vs Danger actions at the relay level.
