Jinwen Satellite Beacon (Tracking) Receiver 950 -1750MHz JW0951750-L
US$ 1150
2 - 9 Units
US$ 1050
≥10 Units
Key Specifications
Get Latest Price
Type:
Coaxial
Application:
Industrial, Commercial, Residential / General-Purpose
Usage:
TV, Other, Satellite signal tracking
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
35 days
Related Products
-
Jinwen RF Power Amplifier 10M-2000MHz, 10 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcNegotiableMOQ: 1 Unit -
Jinwen RF Power Amplifier 500-600MHz, 300 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcUS$ 1000 - 1150MOQ: 1 Unit
-
Jinwen RF Power Amplifier 600-700MHz, 300 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcUS$ 1000 - 1150MOQ: 1 Unit
-
Jinwen RF Power Amplifier 700-840MHz, 300 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcUS$ 1260 - 1450MOQ: 1 Unit
-
Jinwen RF Power Amplifier 960-1100MHz, 300 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcUS$ 1960 - 2100MOQ: 1 Unit
Type
Coaxial
Application
Industrial, Commercial, Residential / General-Purpose
Usage
TV, Other, Satellite signal tracking
Wave Range
Other, L
Customized
Customized
Specification
64*48*18mm
Trademark
jinwen
Origin
china
performance index
Main technical parameters
input frequency：950 -1750MHz
In band amplitude frequency：±1.5dB
Amplitude stability：1dB
Frequency setting step size：1K Hz
Working bandwidth：±55KHz（Can compensate for LNB frequency offset）
tracking bandwidth：±1KHz
Minimum working signal-to-noise ratio：42dBc/Hz
Input power level：-50dBm~-90 dBm*
Track the level slope of the receiver：maximum0.11V / dB
Indicate the output voltage range of the voltage level： 0~5V
response time：≤4mS
Communication protocol interface： RS-232，control frequency。

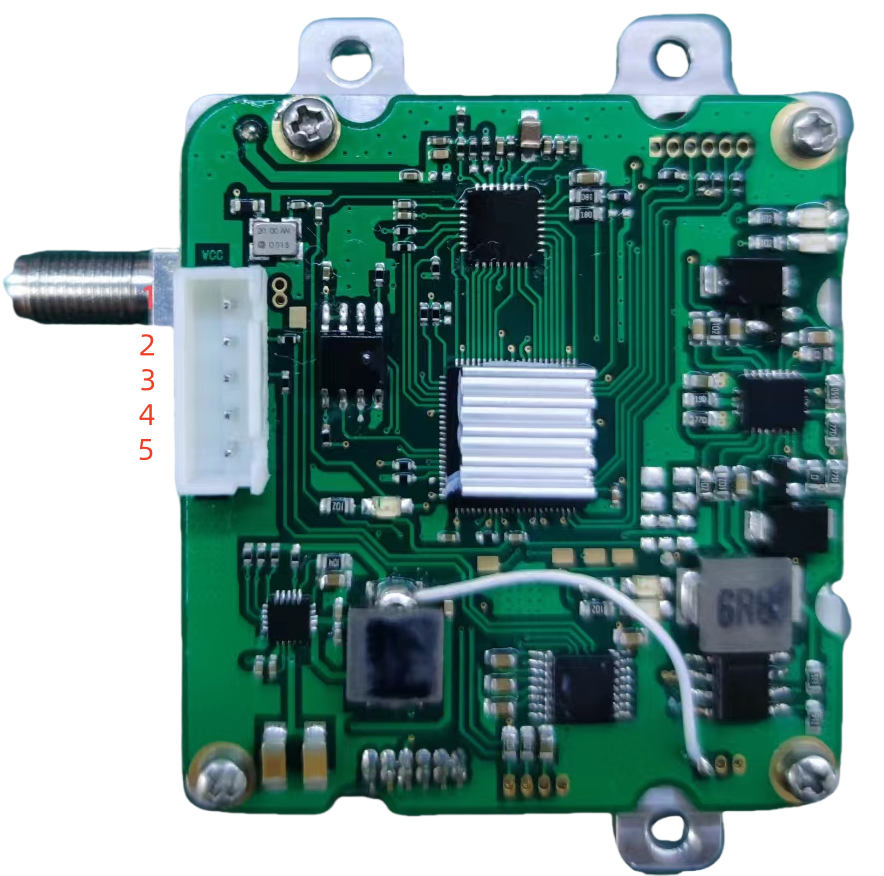

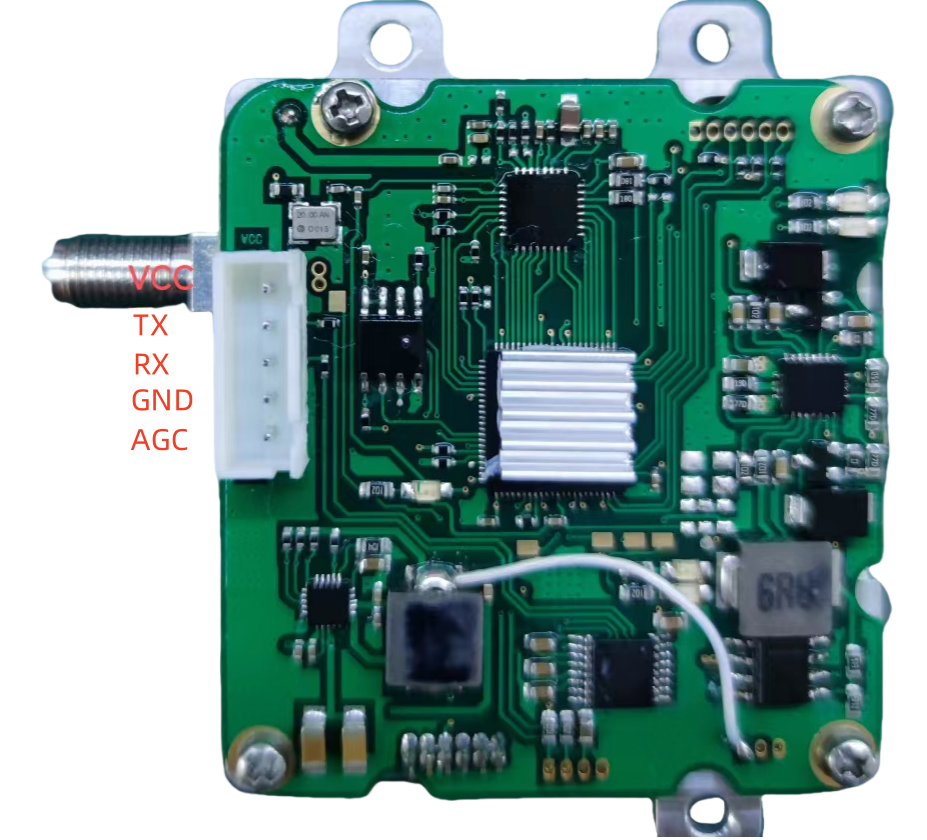

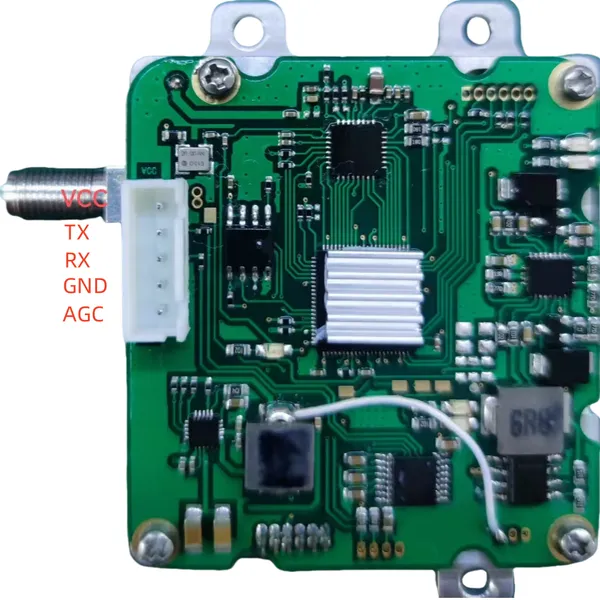

Interface specifications：2.54 Female
power supply：+12～+24V DC，Power consumption less than 3 watts
Ambient Temperature：-40ºC～+70 ºC
