Processing: |
Fermenting Equipment |
Condition: |
New |
Model Number: |
500L |
Processing Types: |
Beer |
Voltage: |
220V , 380V |
Keywords: |
Brewpub Beer Equipment |
Heating Way: |
Electric |

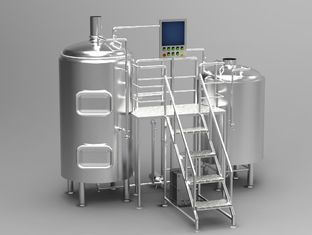

Shockproof Electric Commercial Microbrewery Equipment Semi Auto Control Panel
Fermenters description
The conical fermentation tanks have a dished top with cylindrical body. The 60 degree conical bottom is ideal for fermenting and improving the quality of beer as well as breeding yeast. All the tanks are food grade stainless steel 304 with a 3mm thickness for 100l-5000l, but larger tank is 4mm thickness. The cooling system is a dimple jacket with insulated polyuranthane filling.
It is 100% stainless steel. All tanks comes with 25% head space on top of working volume. All cone come with racking arm. It allows you to start your siphon with the racking arm horizontal, and rotate it slowly downward until you just start picking up yeast sediment.
Product Description
• Mash Lauter Tun with grist hydrator
• Kettle Whirlpool Tank with heating jacketed
• Grant Tank
• Stainless steel Platform
• Plate Heat Exchanger
• Sanitary Wort Pump x2;
• Wort Oxygenator;
• Semi-Auto Control Panel;
• Interior surface to finish pickled and passivated
• Exterior surface to brushed, #4 finish
Or
• Interior surface to polished to RA≤0.22μm
• Exterior surface adapts satin polish.
Method of Heating Ways:
• Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;
• Electric: Use electric heaters in jacket to heat the medium in the jacket
• Gas fired: Use gas burner at bottom to heat tank directly;
