Help CenterMicro Hotel Beer Factory Machine Small Scale Brewing System 1000L 3mm Thickness
Related Products
-
Micro Restaurant Copper Brewing Equipment Steam Or Electrical HeatingNegotiableMOQ: 1 Set -
PLC Control Copper Beer Small Home Brewing Systems , Mini Beer Brewery EquipmentNegotiableMOQ: 1 Set
-
Professional Copper Mirror Small Beer Brewing Systems , Nano Brewery EquipmentNegotiableMOQ: 1 Set
-
Pub Hotel Micro Beer Brewing Equipment 500l Red Copper Brew Kettle Steam HeatingNegotiableMOQ: 1 Set
-
Restaurant Copper Brewing Equipment Steam Heating 1000L 2 Or 3 VesselsNegotiableMOQ: 1 Set
Material: |
Red Copper |
Capacity: |
1000L |
Thickness: |
3mm |
Power Supply: |
According To Your Power Supply |
Heating Way: |
Steam Heating |
Vessels: |
2 Or 3 Vessels |

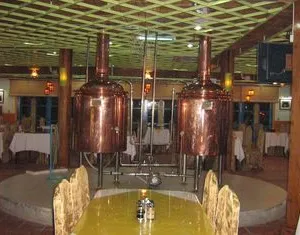

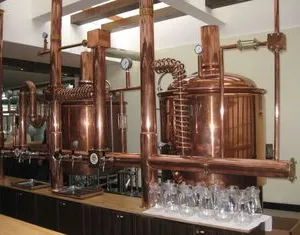

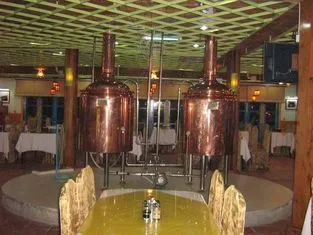

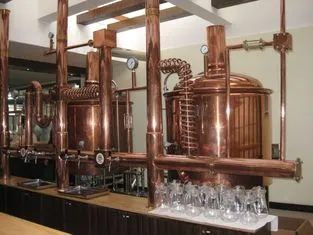

Micro Hotel Beer Factory Machine Small Scale Brewing System 1000L 3mm Thickness
Mash tun/ Lauter tun
1. Dished head top head, cone shaped bottom;
2. Dimensions: φ1360×2600,
3. Total volume 1300L, effective volume 1000L
4. Rock wool insulation, insulation thickness 80mm;
5. Inner tank thickness 3mm, cladding thickness 2mm;
6. Top mechanical rake system, gear speed reducer,
motor power 0.75kw. Side grain discharge port,
7. Wedge wire false bottom, with intense support, with unload handle;
Filter plate bottom with under flush valves, with wort collection device;
8. CIP rotatable spray balls 2 pieces, with sparge ring;
9. Top manhole, φ500mm, with glass sight glass;
10. Top LED sight light;
11. PT100 temperature probe;
12. Stainless steel try-clamp level gauge, with stainless protection tube;
13. SUS304 grain discharge valve 430*330, with grain discharge tube attached.
Welding seams wire brushed polished;
14. 4 legs, with adjustment bolts, 2 fixing holes on the base plates;
15. Decoration tube (according to your plant height)
16. Assorted valves and fittings
Wort kettle /whirlpool tank
1. Dished head top head, cone shaped bottom;
2. Dimensions: φ1360×2600,
3. Total volume 1300L, effective volume 1000L
4. Rock wool insulation, insulation thickness 80mm;
5. Inner tank thickness 3mm, cladding thickness 2mm;
6. Steam heating: Side and cone steam heating jacket, bottom Cone heating(patent product No. 2009200271826), Heat transfer area 1.46m2;
7. Top mechanical agitation: Cycloid reducer, motor power 0.75kw;
8. CIP rotatable spray balls 2 pieces
9. Top manhole, φ500mm, with glass sight glass;
10. Top LED sight light;
11. PT100 temperature probe;
12. Stainless steel try-clamp level gauge, with stainless protection tube;
13. Welding seams brushed polished;
14. 4 legs, with adjustment bolts, 2 fixing holes on the base plates;
15. Indoor vapor condense device, with steam condensate tube;
16. Assorted valves and fittings
