Material:Red Copper
Capacity:1000L
Thickness:3mm
Power Supply:According To Your Power Supply
Heating Way:Steam Heating
Vessels:2 Or 3 Vessels
After-sales Service Provided::Engineers Available To Service Machinery Overseas
Name:Beer Factory Fermenter
Insulation Material::Polyurethane Or Rock Wool
Quality Control::48 Hours Jacket And Welding Joint Pressure And Water Testing

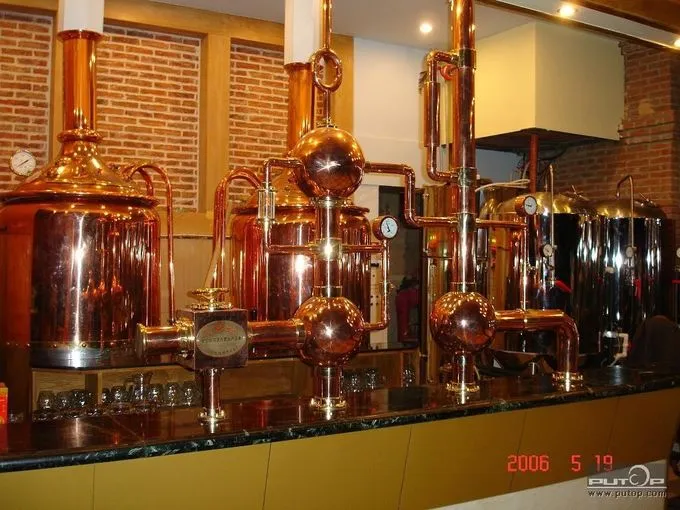

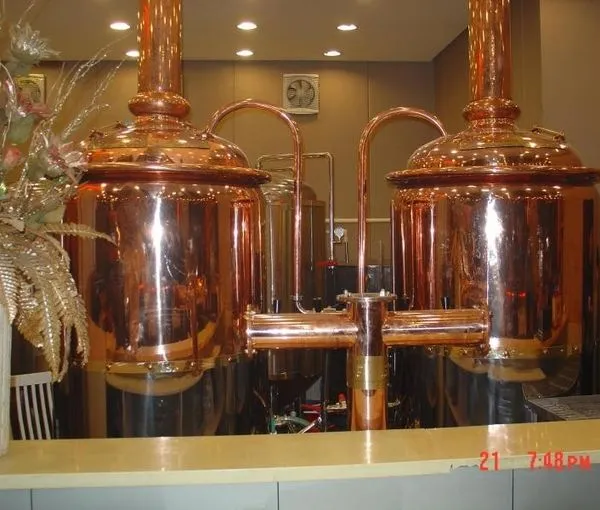

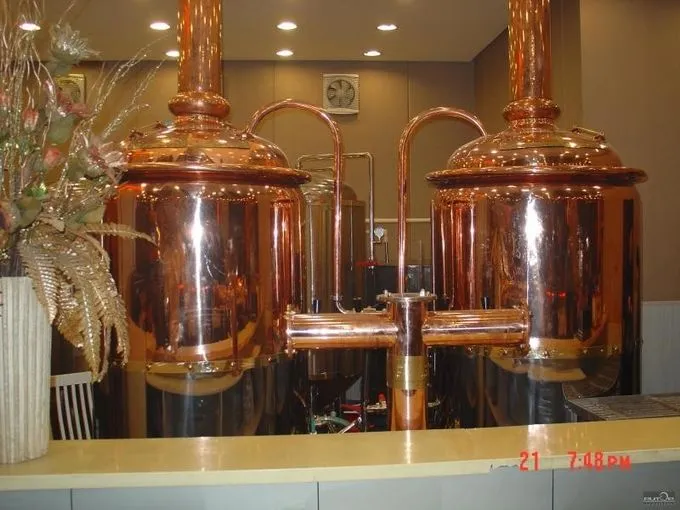

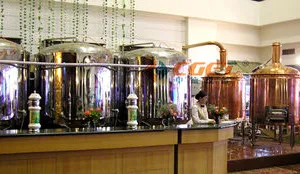

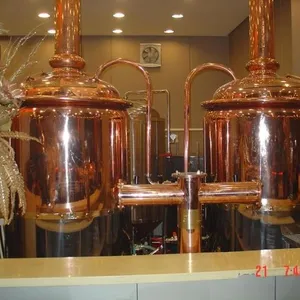

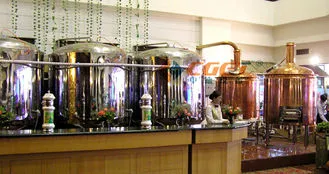

Restaurant Copper Brewing Equipment Steam Heating 1000L 2 Or 3 Vessels
CGET 100L 200L 300L 500L 1000L 2000L copper beer equipment, widely used in restaurant and bar.super design and best service.The copper beer mash equipment is populared in restaurant and bar more and more.
We are a biggest and professional beer equipment manufacture in China, we also manufacture all types and sizes of fermenting and storage tanks.
Our beer equipment can be designed according to the specific wishes of our customers.
Mash tun/ Lauter tun
1. Dished head top head, cone shaped bottom;
2. Dimensions: φ1360×2600,
3. Total volume 1300L, effective volume 1000L
4. Rock wool insulation, insulation thickness 80mm;
5. Inner tank thickness 3mm, cladding thickness 2mm;
6. Top mechanical rake system, gear speed reducer,
motor power 0.75kw. Side grain discharge port,
7. Wedge wire false bottom, with intense support, with unload handle;
Filter plate bottom with under flush valves, with wort collection device;
8. CIP rotatable spray balls 2 pieces, with sparge ring;
9. Top manhole, φ500mm, with glass sight glass;
10. Top LED sight light;
11. PT100 temperature probe;
12. Stainless steel try-clamp level gauge, with stainless protection tube;
13. SUS304 grain discharge valve 430*330, with grain discharge tube attached.
Welding seams wire brushed polished;
14. 4 legs, with adjustment bolts, 2 fixing holes on the base plates;
15. Decoration tube (according to your plant height)
16. Assorted valves and fittings
1. Dished head top head, cone shaped bottom;
2. Dimensions: φ1360×2600,
3. Total volume 1300L, effective volume 1000L
4. Rock wool insulation, insulation thickness 80mm;
5. Inner tank thickness 3mm, cladding thickness 2mm;
6. Steam heating: Side and cone steam heating jacket, bottom Cone heating(patent product No. 2009200271826), Heat transfer area 1.46m2;
7. Top mechanical agitation: Cycloid reducer, motor power 0.75kw;
8. CIP rotatable spray balls 2 pieces
9. Top manhole, φ500mm, with glass sight glass;
10. Top LED sight light;
11. PT100 temperature probe;
12. Stainless steel try-clamp level gauge, with stainless protection tube;
13. Welding seams brushed polished;
14. 4 legs, with adjustment bolts, 2 fixing holes on the base plates;
15. Indoor vapor condense device, with steam condensate tube;
16. Assorted valves and fittings
mini brewing equipment/microbrewery for sale brewing equipment
Application
professional home microbrewery basic home brewing equipment has been widely used around the world, such as small breweries, hotels, bars, teaching laboratories and leisure field, according to the German Munich pure vinification, divided into "Larger" and "Ale" two series, brewing barley beer, wheat beer, dark beer, green beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.
Technical Characteristics:
1- All AISI-304 Stainless Steel Construction
2- Jacketed & Insulated
3- Dual Zone Dimple Cooling Jacket
4- Dish Top & 60° Conical Bottom
5- 3 Stainless Steel Legs with Leveling Portstype specimen book.
Fermenter Includes:
1- Top Manway or Side Shadow less Manway
2- Racking Port with Tri-Clover Butterfly Valve
3- Discharge Port with Tri-Clover Butterfly Valve
4- 2 Tri-Clover Outlets with Butterfly Valves
5- CIP Arm and Spray Ball/Sample Valve/Safety ValvePressure Gauge
6- Thermowell with Tank Thermometer
PRODUCT FEATURES:
1- Desiging tanks and heating system according to craft, mash tank warming≥10℃/min
2- Energy saving stir structure : large cross-section impeller, 15r/min speed
3- Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4- Plow knife of filter tank separated to one foot, feet and bow plow knife
5- Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6- Material includes stainless steel 304, 316 and red copper
Whether your in need of additional Fermenters or Bright Tanks for your existing brewery, or need an entire Brewhouse we have you covered. We can have any tank custom built to your specific size and style requirements. Copper Cladding is available on any fermenter, bright tank, mash tun/ brew kettle, lauter tun/ whirlpool etc.
More Equipment for your reference
Except the professional home microbrewery basic home brewing equipment , we still make:
professional home microbrewery:50L~200L mini brewery, for home brewery fan, mini brasserie
basic home brewing equipment: 100L~5000L, 5BBL~30BBL, 1hl~50hl or even larger
Fermenters/Unitanks:50L~10000L
Bright beer tanks/Serving tanks/Conditioning tanks: 50L~10000L
Beer selling: Beer selling tanks, beer machine, bar used beer tap/tower
Bottling: manual/semi-auto bottle filling, bottle rinser, bottle washing, capping machine
Kegging: stainless steel beer kegs, dispensers, single-head keg filling&Washing,
double head keg filling&Washing
