WHE1000 Pedestal Breaker Boom Systems

WHE1000 Pedestal Breaker Boom Systems

Main Parameters of WHE1000 Pedestal Breaker Boom Systems:

The Features of WHE1000 Pedestal Breaker Boom Systems:

The core design of WHE1000 Pedestal Breaker Boom Systems centers on rugged durability and high adaptability.

First, it typically employs a curved arm structure. Compared to straight arms, curved arms offer superior working range and improved operating angles. This is particularly advantageous when clearing material blockages at crusher discharge points, enabling more effective penetration into material piles for prying and breaking operations.

Second, it incorporates a fully hydraulic drive system. This means the entire arm is powered by a hydraulic pump, delivering immense digging and crushing forces capable of tackling the hardest minerals and most severe blockages. The hydraulic system operates smoothly with controllable power output.

Third, its critical components undergo reinforcement. The working arm itself is constructed from high-strength steel, while parts subjected to immense shear forces—such as pins and bushings—typically undergo specialized heat treatment. This process enhances hardness and wear resistance, significantly extending the equipment's lifespan under harsh operating conditions.

Finally, it supports 360-degree continuous rotation. Its ingeniously designed rotation mechanism prevents hydraulic lines from tangling during swiveling, allowing the boom to rotate continuously without positional limits. This delivers unmatched flexibility in confined spaces, eliminating the need for frequent vehicle repositioning.

The Benefits of WHE1000 Pedestal Breaker Boom Systems:

Key Advantages

The benefits of WHE1000 Pedestal Breaker Boom Systems directly align with its design features, manifesting across efficiency, economy, safety, and reliability.

In terms of efficiency gains, it serves as a powerful solution for clearing bottlenecks in production lines. When the discharge port of a primary crusher becomes blocked by large ore chunks, the WHE1000 can swiftly intervene, clearing the obstruction within minutes. This instantly resolves a situation that might otherwise require hours of downtime for manual cleanup, ensuring continuous and efficient operation of the entire sand and gravel aggregate production line.

Economically, it excels with significantly lower power consumption than comparable large equipment (e.g., excavators), using approximately one-sixth of the energy. Its robust construction and targeted design also result in lower failure rates, effectively controlling long-term maintenance and upkeep costs.

Safety and environmental compliance are enhanced through remote control operation. Operators work from a comfortable, secure control room away from hazardous zones (e.g., falling objects, dust, noise), significantly improving personnel safety. As a purely electric, stationary unit, it produces zero exhaust emissions at the worksite, aligning with modern factory environmental standards.

Its rugged durability ensures sustained, stable operation under heavy loads and high-impact conditions, delivering long-term investment returns for users.

The Application of WHE1000 Pedestal Breaker Boom Systems:

WHE1000 Pedestal Breaker Boom Systems find concentrated application primarily in heavy industrial sectors.

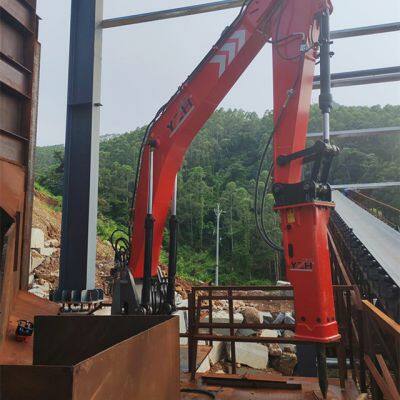

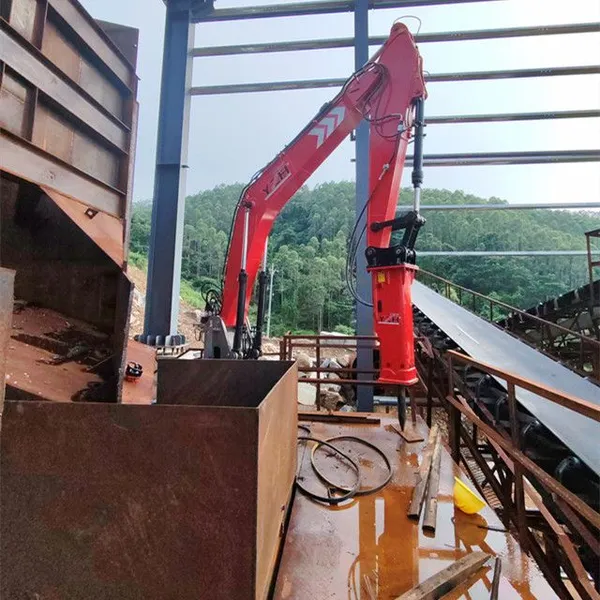

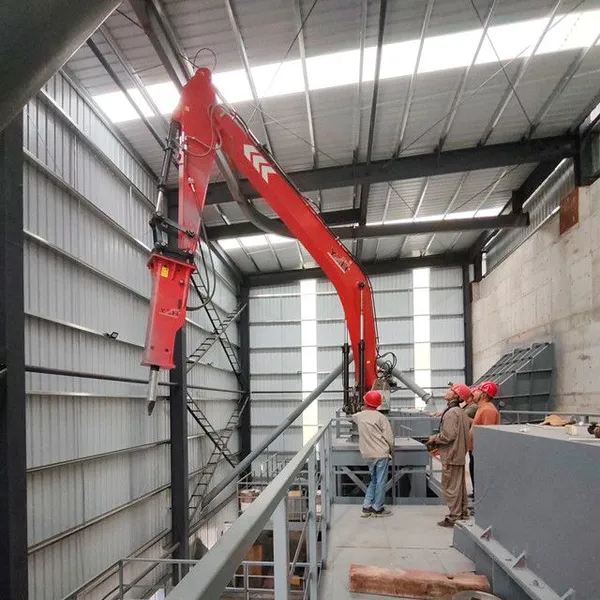

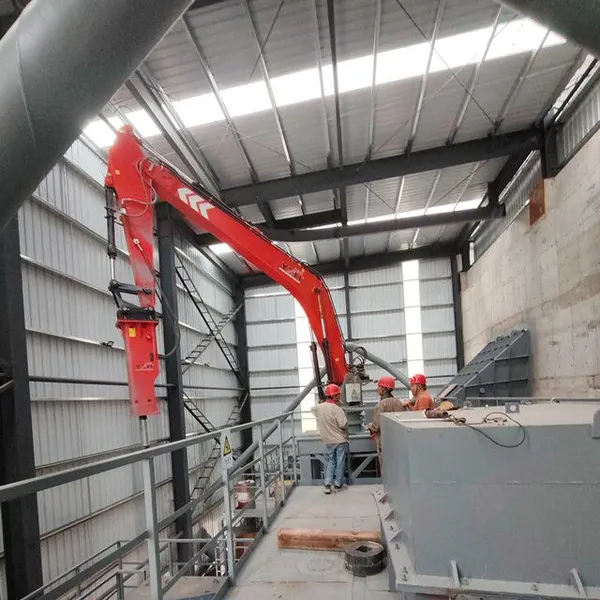

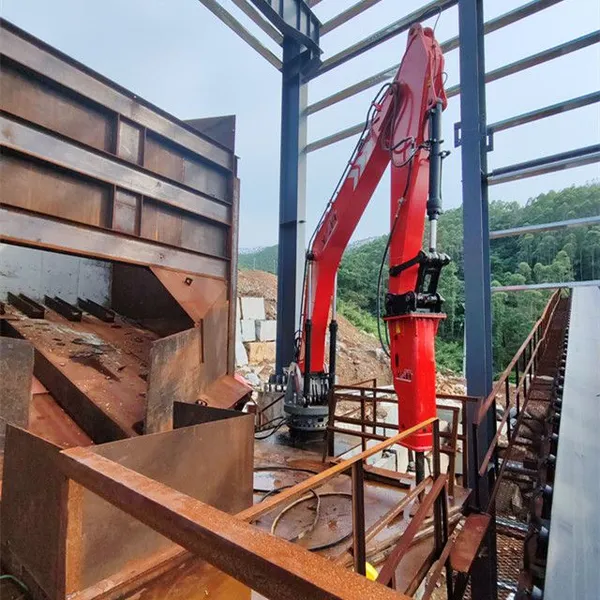

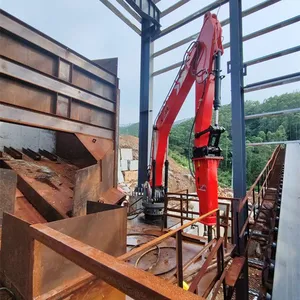

A classic application is in large quarries or aggregate production lines. It is typically fixed directly above the discharge chute of primary jaw crushers or gyratory crushers. When large rock fragments from blasting become compressed at the crusher outlet, forming an “arch bridge” that causes severe blockages, operators remotely activate the WHE1000. The robotic arm extends its robust articulated arm, utilizing a hydraulically powered breaker or rammer head mounted at its tip to precisely impact, crush, and clear the blockage, rapidly restoring production.

Additionally, in metallurgical steelworks, it can handle large slag clumps solidified in ladles or slag pits. In underground mines, it is sometimes installed near grate screens to break down oversized raw ore that cannot pass through the mesh.

In summary, the YZH WHE1000 Pedestal Breaker Boom System is a highly efficient, cost-effective, and reliable industrial solution engineered for extreme conditions. It serves as the “road sweeper” ensuring uninterrupted flow in critical crushing operations.
