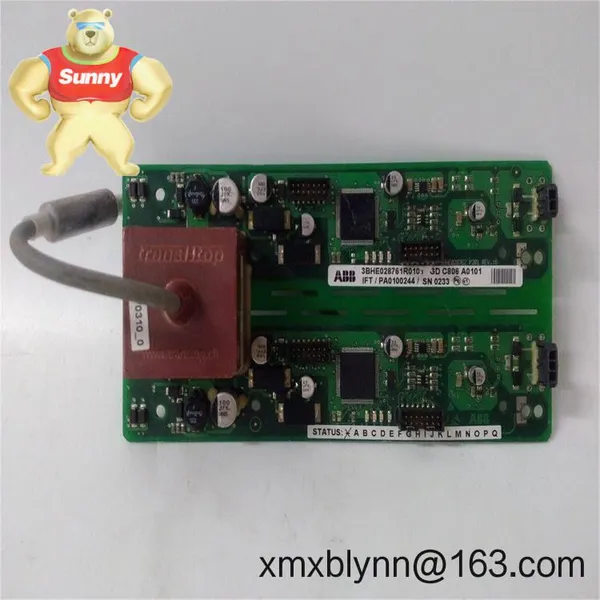

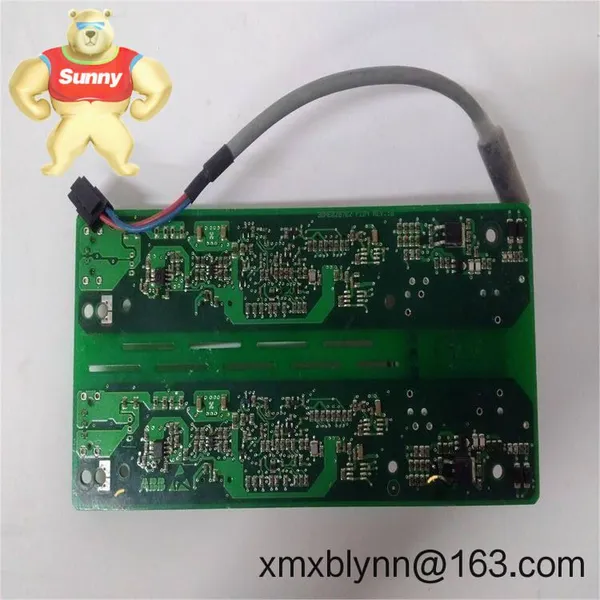

Help CenterABB GDC806A0101 (3BHE028761R0101) – Gate Drive Controller Board for High-Power/Medium-Voltage Drive Systems
Related Products
-
ABB GDB021BE01 (HIEE300766R0001) – Advant/MasterPiece Rack Module for System Expansion and Lifecycle ServiceUS$ 4360.00MOQ: 1 Combo -
ABB GDD360C (3BHE047217R0101) – Gate Driver Board for IGCT Power Stacks in Medium-Voltage DrivesUS$ 2360.00MOQ: 1 Combo
-
ABB GFD212A (GF D212A) 3BHE020356R0101 – Gate Firing / Drive Interface Board for ABB Industrial & Medium-Voltage ConvertersUS$ 1360.00MOQ: 1 Combo
-
ABB GFD563A102 (3BHE046836R0102) – Control/Driver Board for ABB Excitation and Drive CabinetsUS$ 1360.00MOQ: 1 Combo
-
ABB GFD563A101 (3BHE046836R0101) – Control/Interface Board for ABB Industrial Drive & Excitation CabinetsUS$ 1360.00MOQ: 1 Combo
Warranty: 365 days
Lead time: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
From my experience, fast replacement of this board noticeably reduces downtime on MV drives. We typically help customers match firmware/hardware revisions so the unit integrates smoothly with the existing stack.
Key FeaturesGate drive coordination: Manages firing patterns and interlocks to the power devices through fiber‑optic channels.
High isolation design: Fiber links and opto‑isolation reduce electrical noise coupling in high dV/dt environments.
Real-time protection: Monitors feedback for desaturation/trip conditions and propagates fast shutdown commands.
Backplane integration: Plug‑in connection to ABB control backplanes for compact routing and serviceability.
Status diagnostics: On‑board indicators and signal test points make commissioning and fault tracing easier.
Form-fit compatibility: Designed to fit ABB GDC8xx locations, helping maintenance teams swap boards quickly.
| Brand / Model | ABB GDC806A0101 (GD C806 A0101) / 3BHE028761R0101 |
| HS Code | 850490 (Parts for static converters, e.g., drive systems) |
| Power Requirements | 24 VDC nominal, low-power control electronics (typical cabinet supply) |
| Operating Temperature | 0 to +55 °C typical control cabinet conditions (non‑condensing) |
| Signal I/O Types | Fiber‑optic gate trigger/feedback channels; opto‑isolated digital signaling; local status LEDs and test points |
| Communication Interfaces | Backplane connector to main controller; fiber links to gate units; service/diagnostic headers (as per board revision) |
| Installation Method | Plug‑in PCB module for ABB drive cabinet; secured on rails/screws; ESD‑safe handling required |
| Form Factor | Board‑level assembly (GDC8xx footprint), lightweight, cabinet‑mounted |
You’ll typically find the GDC806A0101 in ABB medium‑voltage drives and large converters used in:
Metals (rolling mills, roughing stands, process lines)
Cement & mining (kilns, fans, conveyors, hoists)
Oil & gas and chemicals (compressors, extruders, pumps)
Marine & ports (thrusters, propulsion, crane drives)
Power & utilities (test benches, excitation/converter systems)
One thing I appreciate is how this board streamlines fiber‑optic gating—installers often mention quicker commissioning when replacing like‑for‑like GDC8xx modules.
Reliability: Purpose‑built for high‑energy power stages with noise‑immune signaling.
Compatibility: Form‑fit board for ABB GDC8xx locations; supports common fiber‑optic gate units used in MV stacks.
Cost control: Direct replacement reduces engineering time and limits unplanned downtime.
Support: We can help check board revisions and fiber mapping so the swap is straightforward.
Cabinet environment: Mount inside a clean, ventilated control cabinet; avoid condensation and corrosive atmospheres.
Wiring/fibers: Keep fiber bend radius within spec; label TX/RX pairs; route away from high‑current busbars.
Grounding & EMC: Verify cabinet bonding; maintain shield terminations per ABB layout to minimize noise.
ESD & handling: Use grounded wrist straps and ESD mats; handle by edges only.
Firmware/parameters: Match board revision and firmware to the drive controller; back up parameters before changeout.
Routine care: Periodically clean dust with dry, oil‑free air; check connectors; review event logs after trips.
CE-compliant as part of the complete ABB drive system
RoHS/REACH-aligned materials (typical for ABB control PCBs)
Manufactured under ISO 9001 quality systems at the OEM level
Warranty coverage: 365 days
Customer feedback (compressor line, EMEA): “Swap took less than an hour. Fiber mapping matched our existing gate units and the drive was back online the same shift.”
