Home > Industrial Equipment & Components > Cleaning Machine > High Pressure Cleaner > Petrol 500mm Pipe Sewer Drain Cleaner Jetting Machine Manual Metal 200bar Pressure New Condition With Water Cleaning Process

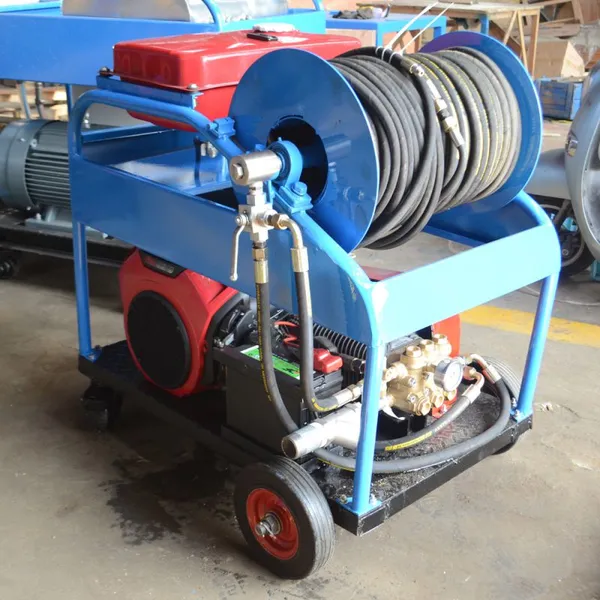

Petrol 500mm Pipe Sewer Drain Cleaner Jetting Machine Manual Metal 200bar Pressure New Condition With Water Cleaning Process
US$ 2800.00
1 - 4 Piece
US$ 2500.00
5 - 9 Piece
US$ 2200.00
≥10 Piece
Key Specifications
Get Latest Price
Certification:
CE
machine type:
HIGH PRESSURE CLEANER
condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional High-pressure Cleaning Equipment Dredging Machine Water Jet Sewer Cleaning Machine Drain Jetting MachineUS$ 2200.00 - 2800.00MOQ: 1 Piece -
6-cylinder Diesel 300-1200mm Drain Pipe Cleaning Water Jetting Machine Sewer High Pressure Cleaning MachineUS$ 2000.00 - 2500.00MOQ: 1 Set
-
Hot Sale 200bar Petrol Pressure Washer Sewer Drain Pipe Cleaner Drainage Pipeline Cleaning Machine New ConditionUS$ 2200.00 - 2800.00MOQ: 1 Piece
-
Hot Sale 24hp High Pressure Gasoline Pressure Washer 200bar New Condition Petrol Water Jet for Cold Water Sewer Pipe CleanerUS$ 2200.00 - 2800.00MOQ: 1 Piece
-
Petrol Engine High Pressure Sewer Jetter New Cold Water Cleaner for Efficient Drain Pipe CleaningUS$ 2200.00 - 2800.00MOQ: 1 Piece
Certification
CE
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
shenyang, China
brand name
RELIABLE
power source
Gasoline / Petrol
use
sewer drain pipe cleaning
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
24
dimension(l*w*h)
100x80x100cm
warranty
1 Year
weight (kg)
220
Voltage
380 V
Pump Type
TRIPLEX
Horsepower
24HP
Water Tank Capacity
100L
Flow Rate
50 L/min
Pump Drive
direct mount
Pressure Washer Duty
Heavy-Duty
Product Name
Sewer drain pipe cleaner
Rate pressure
20Mpa/200bar
water flow
50-85L/min
electric motor
15kw 3 phase
gasoline engine
24HP-27Hp
hose reel
manual operate with 50 meter hose
pipe cleaning nozzle
DN 40-DN 100
cleaning pipe dia.
50-500mm
delivery date
ready in stock
color
welcome customized

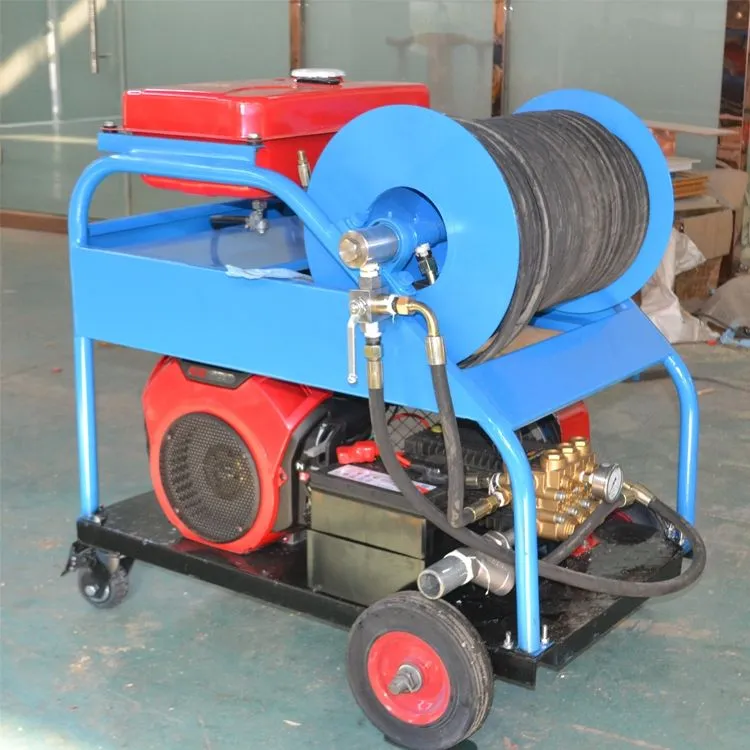

Sewer drain pipe cleaning machine
High pressure water jet cleaning machine, with large water flow 50-170L/min, pressure 24Mpa; use suitable pipe cleaning nozzle-multi hole jetting nozzle, better for sewer drain inner pipe cleaning, to unclog the blocked pipe.
Name |
sewer drain pipe cleaner |
Engine drive |
gasoline engine / Diesel engine |
power |
24HP 27HP 35HP 56HP |
Rate pressure |
200bar -240bar-300bar |
water flow |
50L/min 85L/min 170L/min 250L/min 300L/min can be chosen |
hose reel |
automatic hydraulic hose reel |
water filter |
water inlet filter 80um |
how to choose |
according to the pipe diameter you plan to cleaning |
Model |
Rate pressure |
Water flow |
Electric power |
Diesel power |
cleaning pipe dia. |
RLB17024 |
240MPa/240bar |
170 L/min |
90kw |
145kw |
100~1500mm |
RLB8520 |
20Mpa/200bar |
85 L/min |
30kw |
41kw |
50~800mm |
RLB5020 |
20Mpa/200bar |
50 L/min |
15kw |
28HP |
50~400mm |

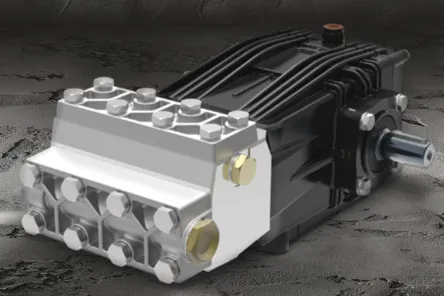

Name: High pressur plunger pump
Model: RLB5020
Rate pressure: 20Mpa/200bar
water flow:50 L/min
Pump speed： 1450rpm
plunger stroke: 21mm
plunger diameter:28mm
with pressure gauge and safety valve

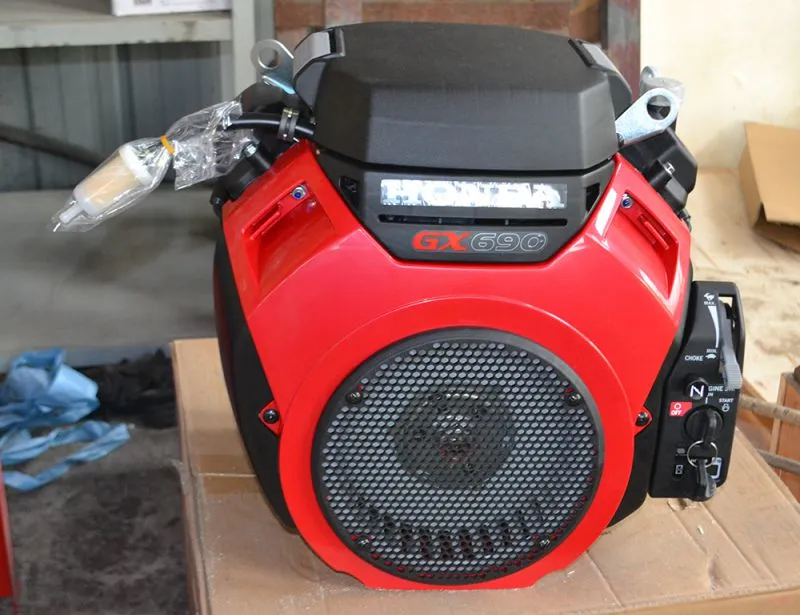

Name: Gasoline engine
Power: 24HP/27HP double-cylinder
Speed： 1500rpm
start type: electric start, 12v/45Ah
belt connect with high pressure pump

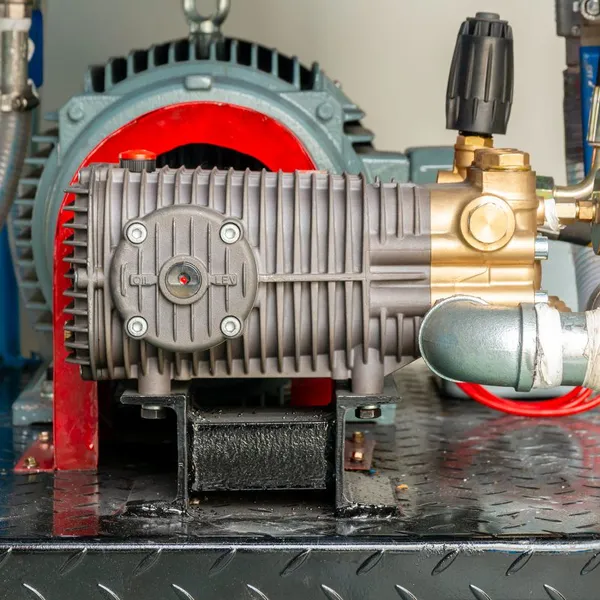

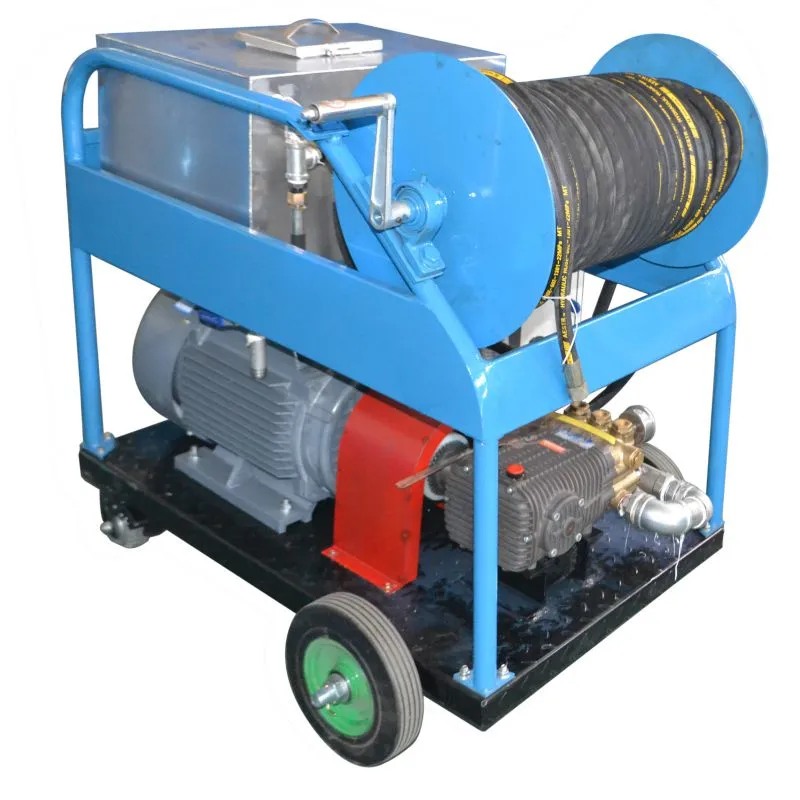

Name: Electric motor
power: 15kw; 3-phase, 380v/50Hz
Volt also can be customized
440v/460v/220v,etc
Speed： 1500rpm
contact with high pressure pump
customized automatic cleaning device
water spray gun cleaning
automatic cleaning device
Mul-ti hole jetting nozzle
M22*1.5 thread
material: stainless steel
Size: DN20/30/40/50/80
Rotary pipe cleaning nozzle
connect: 1/2'' M22*1.5 or customized
mul-ti hole jetting, body rotary
high effect for pipe cleaning
large pipe cleaning nozzle
alumium material, light weight;
easy to be operate
for large diameter pipe cleaning
plastic pipe cleaning
Municipal pipeline cleaning
sewer drain pipe cleaning
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Q1：What pressures and flow is suitable to sewer drain pipe cleaning?
A1：Pressure normally suggest 200bar~500bar; Flow rates suggest 50-500L/min,
pressure not need so higher, as big water flow us large pipe cleaning.
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3:What's the cleaning type for the sewer drain pipe cleaning?
A3: a: use mul-ti hole jetting nozzle, go inside the pipe itself for inner pipe cleaning
b: use rotating nozzle, rotary during water jetting, so it will be better effect.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: for road mark removal, suggest diesel engine drive will be more convenient;
also can choose Electric: Suitable for indoor use and quieter operation.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
