Home > Industrial Equipment & Components > Cleaning Machine > High Pressure Cleaner > 6-cylinder Diesel 300-1200mm Drain Pipe Cleaning Water Jetting Machine Sewer High Pressure Cleaning Machine

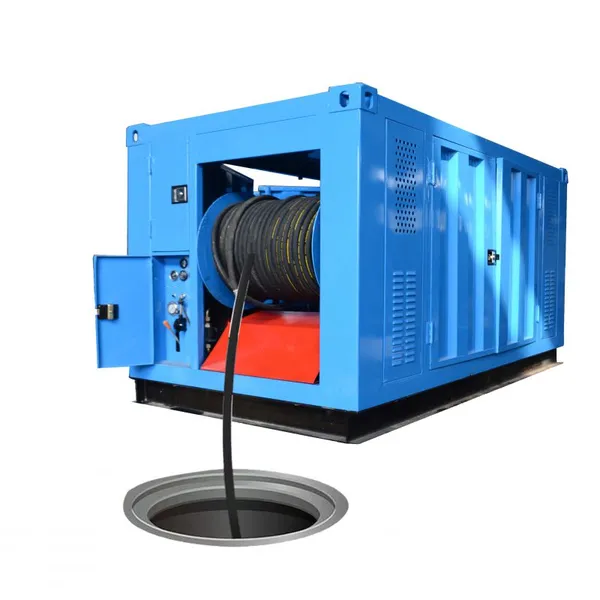

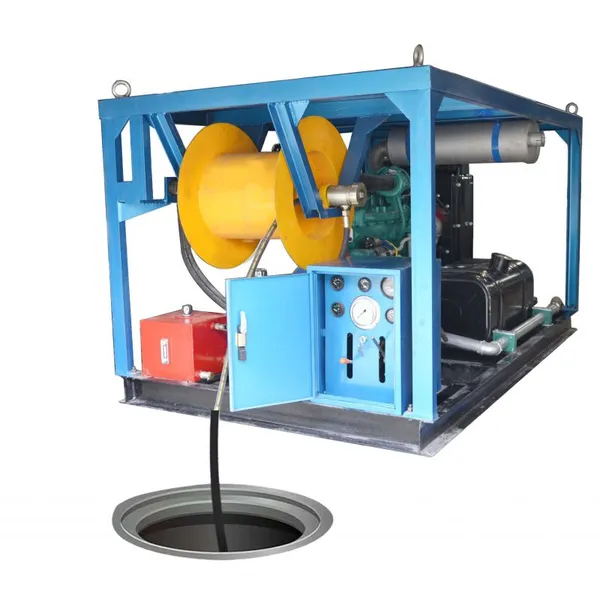

6-cylinder Diesel 300-1200mm Drain Pipe Cleaning Water Jetting Machine Sewer High Pressure Cleaning Machine
US$ 2500.00
1 - 4 Set
US$ 2000.00
≥5 Set
Key Specifications
Get Latest Price
Certification:
CE
machine type:
HIGH PRESSURE CLEANER
condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale 200bar Petrol Pressure Washer Sewer Drain Pipe Cleaner Drainage Pipeline Cleaning Machine New ConditionUS$ 2200.00 - 2800.00MOQ: 1 Piece -
Hot Sale 24hp High Pressure Gasoline Pressure Washer 200bar New Condition Petrol Water Jet for Cold Water Sewer Pipe CleanerUS$ 2200.00 - 2800.00MOQ: 1 Piece
-
Petrol Engine High Pressure Sewer Jetter New Cold Water Cleaner for Efficient Drain Pipe CleaningUS$ 2200.00 - 2800.00MOQ: 1 Piece
-
High Pressure 200bar Diesel Jet Drain Cleaning Machine 50L/min 400mm Sewer Drain Pipe Cleaner New ConditionUS$ 2200.00 - 2800.00MOQ: 1 Piece
-
High-Pressure 300mm Water Jet Sewer Cleaning Machine Electric-Gasoline Engine Drainage Pipe Cleaner Manual Use New UsedUS$ 2200.00 - 2800.00MOQ: 1 Piece
Certification
CE
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
shenyang, China
brand name
RELIABLE
feature
Non-Toxic
power source
Electric
use
sewer drain pipe cleaning machine
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
145kw
dimension(l*w*h)
280*150*165cm
warranty
1 Year
max. pressure
24Mpa
weight (kg)
2000 kg
Name
sewer drain pipe cleaning machine
Working pressure
24Mpa/240bar
Water flow
170 L/min
Diesel engine
145kw
Electric motor
90kw, 3 phase
High pressure hose
100meters
nozzle
DN40-DN80 sewer drain pipe cleaning
function
sewer drain pipe cleaning machine
machine color
canbe customized
cleaning sewer diameter
100-1200mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, Pump, Engine
Key Selling Points
Long Service Life
Marketing Type
New Product 2024
Sewer drain pipe cleaning machine
High pressure water jet cleaning machine, with large water flow 50-170L/min, pressure 24Mpa; use suitable pipe cleaning nozzle-multi hole jetting nozzle, better for sewer drain inner pipe cleaning, to unclog the blocked pipe.
Name |
sewer drain pipe cleaning machine |
Engine drive |
Diesel engine |
power |
33kw 41kw 145kw etc |
Rate pressure |
200bar -240bar-300bar |
water flow |
50L/min 85L/min 170L/min 250L/min 300L/min can be chosen |
hose reel |
automatic hydraulic hose reel |
water filter |
water inlet filter 80um |
how to choose |
according to the pipe diameter you plan to cleaning |
Model |
Rate pressure |
Water flow |
Electric power |
Diesel power |
cleaning pipe dia. |
RLB4505 |
240MPa/240bar |
170 L/min |
90kw |
145kw |
100~1500mm |
RLB2204 |
20Mpa/200bar |
85 L/min |
30kw |
41kw |
50~800mm |
RLB1304 |
20Mpa/200bar |
50 L/min |
15kw |
28HP |
50~400mm |

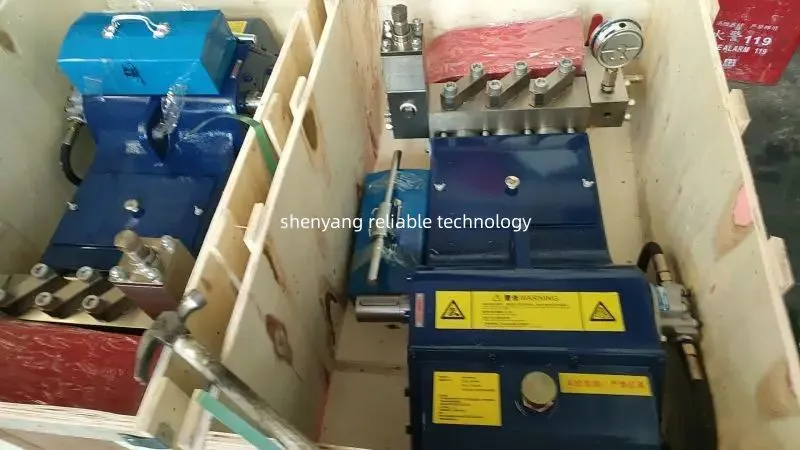

Name: High pressur plunger pump
Rate pressure: 24Mpa/240bar
water flow:170 L/min
Pump speed： 405rpm
plunger diameter:40 mm
with pressure gauge
safety valve
for diameter 100-1200mm sewer drain pipe cleaning purpose

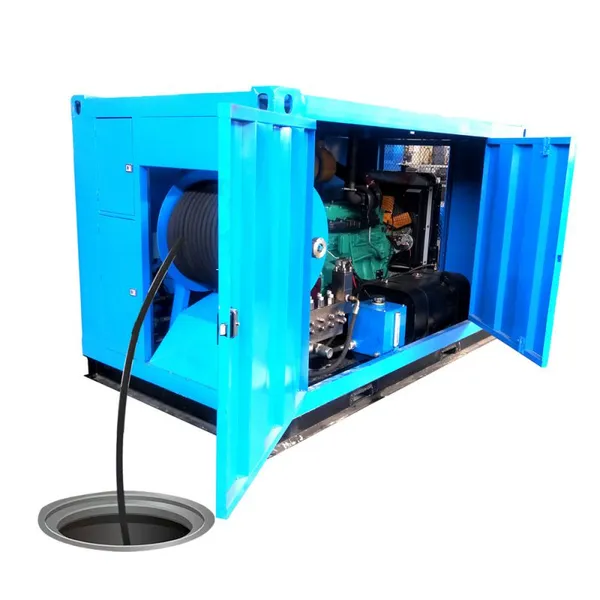

Name: diesel engine drive
Power: 41kw to 145kw, 264kw etc
Speed： 1500rpm
start type: electric start, 24v/45Ah
belt connect with high pressure pump
Name: Electric motor
power: 15kw-90kw; 3-phase, 380v/50Hz
Volt also can be customized
440v/460v/220v,etc
Speed： 1500rpm
contact with high pressure pump
customized automatic cleaning device
water spray gun cleaning
automatic cleaning device

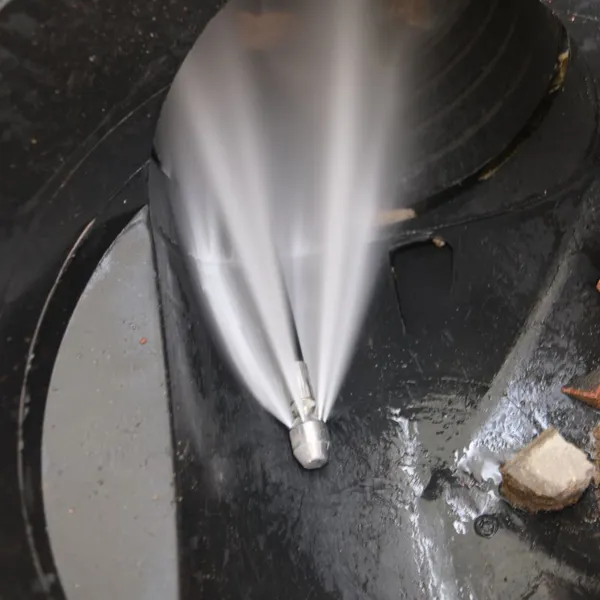

Mul-ti hole jetting nozzle
M22*1.5 thread
material: stainless steel
Size: DN20/30/40/50/80
Rotary pipe cleaning nozzle
connect: 1/2'' M22*1.5 or customized
mul-ti hole jetting, body rotary
high effect for pipe cleaning
large pipe cleaning nozzle
alumium material, light weight;
easy to be operate
for large diameter pipe cleaning
plastic pipe cleaning
Municipal pipeline cleaning
sewer drain pipe cleaning
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Q1：What pressures and flow is suitable to sewer drain pipe cleaning?
A1：Pressure normally suggest 200bar~500bar; Flow rates suggest 50-500L/min,
pressure not need so higher, as big water flow us large pipe cleaning.
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3:What's the cleaning type for the sewer drain pipe cleaning?
A3: a: use mul-ti hole jetting nozzle, go inside the pipe itself for inner pipe cleaning
b: use rotating nozzle, rotary during water jetting, so it will be better effect.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: for road mark removal, suggest diesel engine drive will be more convenient;
also can choose Electric: Suitable for indoor use and quieter operation.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
