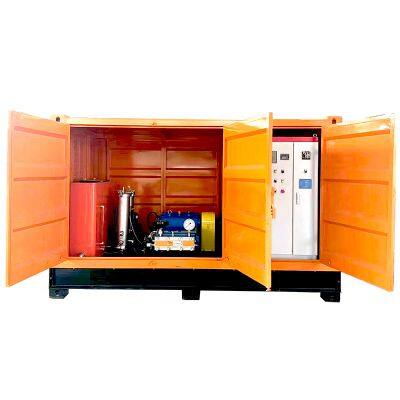

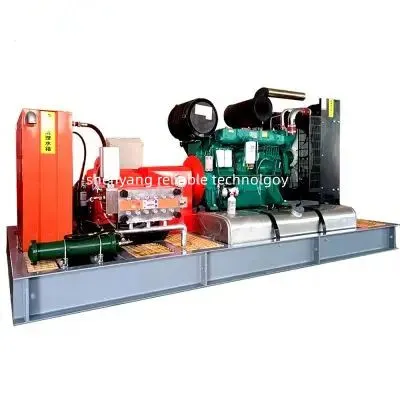

High Power 150Mpa High Pressure Concrete Crushing Concrete Crusher

FOB Price

US$ 14000.00

≥1 Sets

Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

machine type	HIGH PRESSURE CLEANER	condition	New
place of origin	shenyang, China	brand name	RELIABLE
feature	Non-Toxic	power source	Diesel
use	High pressure water jet cleaning	cleaning process	Cold Water Cleaning
cleaning type	HIGH PRESSURE CLEANER	material	Metal / Coil
Power	264kw	dimension(lwh)	260150160cm
warranty	1 Year	max. pressure	150Mpa
weight (kg)	2000 kg	Working pressure	150Mpa/22000psi
Water flow	50L/min	electric motor	power 90-160kw 3 phase
Diesel engine	264kw,6-cylinder	Start type	electric start
Delivery date	7 days	machine color	canbe customized
Machinery Test Report	Provided	Video outgoing-inspection	Provided
Warranty of core components	1 Year	Core Components	Motor, Pump, Engine
Key Selling Points	Long Service Life	Marketing Type	New Product 2024

Product Description

Model	Rate pressure	Water flow	Electric motor drive	Diesel engine drive
RLB1330	150MPa/1500bar	50 L/min	160kw	225kw
RLB1824	120Mpa/1200bar	70 L/min	160kw	225kw
RLB2230	150Mpa/1500bar	85 L/min	200kw	264kw
RLB1320	100Mpa/1000bar	50 L/min	90kw	120kw
RLB1814	70Mpa/700bar	70 L/min	90kw	120kw
RLB1510	50MPa/500bar	60 Lmin	55kw	64kw
RLB2210	50Mpa/500bar	85 L/min	90kw	120kw
RLB0610	50Mpa/500bar	22 L/min	22kw	33kw

Performance and Characteristics

The high-pressure water jet can use the water jet method to assist subsidence in the construction of hard soil layers. The high-pressure water jet guide hole is composed of a high-pressure water pump, a high-pressure water pipe, a steel pipe, and a water jet nozzle. Inject high-pressure water into the body to liquefy the surrounding soil to reduce the resistance during the sinking of the pile, and also play a certain role in lubrication, so that the pile can sink smoothly in the dense soil layer or other soil layers (general water injection The sinking is also combined with vibration, hammering, etc. to assist the sinking) In the reinforced concrete sheet pile, a water injection channel must be reserved in the middle, that is, a hole in the middle that is empty and can be used for water injection. Steel sheet piles are generally taken along the siding to secure the jet piping.

high pressure water jetting machine hydro jet blasting machine

Pressure range from 500bar to 1500bar; Max. 2800bar; has both electric motor drive and diesel engine drive.

has different model for different working function, such as surface heavy dirt cleaning, rust paint removal, industrial pipe/tank/tube cleaning, heat exchanger pipe condenser pipe cleaning, sewer drain pipe cleaning, pressure testing etc.

Overflow water spray gun

Pressure has 1500bar/2800bar

Overflow type

Contact thead: M22*1.5 & M24*1.5

material: stainless steel

High pressure rubber hose

Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc

Pressure: Max.2800bar;

material: ruber with wire winding inside

Barracuda nozzle / turbo nozzle

4-jet rotating nozzle

better for surface strong dirt cleaning

Flexible lance

Pressure 1500bar/2800bar/3035bar

Size: DN8-10-12mm;

Contact thead: M22*1.5 & M24*1.5

Length can be customized

Overflow foot control valve

Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel

industrial Pipe Cleaning nozzle

Size: DN13,24,40, etc;

7-jet rotating nozzle;

Pressure: 1500bar/2800bar

for industrial inner pipe cleaning

Q1：What pressures and flow is suitable to assist pilot hole piling?

A1：Pressure normally suggest 200-300bar; Flow rates suggest 170-600L/min, more higher water flow, more better piling effect.

Q2: Are you trading company or manufacturer?

A2：We are manufacturer here for over 10years, can OEM machines according to customized request.

Q3: How do I choose the right nozzle for my application?

A3: If for assist pilot hole piling, need to confirm the type and size of the pilot. 4# steel sheet pilot suggest 170L/min, 6# steel sheet pilot, Cement wave pile， PC pilot, suggest 320L/min. or can customized according to your request.

Q4:What type of water should be used in these machines?

A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.

Q5:What are the power options for high-pressure water jetting machines?

A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.

Q6:Can I customize a high-pressure water jetting machine for specific needs?

A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.

Q7:How do I choose suitable model?

A7:You can confirm your working purpose request, we have rich experience

Q8:How long is your delivery time?

A8:Normal 3-10 days; Customized order need to confirm with the seller.

Q9:What Certificate do you have?

A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,

Q10:Which is your shipping port?

A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.

Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?

A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
